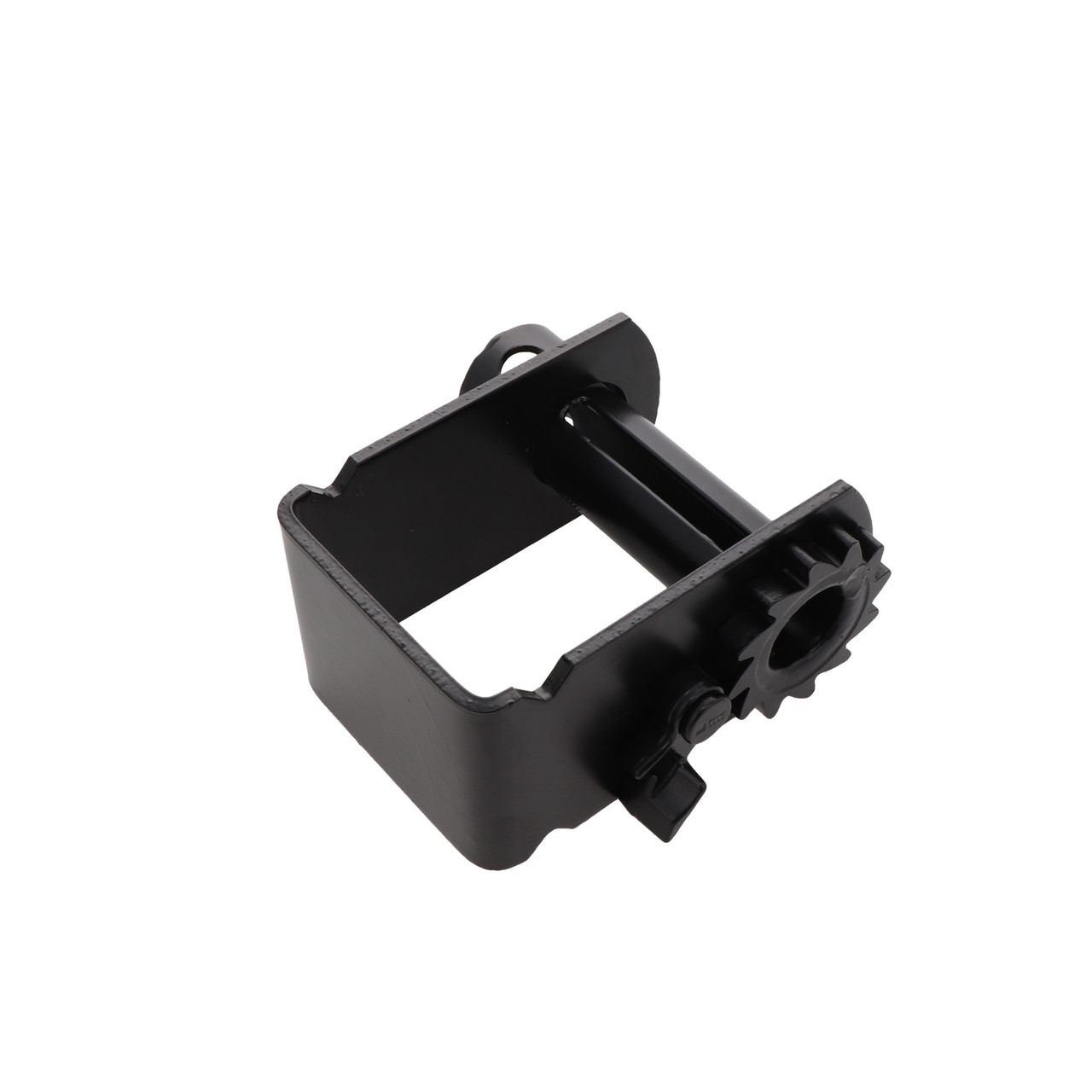

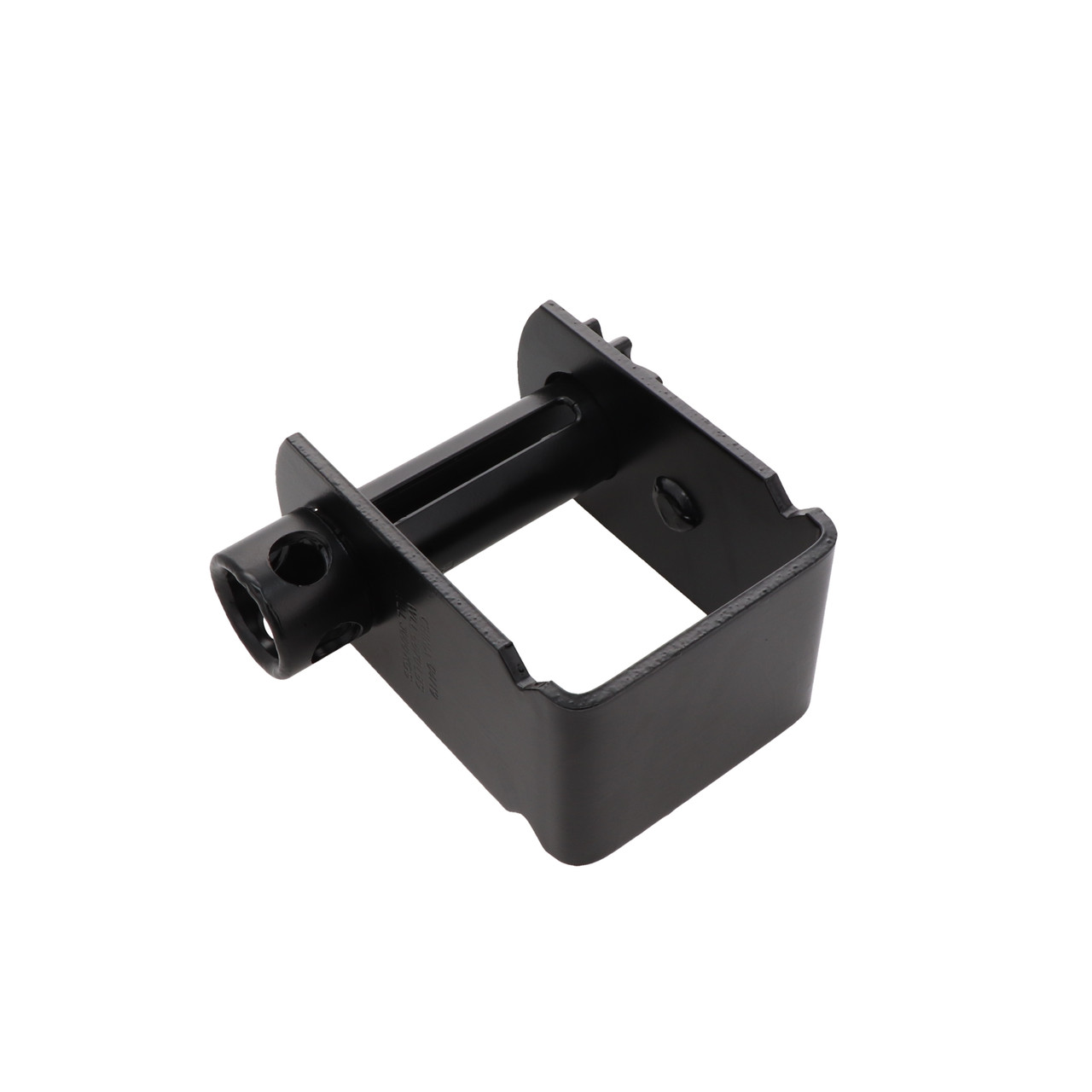

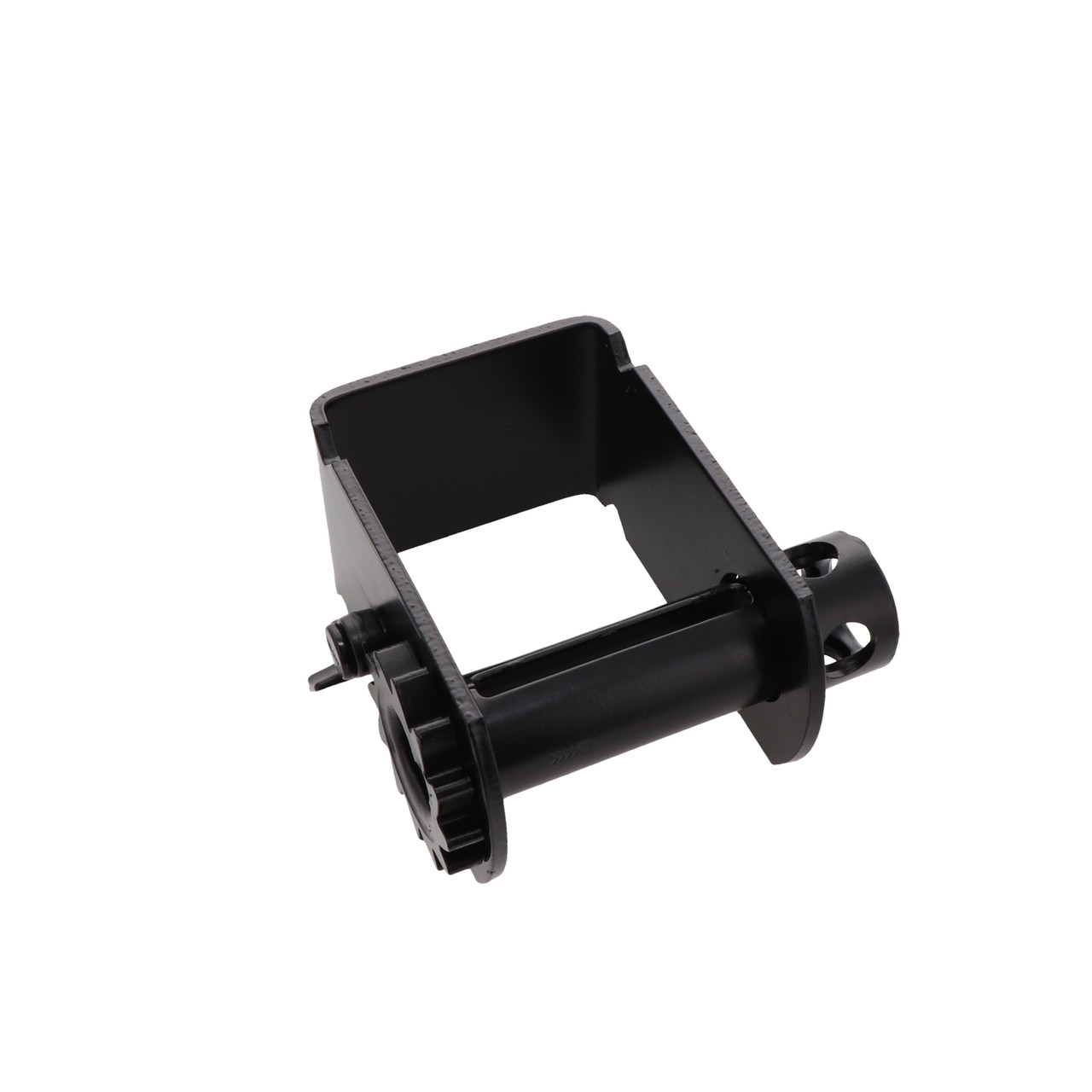

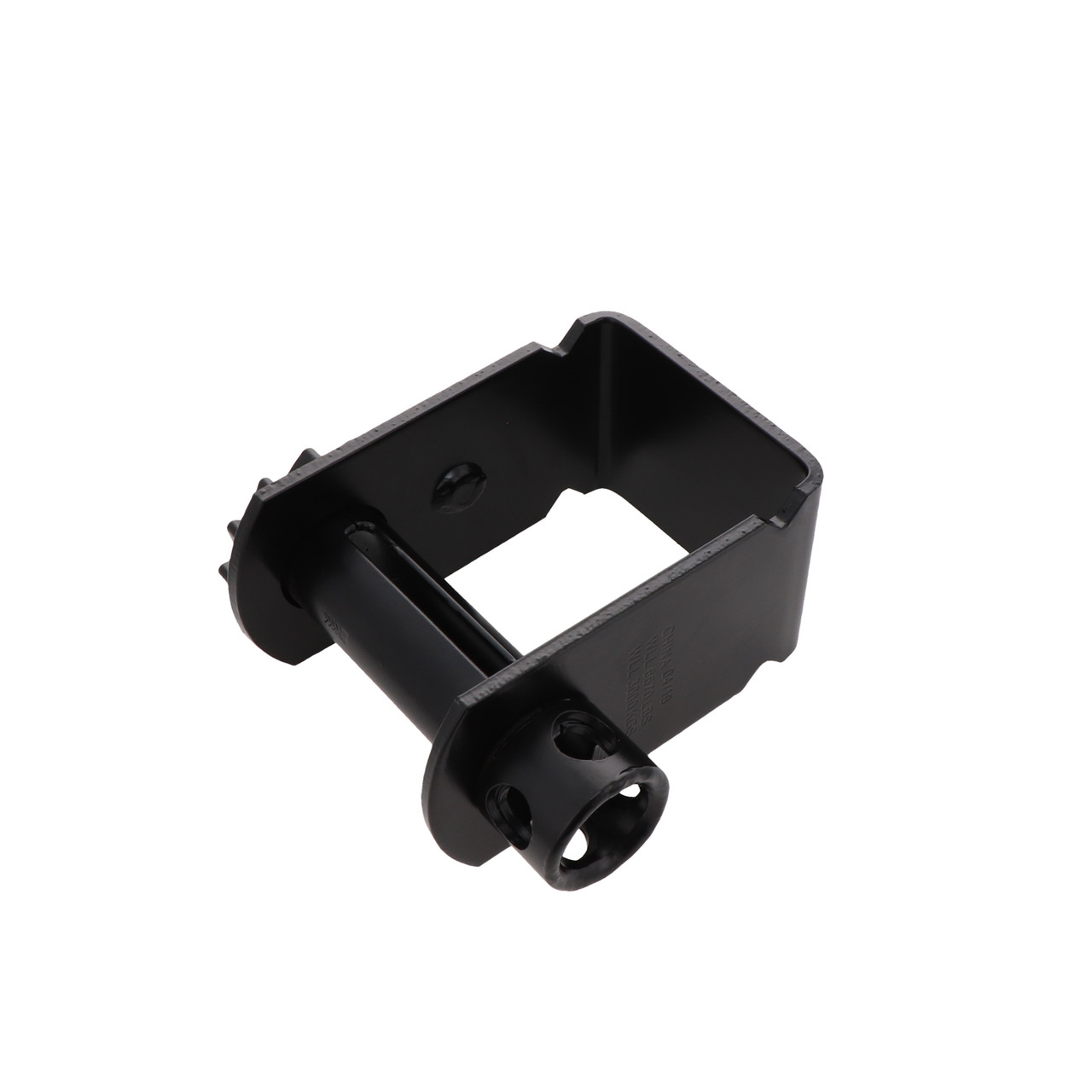

Storable Sliding C Channel Winch w/ Small Disks
Have Questions?
Fill out the form below
Kinedyne's Storable Sliding C Channel Winch with Small Disks is engineered with a working load limit of 6,670 Lbs. / 3,025 Kgs. When you use our winch, you'll know that your load will be secured.
Storable Sliding C Channel Winch w/ Small Disks
Here at Kinedyne, we know that the winch is the most vital component of the tie down assembly. Without a winch, there's no reliable or secure way to fully control your cargo. That's why we've designed our Storable Sliding C Channel Winch with Small Disks with a working load limit of 6,670 Lbs. / 3,025 Kgs. to provide you the ultimate method for securing your cargo on a flatbed trailer, rail car, or other vehicle.
This heat-treated carbon steel winch can store up to about 30 feet of our winch straps and can be used with our 6-foot steel track, our 6-foot aluminum track, and/or our 12-foot steel track. Our Storable Sliding C Channel Winch is designed to easily move in either direction on the track to give you multiple options on where you want your anchor point. Once tension is applied, it'll lock firmly in place. This Storable Sliding C Channel Winch with Small Disks is equipped with our special thumb pawl that you can easily access even if you're wearing a pair of oversized gloves. Locking or unlocking the sprocket is a cinch with this helpful "Thumb Saver" thumb pawl.
All of Kinedyne's winches are engineered to meet DOT regulations, WSTDA, CHP, Canadian 905, and North American Cargo Securement standards. In accordance to North American Regulations, the winch's frame is stamped with the country of origin, working load limit, and manufactured date. Never use a cheater bar as it may generate enough force to break a piece of cargo control equipment during installation, release, or while in transit.
Storable Sliding C Channel Winch w/ Small Disks – 5820SD Quick Specs:
- Working Load Limit: 6,670 Lbs. / 3,025 Kgs.
- Height: 7.72 Inches
- Width: 3.94 Inches
- Length: 7.68 Inches
- Weight: 10.7 Lbs. / 4.9 Kgs.
- Storage Capacity (Webbing Length): 30 Feet Approximately
- Recommended Installation Instructions: View Instruction Manual Here
