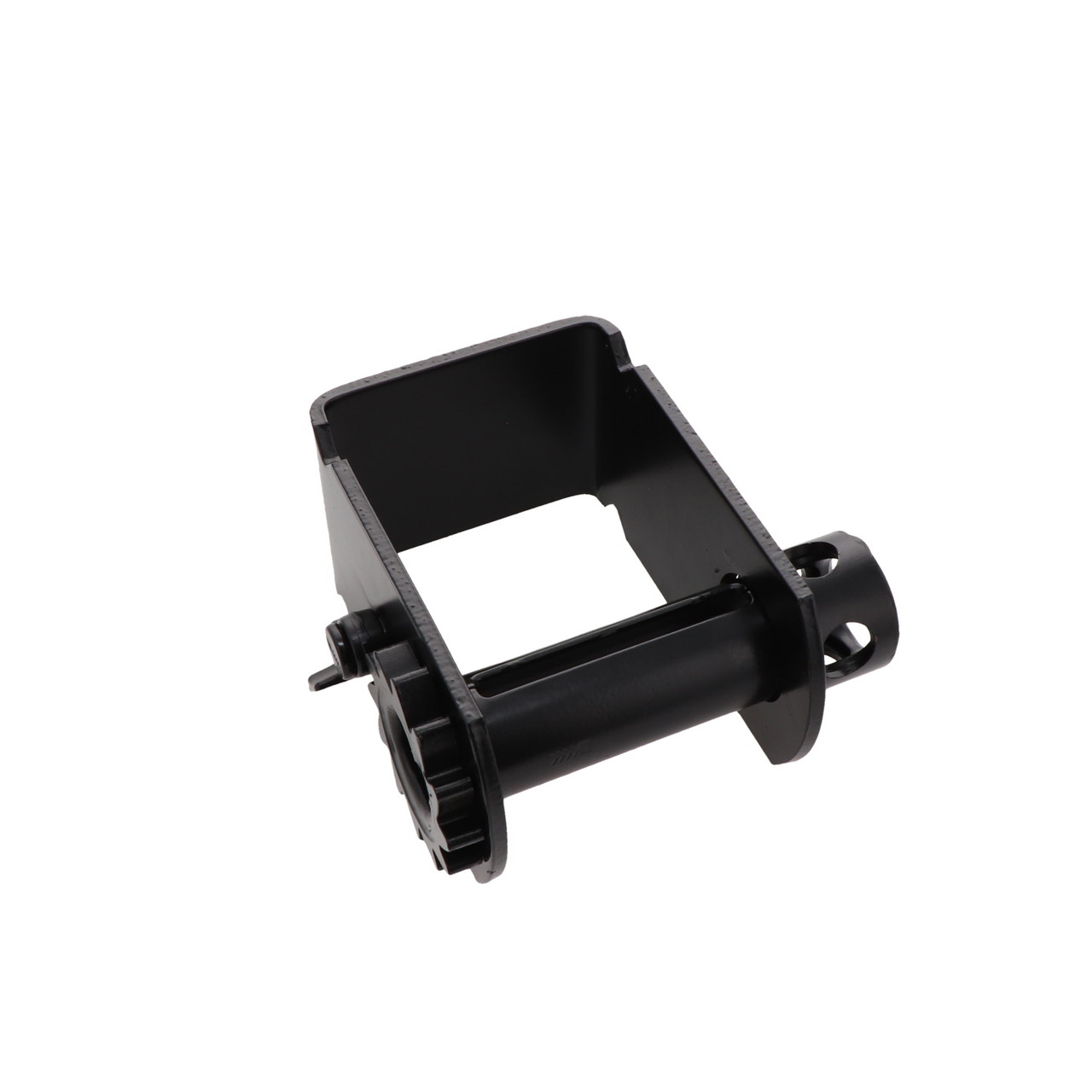

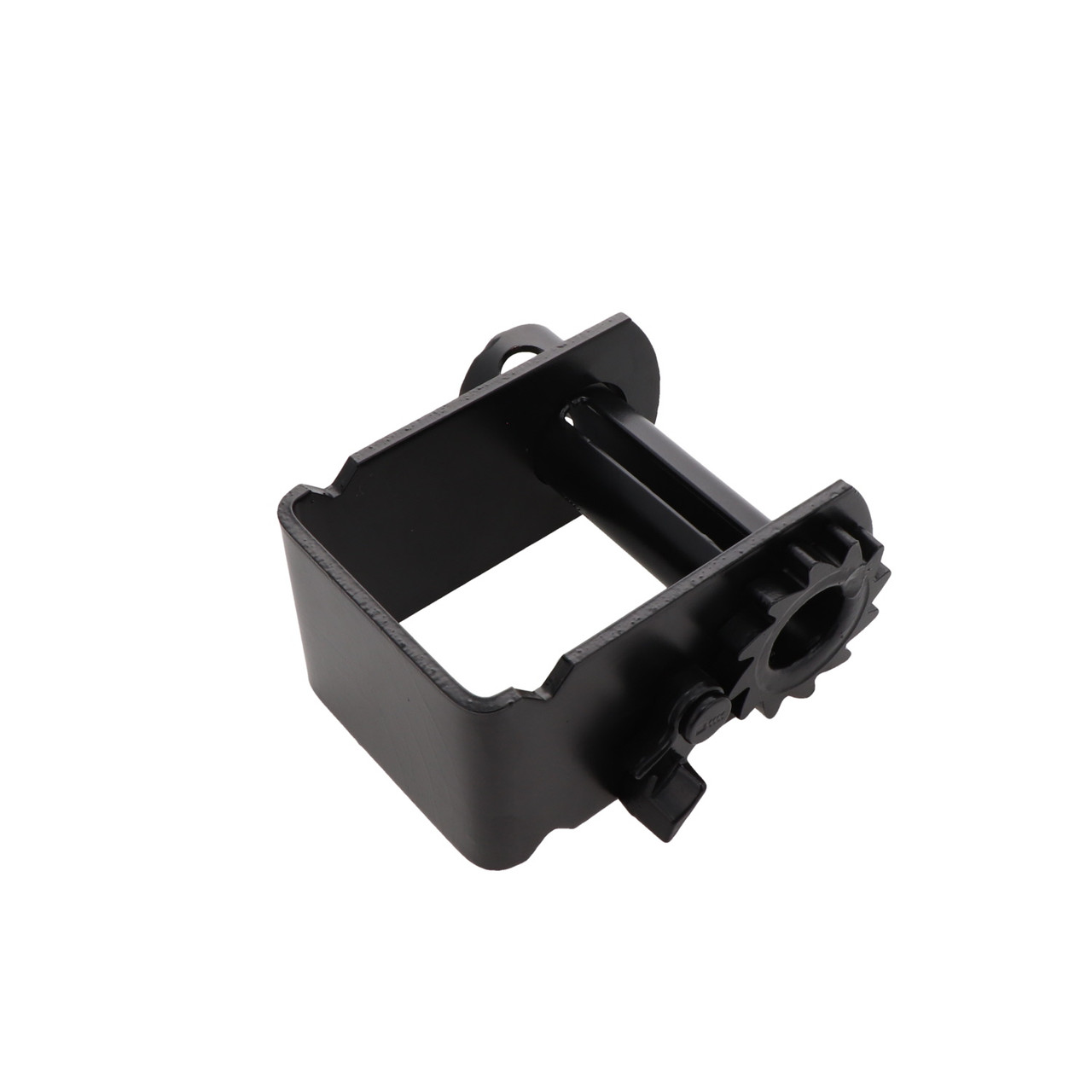

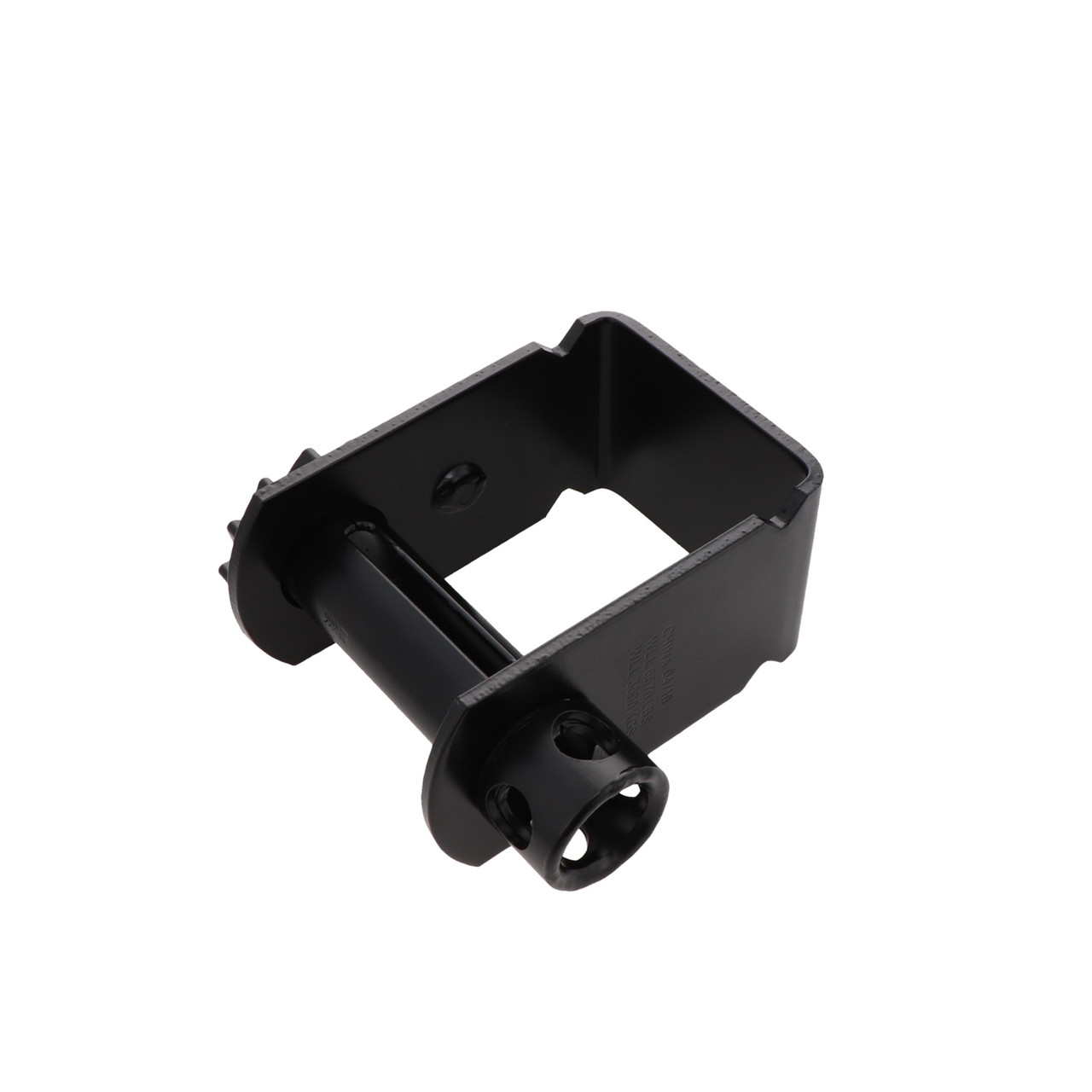

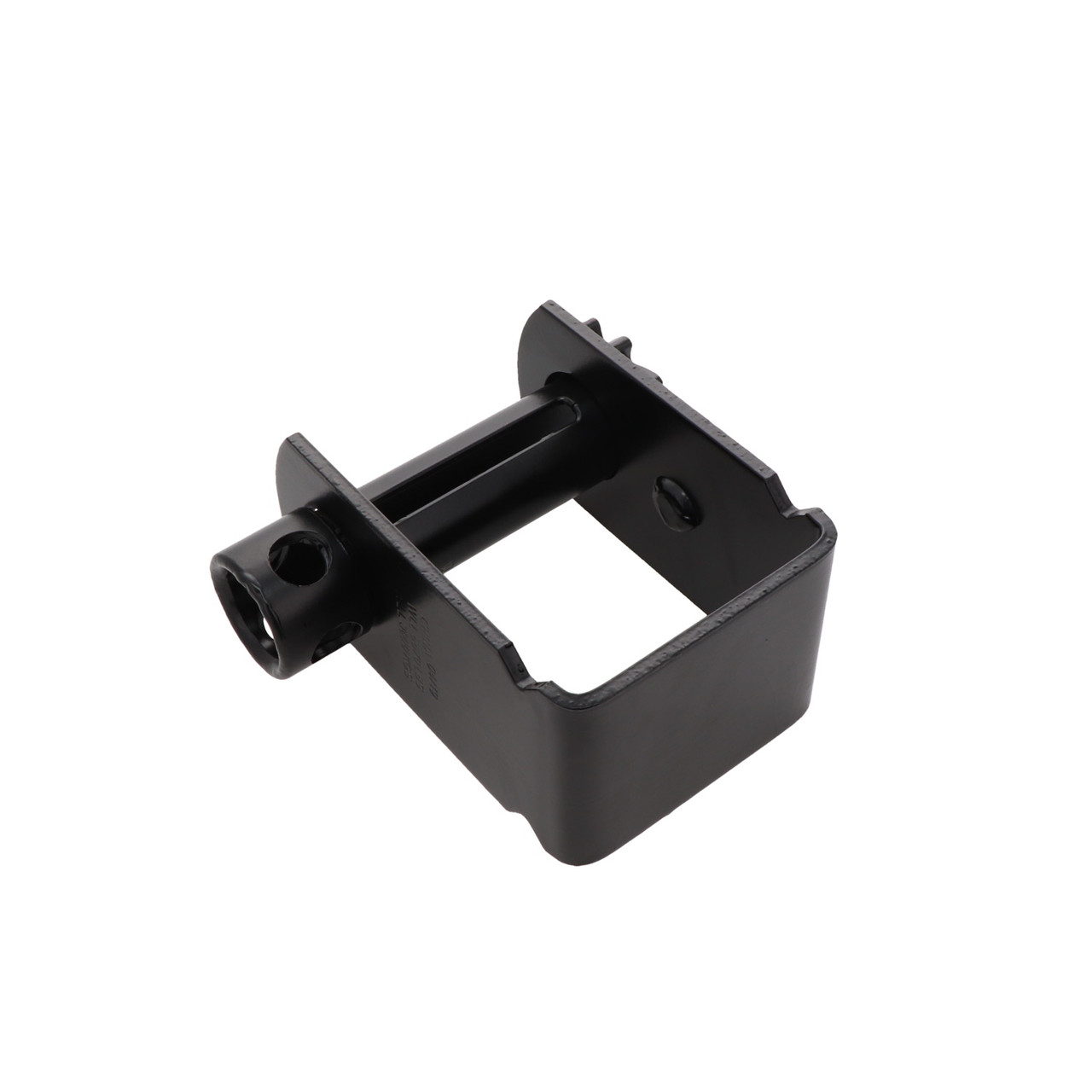

Kinedyne Storable Sliding "C" Channel Winch

Kinedyne Storable Sliding C Channel Winch

Product Code:

5820

UPC Code:

52474003049

Have Questions?

Fill out the form below

Kinedyne's Storable Sliding C Channel Winch is able to move easily and smoothly for accurate tensioning. Able to handle a working load limit of 6,670 Lbs. / 3,025 Kgs., this winch will help you reliably tie down your load.

Storable Sliding C Channel Winch

With a working load limit of 6,670 Lbs. / 3,025 Kgs., Kinedyne's Storable Sliding C Channel Winch is engineered to provide you with the ultimate strong and durable cargo securing method for nearly any flatbed trailer, rail car, or other vehicle. This winch can store up to about 30 feet of our industrial strength 2-inch, 3-inch, or 4-inch Winch Straps.

Our Storable Sliding C Channel Winch is able to move easily in either direction for positioning in the winch track. Once tension is applied to the winch strap, this winch will lock firmly in place so you'll have a reliably secured load. Combine this sliding winch with either of our 6' or 12' winch tracks, and you'll be able to have control over where exactly you want your anchor point to make your tie down job more efficient and manageable. Our winch is very easy to operate, especially with its "Thumb Saver" thumb pawl that offers easier access to locking or unlocking the sprocket.

All winches are designed to meet the requirements of the Department of Transportation, California Highway Patrol, Canadian 905, North American Cargo Securement, and Web Sling & Tie Down Association regulations and standards. To comply with North American Regulations, the working load limit, manufactured date, and country of origin are stamped on the frame. Do not load winches in excess of their working load limit.

Storable Sliding C Channel Winch – 5820 Quick Specs:

Working Load Limit: 6,670 Lbs. / 3,025 Kgs.
Height: 7.72 Inches
Width: 3.94 Inches
Length: 7.68 Inches
Weight: 10.1 Lbs. / 4.6 Kgs.
Storage Capacity (Webbing Length): 30 Feet Approximately
Recommended Installation Instructions: View Instruction Manual Here

Specifications

Country of Origin:	China
Height (inches):	7.7
Breaking Strength - When used with Webbing (kgs):	9072
Breaking Strength - When used with Webbing (lbs):	20000
Finish:	Powder Coat
Bolt-on:	False
Bottom Mount:	True
Color:	Black
PROPOSITION 65:	No
Side Mount:	False
Material:	Steel
Maximum width of strap used with (inches):	4
Length (inches):	8
Slider Type:	True
Slider Type description:	Yes - "C" Channel Winch Track - Sliding Winches and Track Combinations Provide An Efficient and Flexible Securement System Winch Moves Easily in Both Directions, But Locks Firmly in Place When Tension is Applied
Specification Met:	WSTDA (web sling tie down association)
Shipping Days:	3-5
VMRS Cargo Restraints:	055-012-012
Note for Breaking Strength (added as a warning 1):	notes-all-winches-assembly-rating
Stamped w/Working Load Limit:	Stamped on frame with Working Load Limit in Pounds and Kilograms, Country of Origin and Manufactured Date in accordance to North American Regulations
"Thumb Saver" Thumb Pawl:	True
Type of Track used with:	Kinedyne 3606 "C" Channel Winch Track, 3606-12 "C" Channel Winch Track & 3607 Aluminum "C" Channel Winch Track
Weight (kgs):	4
UPC Code:	52474003049
Weight (lbs):	8.1
Standard Thumb Pawl:	False
Storage Capacity - Webbing Length (feet):	30
Working Load Limit - When used with Webbing (kgs):	3025
Working Load Limit - When used with Webbing (lbs):	6670
Weld-On:	False
Width (inches):	3.9

Packaging

Skid - GTIN:	20052474003043
Skid - Standard Pack Quantity:	50
Skid - Unit Quantity:	250
Standard Pack - GTIN:	10052474003046
Standard Pack - Unit Quantity:	5
Unit Packaging:	Individually with Warning tag

Notices & Warnings

Warning English:	WARNING: When tightening or loosening winches, always maintain a firm grip on the winch bar. Ensure load is stable before tightening or releasing tension in a strap assembly. Never release a winch bar without checking the pawl to ensure that it is fully engaged between ratchet teeth. Releasing a winch bar without the pawl being properly engaged may cause serious injury and/or death to the user or bystanders. The use of slip resistant handle winch bar, specifically designed to tighten or loosen winches, is recommended. Kinedyne winch bars (page 18) shall be used to tension and release winch tie down assemblies. Use of any unspecified leverage increasing device, such as a cheater bar, may generate enough force to break a piece of cargo control equipment during installation, release, or while in transit. The release of energy when a piece of cargo control equipment breaks may cause serious injury or death to the user and/or bystanders. User shall stand clear of the winch bar handle during operation of the winch bar in case the winch bar slips. The tip of the winch bar shall be inserted through both holes in the end cap to prevent the winch bar from “slipping out” and overloading the tip and/or end cap.Winches shall not be loaded in excess of their working load limit. Winches shall not be used as a pulling or lifting device. A minimum of 12” of webbing shall be inserted through the slot with a minimum of two (2) and a maximum of four (4) wraps on the winch mandrel. CAUTION: Excessive wraps of webbing on the mandrel will reduce the working load limit of the winch. WARNING: Welding galvanized material will form toxic fumes. Welding shall be done with adequate ventilation.
Warning French:	AVERTISSEMENT : Seulement un personnel qualifié et instruit devrait se servir des courroies d’arrimage. Il est de la responsabilité de l’opérateur d’assurer l’utilisation du bon nombre et genre de courroie d’arrimage pour le type de cargaison étant sécurisée. Lorsque vous tendez ou relâchez un treuil, maintenez toujours une prise ferme sur la barre de treuil.Assurez-vous que la cargaison est stable avant d’arrimer ou de relâcher la tension d’une courroie d’arrimage. Ne jamais relâcher la barre de treuil sans d’abord vérifier le loquet pour vous assurer qu’il est bien engagé dans les engrenages du cliquet. Relâcher le treuil lorsque le loquet n’est pas proprement bloqué pourrait provoquer des blessures graves à l’utilisateur et/ou à un passant. L’utilisation d’une barre de treuil à poignée antidérapante, conçue spécifiquement pour tendre ou relâcher un treuil, est recommandée. Les barres de treuil Kinedyne (voir en page 18) doivent être utilisées pour tendre ou relâcher les ensembles d’arrimage. L’utilisation de quelconque outil non spécifique pour accroître l’effet de levier, comme une allonge, pourrait générer suffisamment de force pour briser une pièce d’équipement d’arrimage durant l'installation ou en route. L’énergie libérée par le bris d’une pièce d’équipement d’arrimage sous tension peut provoquer des blessures graves ou même la mort d’un passant et/ou de vous-même. L’utilisateur doit s’éloigner de la poignée de la barre de treuil durant son opération, au cas où la barre glisserait. L’extrémité de la barre de treuil doit être insérée dans les deux trous de l’embout pour éviter le glissement de la barre ou une surcharge sur l’extrémité de la barre et/ou l’embout du treuil. Les treuils ne devraient pas être chargés au-delà de leur capacité de charge. Les treuils ne doivent pas être utilisés pour tirer ou soulever une charge. Unminimum de 12’’ (30 cm) de sangle doit être inséré dans le créneau d’enroulement, et un minimum de deux (2 tours) et un maximum de quatre (4 tours) roulements doivent être effectués sur le mandrin du treuil. ATTENTION : Un enroulement excessif de sangle autour du mandrin réduit la capacité de charge du treuil. AVERTISSEMENT : Souder un matériel galvanisé forme des émanations toxiques. La soudure doit être effectuée dans un endroit suffisamment ventilé.
Warning Spanish:	ADVERTENCIA: Siempre se debe sujetar firmemente la barra tensora, al apretar o aflojar el malacate.Asegúrese de que la carga sea estable antes de apretar o liberar la tensión en un conjunto de correa. Nunca se debe liberar una barra tensora para malacates sin antes revisar que la traba de seguridad esté completamente engranada con el piñon dentado, ya que esto pudiera causar serios daños al operario o a cualquier persona alrededor. Se recomienda el uso de barras tensoras con mango antideslizantes, diseñadas específicamente para apretar o aflojar malacates. Para estos ensamblajes de amarre, debe utilizarse las barras tensoras para malacates de Kinedyne (pág. 18). El uso de cualquier dispositivo de apalancamiento no especificado, tal como una barra de extensión, pudiera generar la fuerza suficiente para romper alguna pieza del equipo de control de carga, durante la instalación, liberación omientras está en tránsito pudiendo liberar tal energía que cause serias lesiones e incluso la muerte, al operario o a cualquier persona alrededor. Todo operario, debe mantenerse alejado de la manija de la barra tensora para malacates durante su operación, en caso de que esta resbale. La punta de la barra tensora para malacates debe insertarse en ambos orificios del cabezal del mandril para prevenir el deslizamiento de la barra y la sobrecarga en su punta o el cabezal del mandril. Los malacates no deben sobrecargarse para no exceder su carga límite de trabajo. Los malacates no deben utilizarse como dispositivos de tracción o elevación. Un mínimo de 12¨ de correa debe ser pasadas a través de la ranura del mandril, con un mínimo de dos (2) y unmáximo de cuatro (4) vueltas sobre este. PRECAUCIÓN: El enrollado excesivo de la correa en el eje mandril, reduce la carga límite de trabajo del malacate. ADVERTENCIA: Soldar material galvanizado producirá humos tóxicos. La soldadura debe realizarse con ventilación adecuada.
