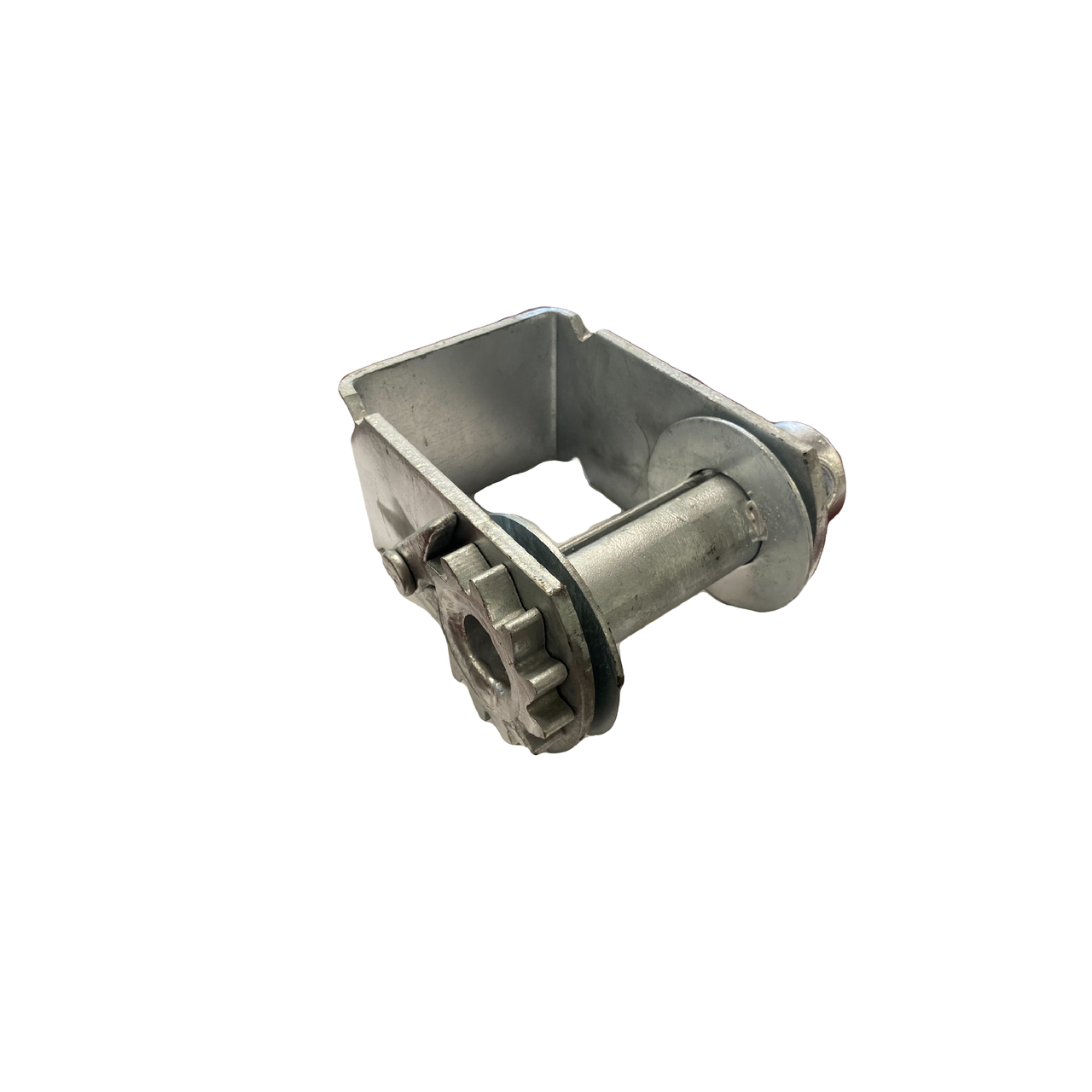

Kinedyne Storable Galvanized Sliding C Channel Winch w/ Small Disks

Storable Galvanized Sliding C Channel Winch w/ Small Disks

When you combine Kinedyne's galvanized Storable Sliding C Channel Winch with Small Disks with any of our winch tracks, you're given the flexibility to choose exactly where you want your tie down point to be. You're no longer secluded to a single anchor point when you secure your load. Now you can easily slide this winch with a working load limit of 6,670 Lbs. / 3,025 Kgs. in either direction down your vehicle's side channel for easier positioning.

This handy heat-treated carbon steel winch can store up to about 30 feet of our 2-inch, 3-inch, and 4-inch wide winch straps and has been coated in a galvanized finish to give it that extra protection against corrosion. The Storable Sliding C Channel Winch with Small Disks is produced as a right hand model.

Remember, when installing the winch, make sure that you can see the pawl and make sure that the winch is positioned properly so that the pawl drops between the ratchet teeth by gravity. Our Galvanized Storable Sliding C Channel Winch with Small Disks is specially equipped with our "Thumb Saver" thumb pawl feature. This handy extension makes it easier for you to access the sprocket, opening and closing it easily even if you're wearing gloves.

Kinedyne winches meet WSTDA, CHP, DOT, Canadian 905, and North American Cargo Securement regulations and standards. The manufactured date, working load limit, and country of origin on the winch are stamped on the frame. The winch shall not be located between the tire and the bed of the vehicle as this creates a potentially hazardous condition.

Storable Galvanized Sliding C Channel Winch w/ Small Disks – 5820SDG Quick Specs:

• Working Load Limit: 6,670 Lbs. / 3,025 Kgs.
• Height: 7.72 Inches
• Width: 3.94 Inches
• Length: 7.68 Inches
• Weight: 10.7 Lbs. / 4.9 Kgs.
• Storage Capacity (Webbing Length): 30 Feet Approximately
• Recommended Installation Instructions: View Instruction Manual Here
