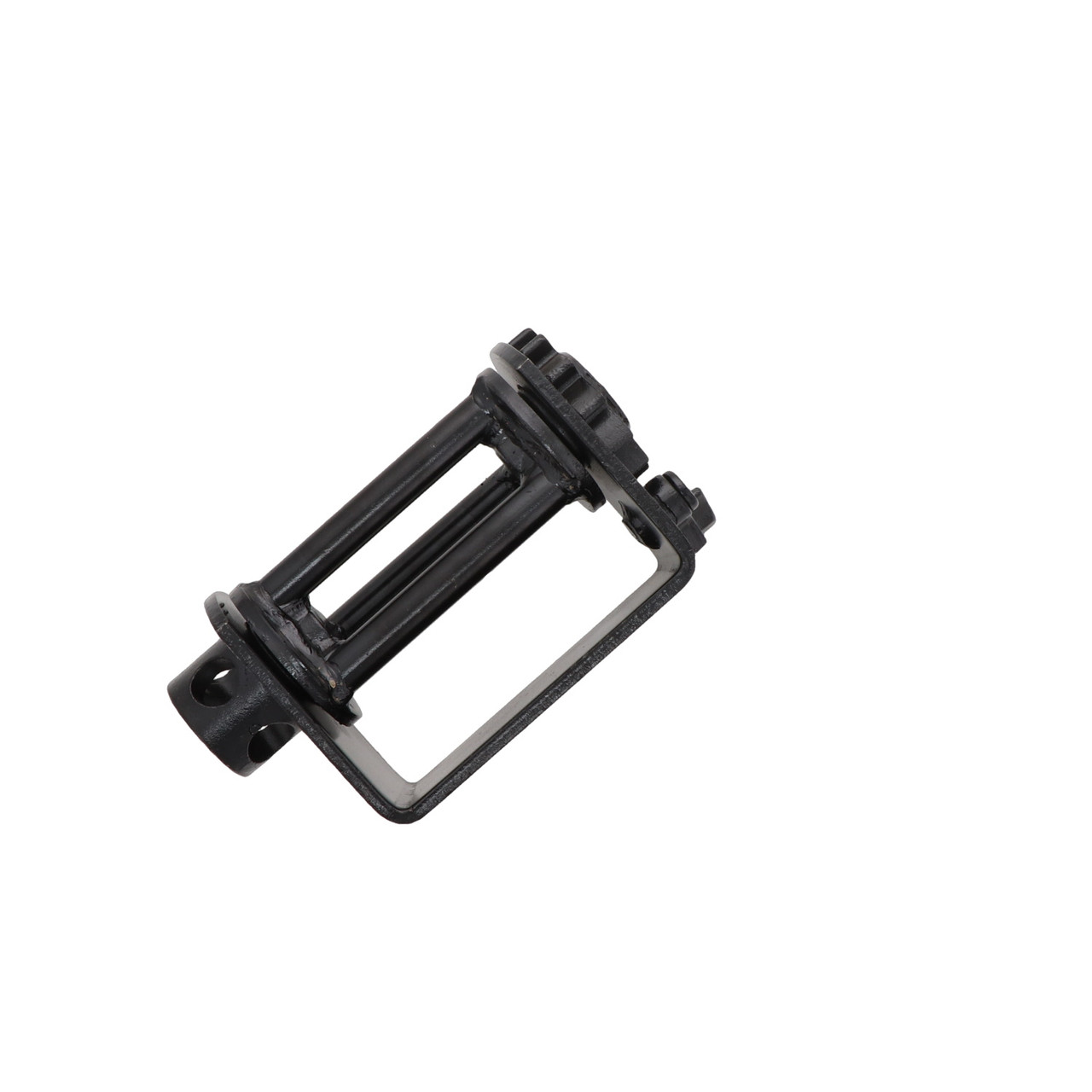

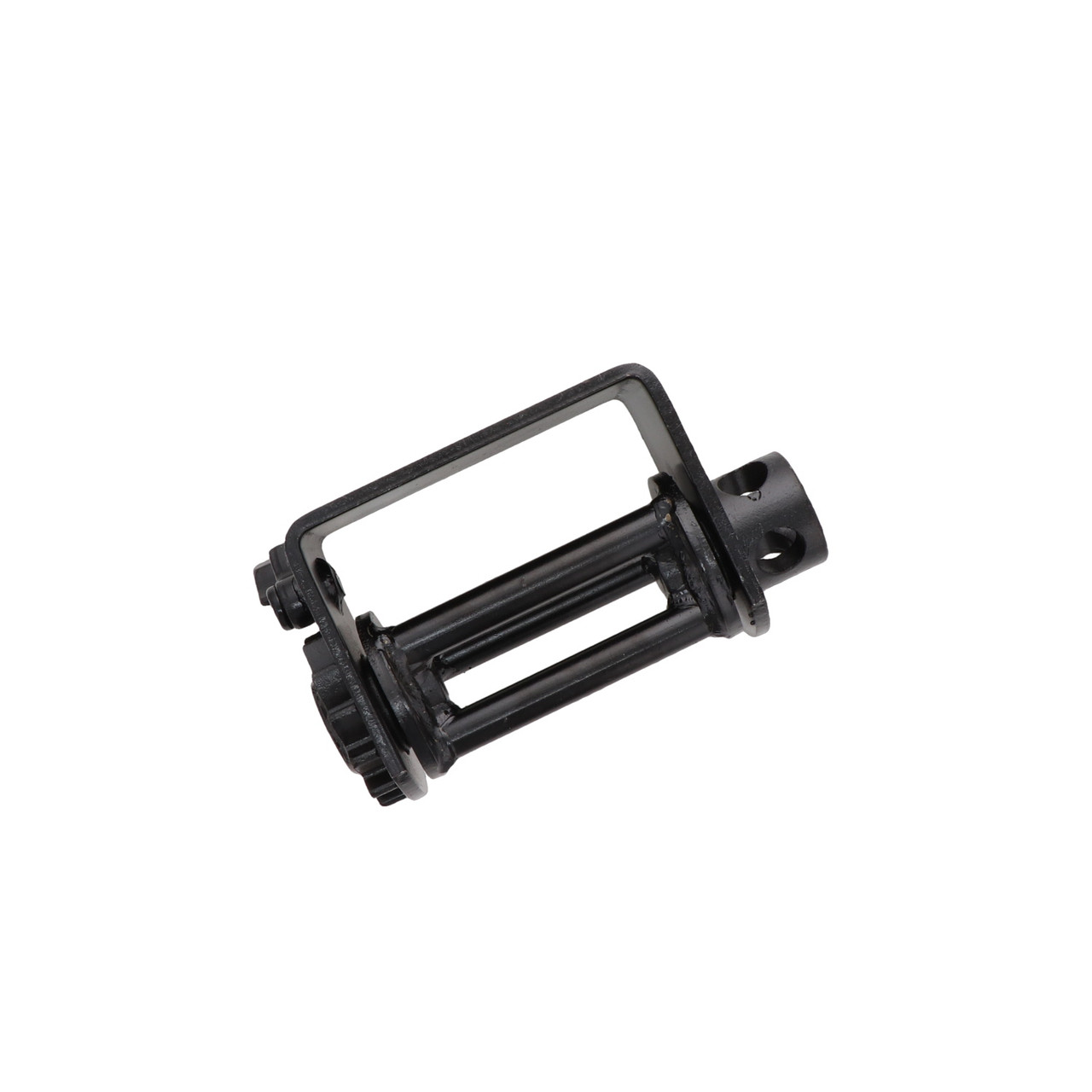

Kinedyne Standard Weld-On 3-Bar Winch

Standard Weld-On 3-Bar Winch

Need to secure your load while it's snowing outside? To make the job easier in such wintery conditions, you'll need the industrial strength of Kinedyne's Standard Profile Weld-On 3-Bar Winch, which has an impressive working load limit of 5,000 Lbs. / 2,270 Kgs. so that it can help you out with the heavy-duty jobs. Thanks to the 3-bar design of this winch, you'll be able to feed the Winch Strap through the slots quickly and easily even if there's some ice built up along the frame of the winch.

Cold weather means that you're more than likely wearing gloves while working outside. Such bulky gloves could prove troublesome with other types of winches, but not Kinedyne's thanks to our special thumb pawl. This feature has an extension that makes it easier to open or close the lock holding the Winch Strap in place even if you're wearing gloves so that you don't have to take them off in freezing temperatures.

All of Kinedyne's winches are engineered in compliance with the standards and regulations of the California Highway Patrol, Canadian 905, U.S. Department of Transportation, Web Sling & Tie Down Association, and North American Cargo Securement. The winches are stamped in accordance to North American Regulations with the working load limit, country of origin, and the manufactured date.

Standard Weld-On 3-Bar Winch – 14006 Quick Specs:

• Working Load Limit: 5,000 Lbs. / 2,270 Kgs.
• Height: 5.5 Inches
• Width: 4 Inches
• Length: 10.12 Inches
• Weight: 6 Lbs. / 2.7 Kgs.
• Storage Capacity (Webbing Length): 20 Feet Approximately
• Recommended Installation Instructions: View Instruction Manual Here
