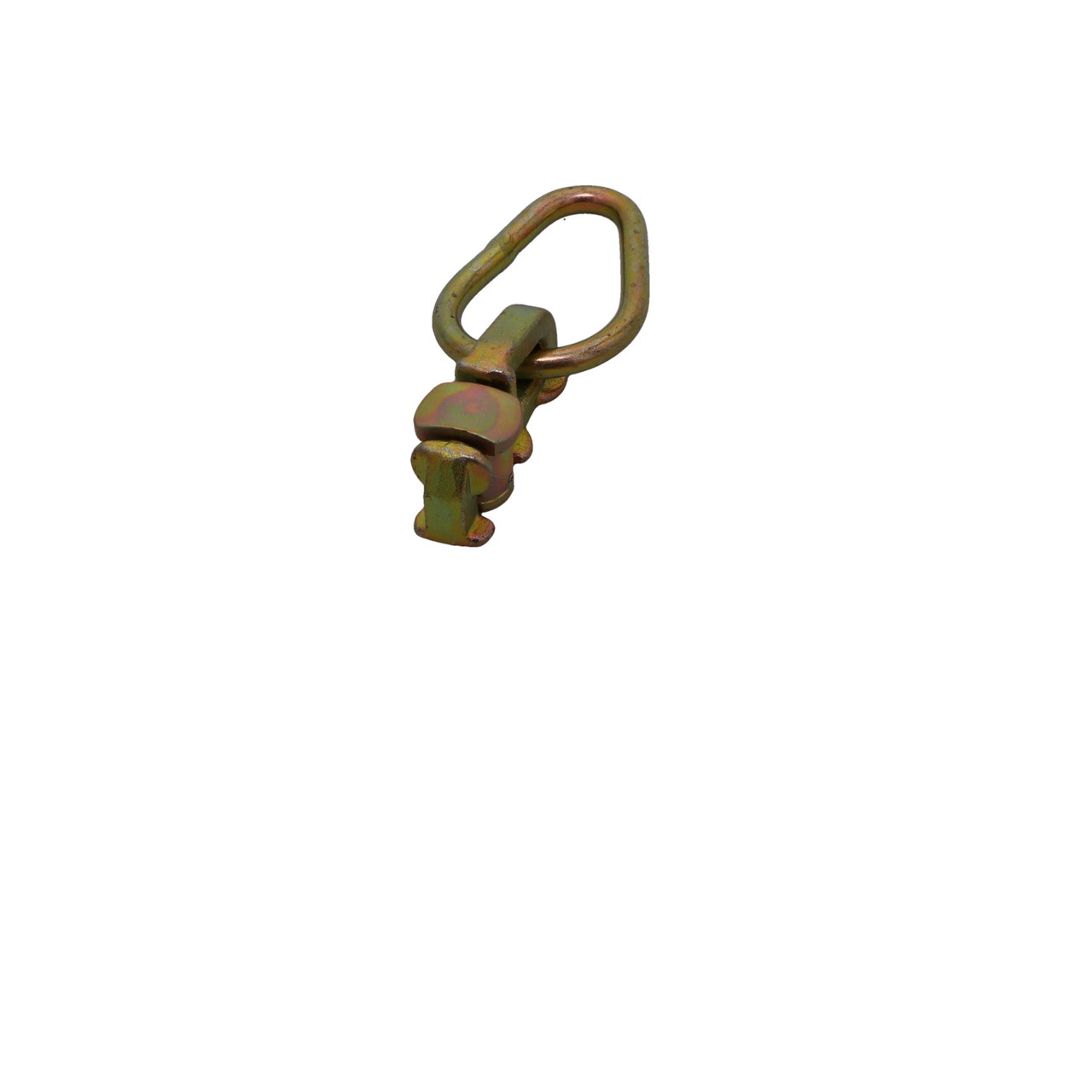

Kinedyne Series L Heavy-Duty Triple Stud Securement Point Fitting w/ Pear Ring

Series L Heavy-Duty Triple Stud Securement Point Fitting w/ Pear Ring

We designed our Series L Heavy-Duty Triple Stud Securement Point Fitting with a wide Pear Shape Ring that can be used with a wide variety of hooks and other end fittings, giving you full control over how you want to tie down your important cargo. Manufactured from heat-treated carbon steel with strength in mind, this Securement Point Fitting is able to handle the heavy-duty tie down jobs with a working load limit of 2,000 Lbs. / 910 Kgs. at both 0 degrees and 45 degrees and a working load limit of 1,670 Kgs. / 757 Kgs. at 90 degrees, making it the ideal attachment point for your cargo. Our tie down point is coated in a zinc plated finish to enhance its durability as well.

Series L Heavy-Duty Triple Stud Securement Point Fitting w/ Pear Ring – 32507 Quick Specs: 

• 0 Degree Working Load Limit: 2,000 Lbs. / 910 Kgs.
• 45 Degree Working Load Limit: 2,000 Lbs. / 910 Kgs.
• 90 Degree Working Load Limit: 1,670 Lbs. / 757 Kgs.
• Series Type: Series L Fitting
• Overall Height: 3.36 Inches
• Overall Width: 2.06 Inches
• Overall Length: 4.90 Inches
• Type of Ring: Pear Shape Ring Standard
• Height of Ring: 2.3 Inches
• Thickness of Ring: 0.25 Inch
• Length of Ring: 2.06 Inches
• Weight: 0.34 Lbs. / 0.15 Kgs.
