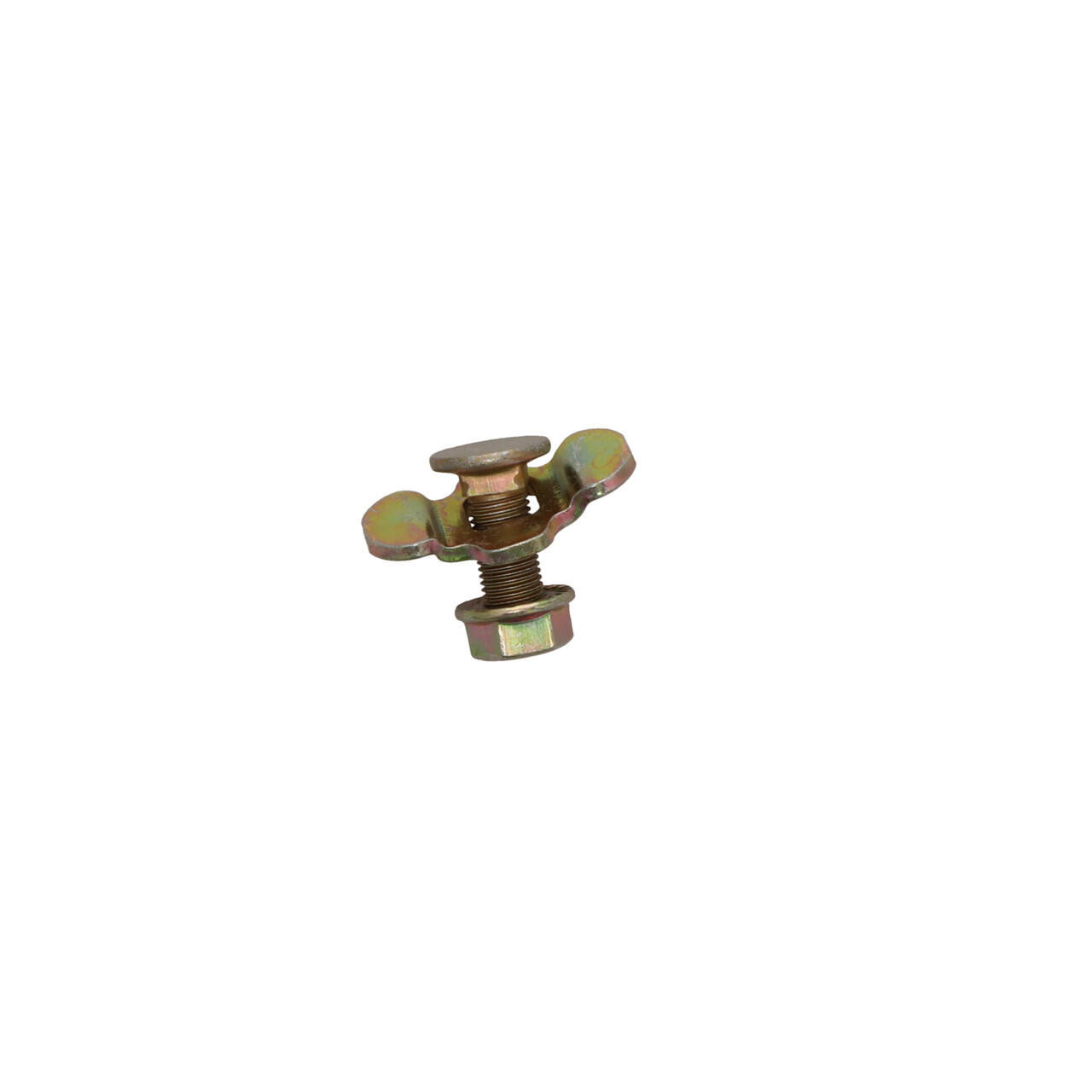

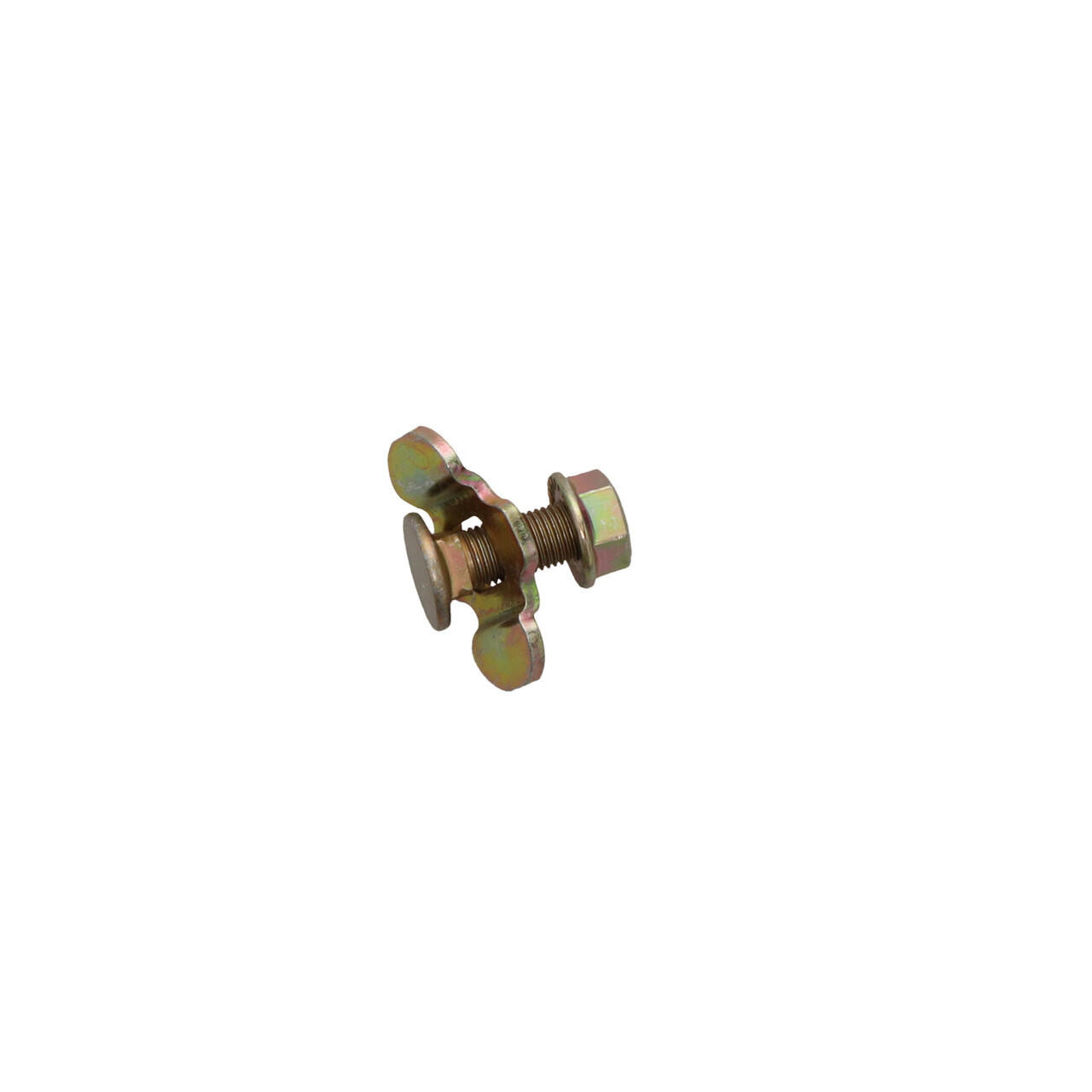

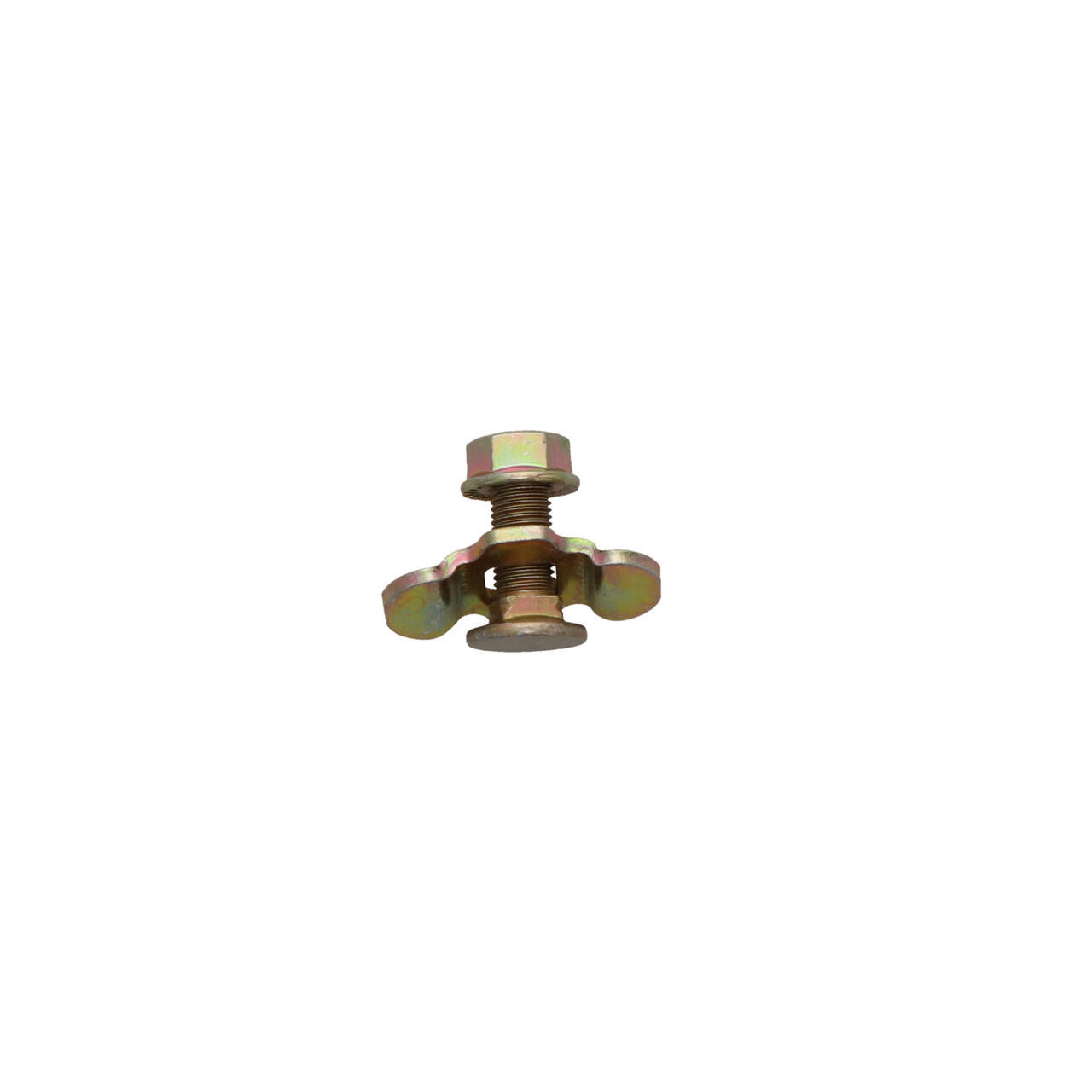

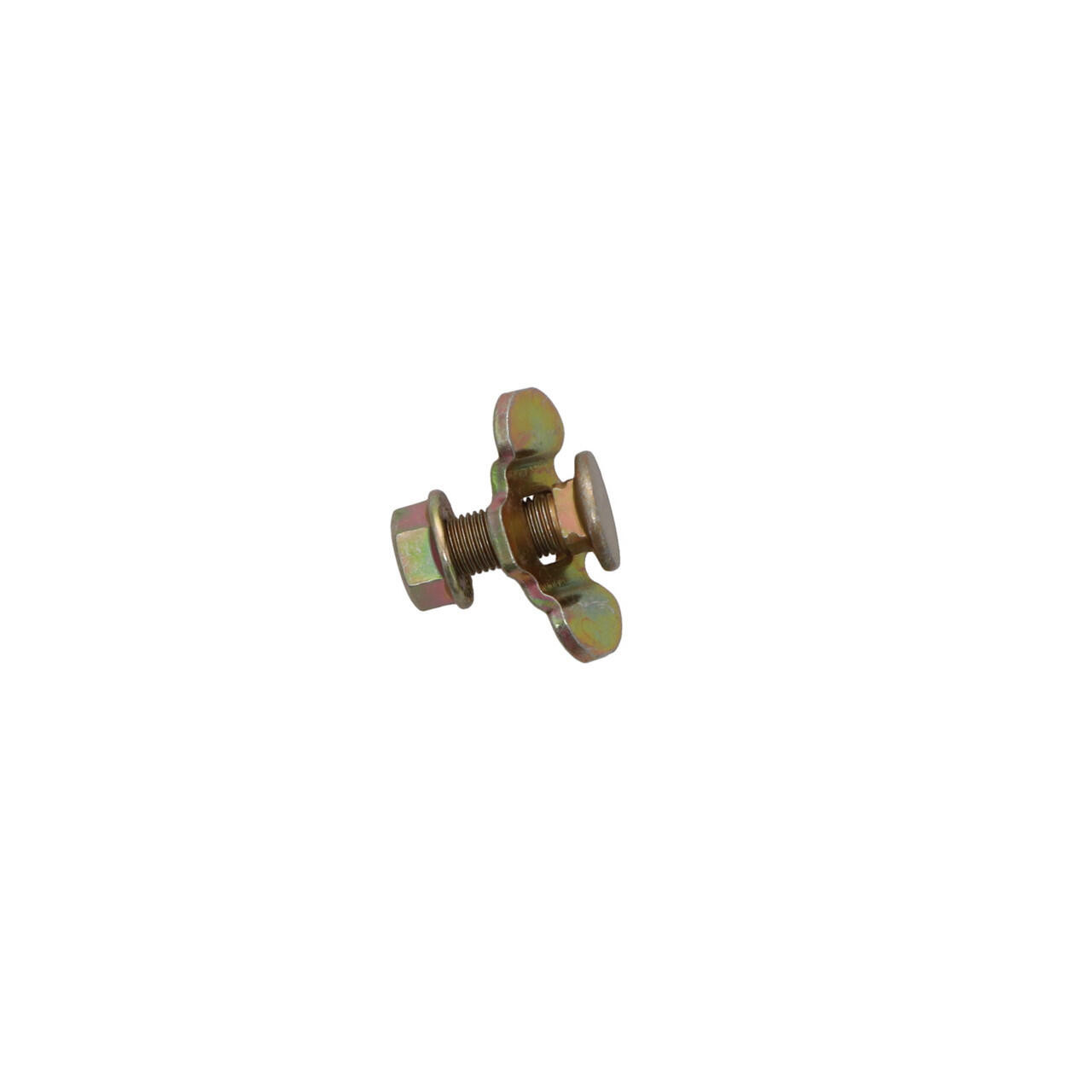

Kinedyne Series L Single Securement Point Fitting w/ Stud Nut

Series L Single Securement Point Fitting w/ Stud Nut

Product Code:

FE200744

UPC Code:

52474003926

Have Questions?

Fill out the form below

You need the kind of versatility our Series L Single Securement Point Fitting with Stud Nut offers when it comes to reliable and secure tie down job.

Series L Single Securement Point Fitting w/ Stud Nut

If you're looking for extra reliability for your heavy-duty tie down jobs, then you've found it with Kinedyne's Series L Single Securement Point Fitting with Stud Nut with a working load limit of 1,670 Lbs. / 757 Kgs. Our heat-treated carbon steel Stud Nut Securement Point Fitting offers quick and easy insertion. Simply stick the screw into one of the holes on the Series L Track and slide it into the position where you need a reliable attachment point. Thanks to this kind of versatility, you'll be able to have a secure and reliable tie down point anywhere you need on your Series L Track.

Series L Single Securement Point Fitting w/ Stud Nut – FE200744 Quick Specs:

0 Degree Working Load Limit: 1,670 Lbs. / 757 Kgs.
Series Type: Series L Fitting
Overall Height: 0.9 Inch
Overall Width: 1 Inch
Overall Length: 1.66 Inches
Type of Stud Bolt: Standard Stud Bolt
Height of Bolt: 0.90 Inch
Thickness of Bolt: 3/8 Inch
Type of Stud Nut: Standard Stud Nut
Width of Stud Nut: 0.72 Inch
Weight: 0.10 Lbs. / 0.05 Kgs.

Specifications

0° Breaking Strength (kgs):	2272
0° Breaking Strength (lbs):	5010
0° Working Load Limit (kgs):	757
0° Working Load Limit (lbs):	1670
Country of Origin:	China
Height of Bolt (inches):	0.9
Finish:	Zinc Plated
Hole Included:	False
Color:	Silver
PROPOSITION 65:	No
Material:	Heat Treated Carbon Steel
Kinedyne Anchoring Kits used with:	15522, 15523, 32620
Kinedyne Track used with:	43001, 43002, 43002-060, 2019, 2019-060, 43003, 43004, 15547, 15548, FE702-01, FE702-01-060, FE725-01, 2025, 2025-060
Overall Height (inches):	0.9
Overall Length (inches):	1.6
Overall Width (inches):	1
Series E or Series A Fitting:	False
Series L Fitting:	True
Series Type:	Series L Fitting
Specification Met:	WSTDA-T-1 (Web Sling Tie-Down Association-T-1)
Shipping Days:	3-5
Width of Stud Nut (inches):	0.72
Note for Breaking Strength (added as a warning 1):	notes-all-securement-point-assembly-rating
Thickness of Bolt (inches):	0.37
Ring Included:	False
Type of Track used with:	E or A Logistic Track
Weight (kgs):	4
UPC Code:	52474003926
Weight (lbs):	0.1
Stud Bolt Included:	True
Stud Nut Included:	True

Packaging

Skid - GTIN:	20052474003920
Skid - Standard Pack Quantity:	22
Skid - Unit Quantity:	5500
Standard Pack - GTIN:	10052474003923
Standard Pack - Unit Quantity:	250
Unit Packaging:	Individual

Notices & Warnings

Warning English:	WARNING: Series E,A or F fittings are designed for use with Kinedyne Logistic Track. Load ratings may be reduced when used with other tracks or if the track fitting is not positively engaged. Your cargo control system is only as strong as its weakest link. All ratings for series E and A fittings are based on use with Kinedyne 11 gauge track. NOTE: Several types of Kinedyne track are not made with 11 gauge steel, contact Customer Service for specifications by part number.
Warning French:	AVERTISSEMENT: Les raccords de série E,A ou F sont conçus pour être utilisés avec les rails Logistique de Kinedyne. La capacité de charge peut être réduite lorsque ces raccords sont utilisés avec d’autres rails ou lorsque le raccord n’est complètement verrouillé. Votre système d’arrimage est aussi fort que son maillon le plus faible. Les cotes de classement des raccords de série E etA sont basées sur une utilisation avec les rails Kinedyne de calibre 11. NOTE: Plusieurs types de rail Kinedyne ne sont pas faits d’acier de calibre 11, communiquez avec le service à la clientèle pour les spécifications selon le numéro de pièce.
Warning Spanish:	ADVERTENCIA: Los accesorios de las series E, A y F, están diseñados para utilizarse específicamente con el riel logístico de Kinedyne. Los valores de carga pueden reducirse al utilizar otros rieles o bien, si los accesorios de los rieles no están correctamente enganchados. Su sistema de control de carga es tan fuerte solo como su eslabón más débil. Todos los valores de los accesorios de serie E y A, están basados en su uso con el riel de calibre 11 de Kinedyne. NOTA: Kinedyne cuenta con varios tipos de rieles que no están hechos de acero de calibre 11, por lo que es recomendable contactar a nuestro servicio al cliente para obtener las especificaciones en base al código del producto.
