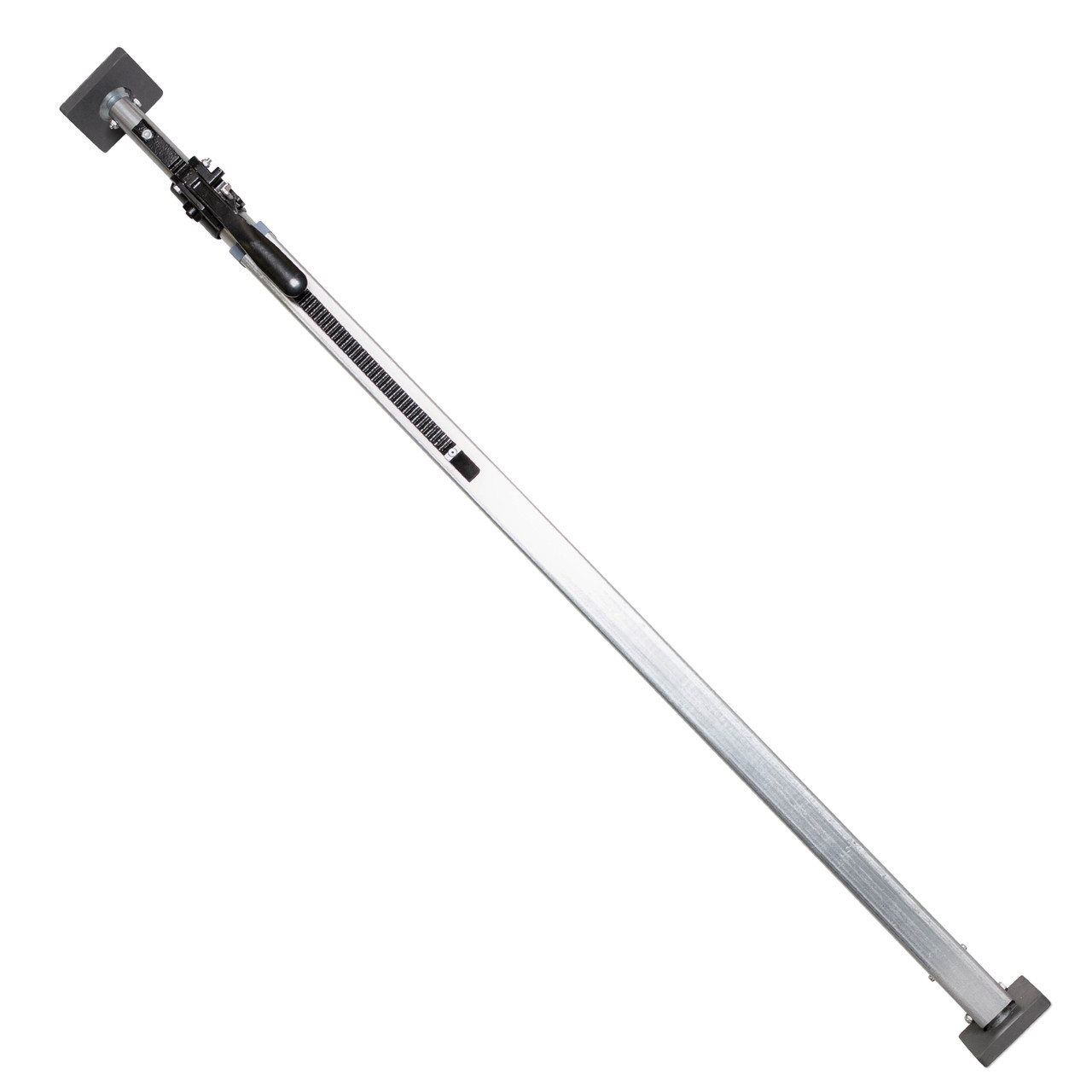

Kinedyne 54" - 107" 3 Position Retract-A-Bar

Product Code:

80131

UPC Code:

52474020794

Have Questions?

Fill out the form below

Kinedyne's Retract-A-Bar is designed with three adjustment positions for multiple applications and usages. It can adjust from 54" to 68", from 68" to 82", and from 92" to 107".

54-Inch to 107-Inch Retract-A-Bar

For a universal, all-purpose Shoring Bar, Kinedyne is offering our effectively strong and durable Retract-A-Bar. We've designed this Bar with three adjustment positions for a variety of load configurations. Our Bar can retract from 107 inches to 54 inches in three settings: from 54 inches to 68 inches; from 68 inches to 82 inches; and from 92 inches to 107 inches. This makes our Retract-A-Bar the ideal securement method for operators who are constantly switching between trailers of different sizes.

Once pressure is applied, the Retract-A-Bar firmly fixes to your trailer's walls with its non-scruff rubber foot to provide a securing support for your cargo. While keeping a strong hold over your load, it also works as a convenient divider that separates your different cargo, making it easier to load, unload, and find whatever it is you need. This also opens more space in the back, allowing you to secure even more cargo for your trips.

Our Retract-A-Bar is constructed from heavy-duty high strength steel with a rust-resistant galvanized finish to enhance its durability and has a load lock that is quite easy to operate. This Bar is also easily storable to help prevent theft.

54" - 107" 3 Position Retract-A-Bar – 80131 Quick Specs:

Type of Bar End Fitting: Kinedyne 10121 (Large Tube) and 10123 (Small Tube) Non-Slip/Non-Scuff Pivoting Rubber Feet
Shape of Bar: Square
Tube Width: 1.5 Inches
Tube Height: 1.5 Inches
Minimum Length: 54 Inches
Maximum Length: 107 Inches
Weight: 14.45 Lbs. / 6.6 Kgs.

Specifications

Country of Origin:	China
Bar Adjustment Mechanism:	Kinedyne 10025-31 Rack and Housing Assembly, In addition Push Pin allows for 3 additional adjustment settings
Bar End Fitting Length (inches):	4
Bar End Fitting Width (inches):	4
Bar Finish:	Galvanized
Bar Material:	High Strength Steel
Color:	Silver
Horizontal Application:	True
PROPOSITION 65:	Yes
Maximum Length (inches):	107
Minimum Length (inches):	54
Series A:	False
Series E:	False
Series F 1 inch hole:	False
Series F 3/4 inch hole:	False
Shape of Bar:	Square
Shipping Days:	3-5
VMRS Cargo Restraints:	055-012-001
Type of Bar:	Retract-A-Bar
Type of Bar End Fitting:	Kinedyne 10121 (Large Tube) and 10123 (Small Tube) Non-Slip / Non-Scuff pivoting Rubber Feet
Weight (kgs):	7
UPC Code:	52474020794
Weight (lbs):	14.4
Tube Height (inches):	1.5
Tube Width (inches):	1.5
Vertical Application:	True

Packaging

Skid - GTIN:	20052474020798
Skid - Standard Pack Quantity:	25
Skid - Unit Quantity:	100
Standard Pack - GTIN:	10052474020791
Standard Pack - Unit Quantity:	4
Unit Packaging:	Individually

Notices & Warnings

Warning English:	WARNING: JACK BARS - WARNING: Jack Bars should not be used with cargo on wheels. Cargo on wheels exerts more force when it shifts during movement and can cause friction type cargo bars to fail. Only use positive engagement shoring bars, beams, or straps to secure cargo on wheels. Over-tensioning of ratchet mechanism may cause damage to trailer sidewalls. Cargo bars do not have load ratings due to varying conditions of trailer sidewalls. Cargo bars should not be placed in close vertical alignment with each other as the installation of one bar may cause the previously installed bar to loosen and/or fall causing damage to cargo or injury to you or a bystander.
Warning French:	POUTRELLES À CRIC - AVERTISSEMENT: Les poutrelles à cric ne doivent pas être utilisées pour retenir une cargaison sur roues. Les cargaisons sur roues exercent plus de force en se déplaçant lors de mouvements et peuvent provoquer la défaillance des poutrelles de soutien par friction. N’utilisez que des poutrelles d’étayage, des poutres ou des courroies à blocage verrouillé, pour arrimer une cargaison sur roues. La surtension du mécanisme à cliquet peut endommager les parois latérales de la remorque. Les poutrelles Cargo ne sont pas cotées pour leur capacité, en raison des conditions variées de parois latérales de remorque. Les poutrelles de cargo ne devraient pas être placés proche une de l'autre en alignement vertical car l'installation d'une deuxième barre peut déserrer ou faire tomber la première barre et pourrait endommager la cargaison ou des blessures au conducteur ou un passant.
Warning Spanish:	BARRAS TIPO “JACK” - ADVERTENCIA: Las barras tipo Jack, no deben utilizarse para carga sobre ruedas, ya que este tipo de carga ejerce más fuerza cuando se desplaza durante el movimiento y puede causar falla en las barras de fricción. Para ello únicamente se recomienda el uso de barras de retención, para doble piso/retención, o ensambles de correas para asegurarla. El exceso de tensión en un sistema de trinquete puede causar daños en las paredes del remolque. Este tipo de barras no tiene carga límite de trabajo, debido a que las paredes de los remolques presentan condiciones variables. Las barras de carga no deben colocarse en una alineación vertical estrecha entre si ya que la instalación de una barra puede causar que la barra previamente instalada se afloje y / o caiga causando daños a la carga o lesiones a usted o un espectador.
