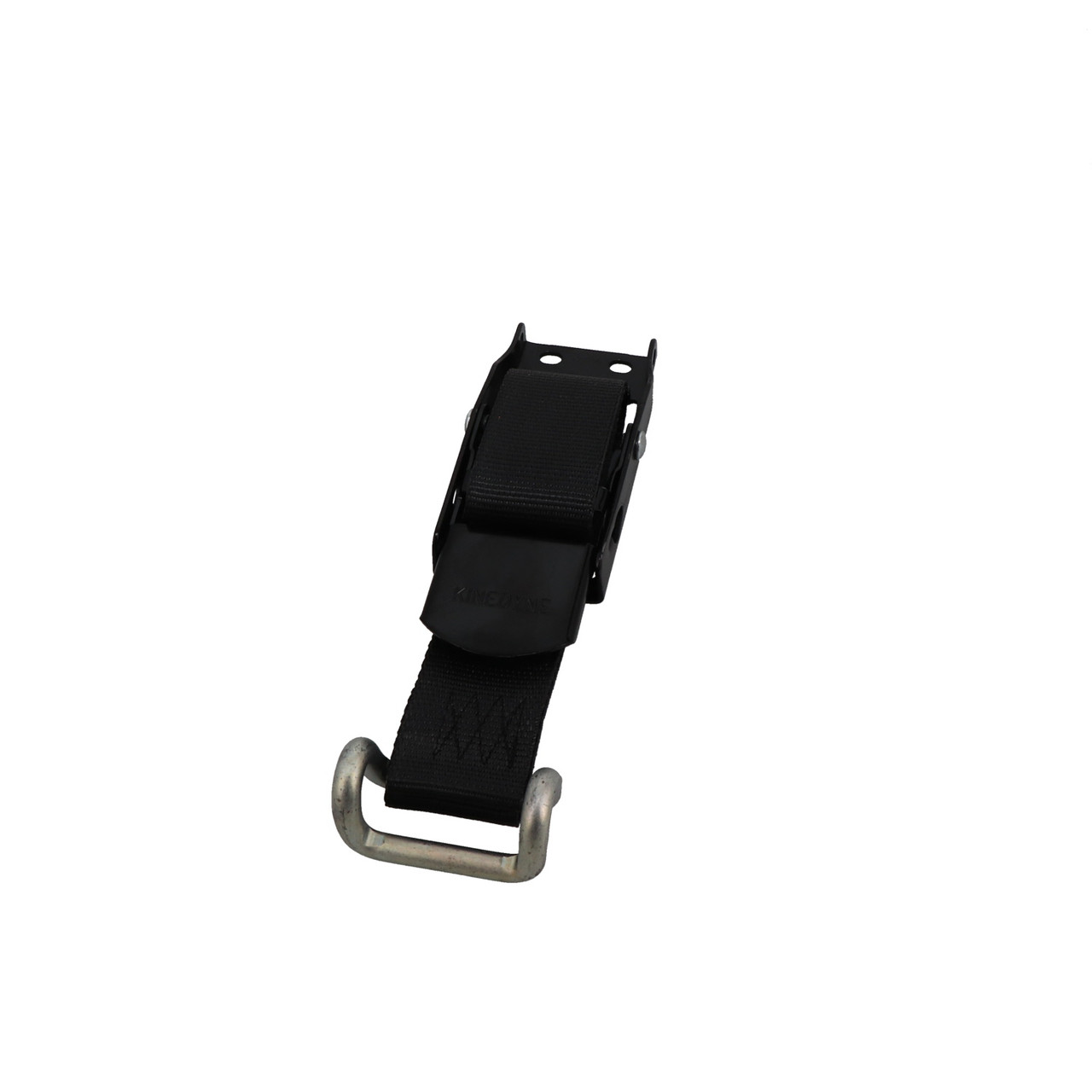

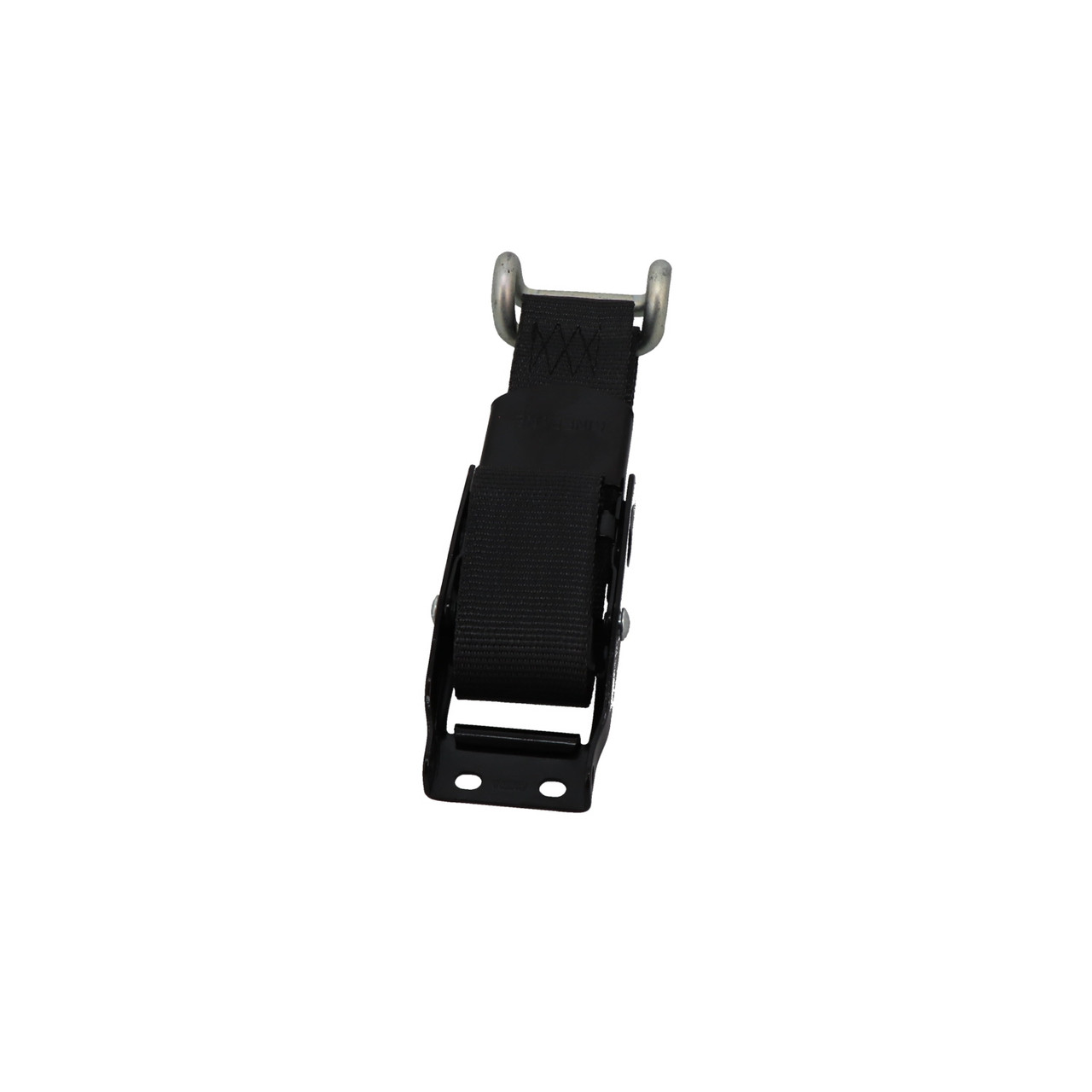

Kinedyne Rave Hook Overcenter Buckle Strap

Product Code:

15407-5

Have Questions?

Fill out the form below

Opening and closing our Kin-Sider Curtain System is fast and easy with Kinedyne's Overcenter Buckle Strap with Rave Hook.

Rave Hook Overcenter Buckle Strap

Completely and successfully securing the Kin-Sider Curtain System is a lot easier when you have our Overcenter Buckle Strap with Rave Hook installed on the curtain. This tie down Strap offers a strong and secure grip as it connects the curtain to the trailer in order to hermetically seal the curtain once it's closed. When you've reached your destination and it's time to unload, releasing the tension on this Strap is very easy and quick, saving time accessing your cargo.

The strength of our Overcenter Buckle Strap comes from the combined efforts of the webbing and the hardware. Our 2-inch tightly weaved polyester thread is engineered to perform flawlessly while providing minimal stretch. The heat-treated carbon steel Overcenter Buckle is engineered with a lever arm assembly that allows for easy operation as it securely clamps down on the webbing in a tight grip. The extra-durable Rave Hook is designed for easy installation and helps you operate the Kin-Sider effortlessly and effectively.

Rave Hook Overcenter Buckle Strap – 15407-5 Quick Specs:

Working Load Limit: 600 Lbs. / 272 Kgs.
Dimensions: 10 Inches Length
Weight: 1 Lbs. / 0.5 Kgs.

Specifications

Finish:	Black Epoxy
Dimensions:	10" length
Color:	Black
Material:	Steel
Shipping Days:	3-5
Type of product:	Buckle strap
Weight (lbs):	1
Working Load Limit (lbs):	600

Packaging

Notices & Warnings

Warning English:

SERIES E & A BEAMS - WARNING: Series E or A beams are designed for use with Kinedyne Logistic Track. Load ratings may be reduced when used with other tracks or if the track fitting is not positively engaged. Your cargo control system is only as strong as its weakest link. Do not overload beams or create a top-heavy, unstable trailer. Do not exceed statedWorking Load Limits of Beams. Dynamic loads must be considered to avoid possible overload of system. Actual pallet load supported by the beams in a decking application must not exceed 50% of the statedWorking Load Limit to allow for dynamic loads during transit.

Warning French:

POUTRELLES DE SÉRIE E ET A - AVERTISSEMENT: Poutrelles de Série E etA sont conçus pour être utilisés avec les rails Logistique de Kinedyne. La capacité de charge peut être réduite lorsque ces raccords sont utilisés avec d’autres rails ou lorsque le raccord n’est complètement verrouillé. Votre système d’arrimage est aussi fort que son maillon le plus faible.Ne pas surcharger pas les poutrelles, ne pas mettre trop de poids en hauteur, ce qui pourrait élever le centre de gravité et rendre la remorque instable. Ne pas dépasser la capacité de charge maximale des poutrelles. Les cargaisons dynamiques doivent être considérés pour éviter le surchargement du système. Le chargement actuel des palettes supporté par les poutrelles dans une application d'empilage de peuvent pas dépasser 50% de la charge maximale de la poutrelle pour permettre les cargaisons dynamiques en route.
