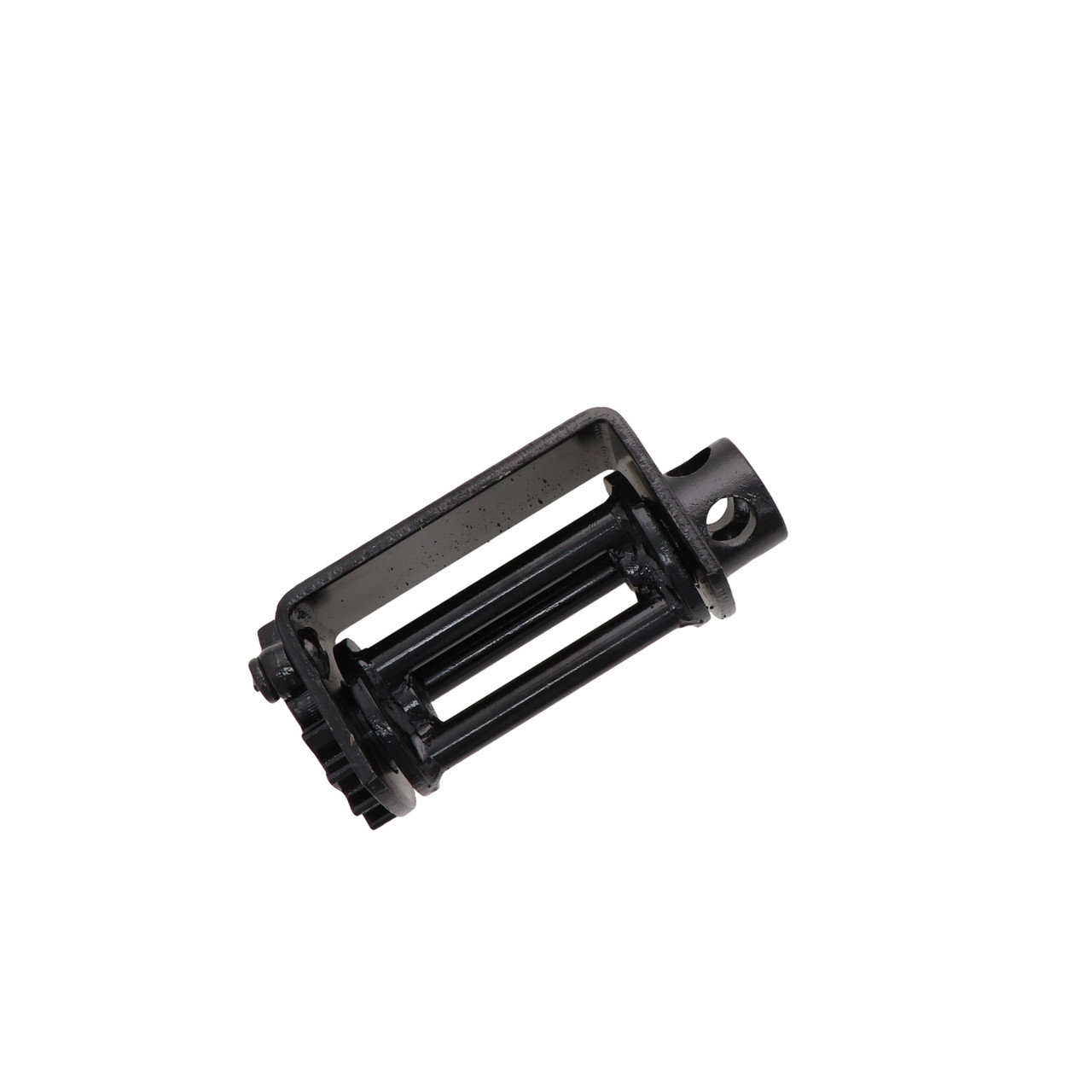

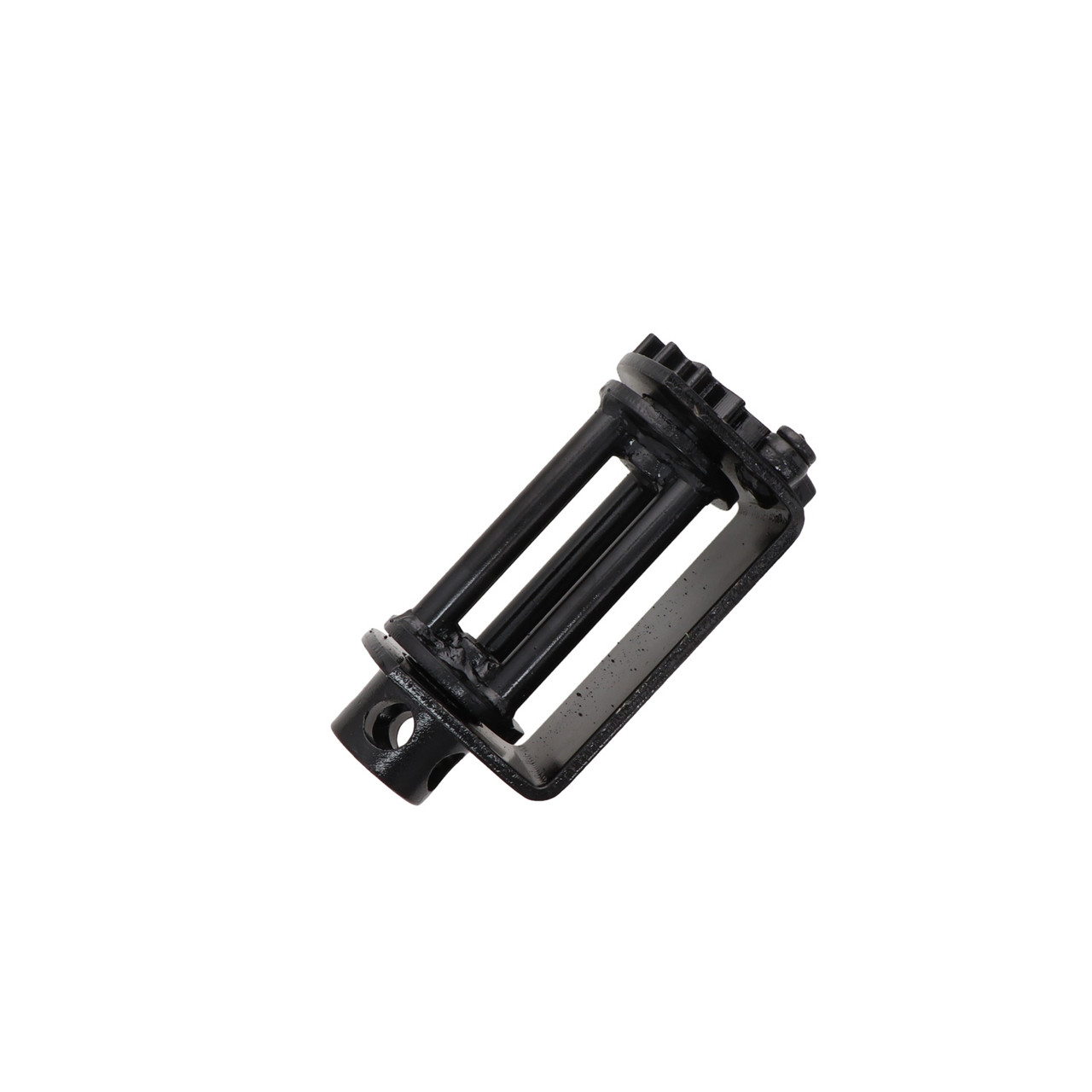

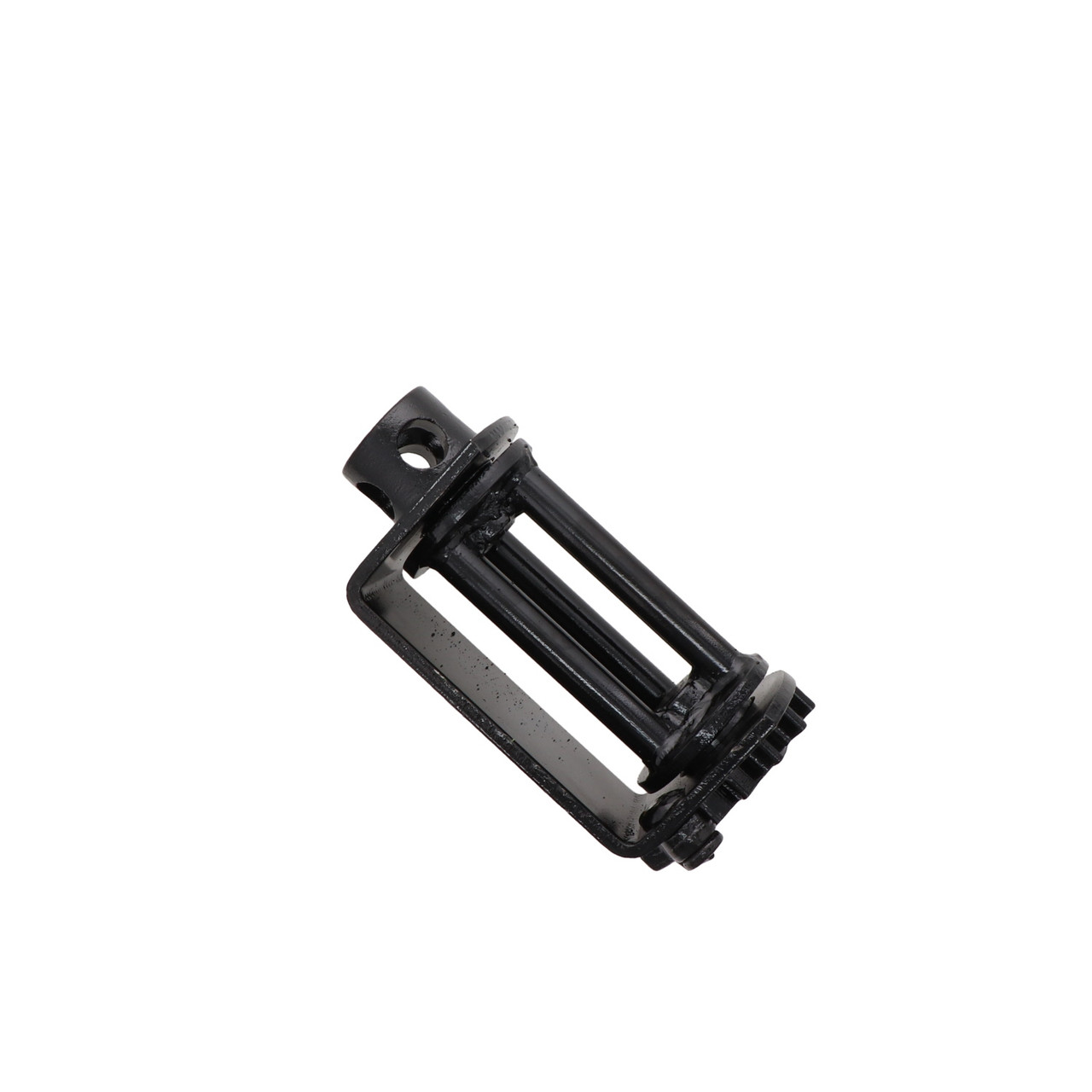

Kinedyne Low-Profile Weld-On 3-Bar Winch

Low-Profile Weld-On 3-Bar Winch

For situations in which space is of a premium and snow or ice are a factor, Kinedyne's Low-Profile Weld-On 3-Bar Winch is your ideal choice to use for your tie down job. This unique design allows for easier Winch Strap insertion, when other winches might be clogged with snow or ice. Our winch makes it easier to control the Strap while offering a strong, viselike grip over the cargo once the winch has successfully tightened the webbing. With a working load limit of 5,000 Lbs. / 2,270 Kgs., this winch is designed for the heavy-duty tie down jobs that require an effective grip over your cargo.

Engineered with heat-treated carbon steel for extra strength, our Low-Profile Weld-On 3-Bar Winch can easily be operated even if there's some ice built up along its frame. In addition, this winch features a thumb pawl that makes it easier to lock or loosen the sprocket, even if you're wearing some heavy-duty gloves. This makes our winch the ideal tensioning device for when you need to tie down some loads during the cold, icy winter months.

Kinedyne winches are designed and tested to meet or exceed the regulations and standards of the DOT, CHP, Canadian 905, WSTDA, and North American Cargo Securement. In accordance to North American Regulations, the winches are labeled with the country of origin, manufactured date, and the working load limit in both pounds and kilograms.

Low-Profile Weld-On 3-Bar Winch – 14001 Quick Specs:

• Working Load Limit: 5,000 Lbs. / 2,270 Kgs.
• Height: 4.25 Inches
• Width: 3.94 Inches
• Length: 10.24 Inches
• Weight: 11.6 Lbs. / 5.3 Kgs.
• Storage Capacity (Webbing Length): 10 Feet Approximately
• Recommended Installation Instructions: View Instruction Manual Here
