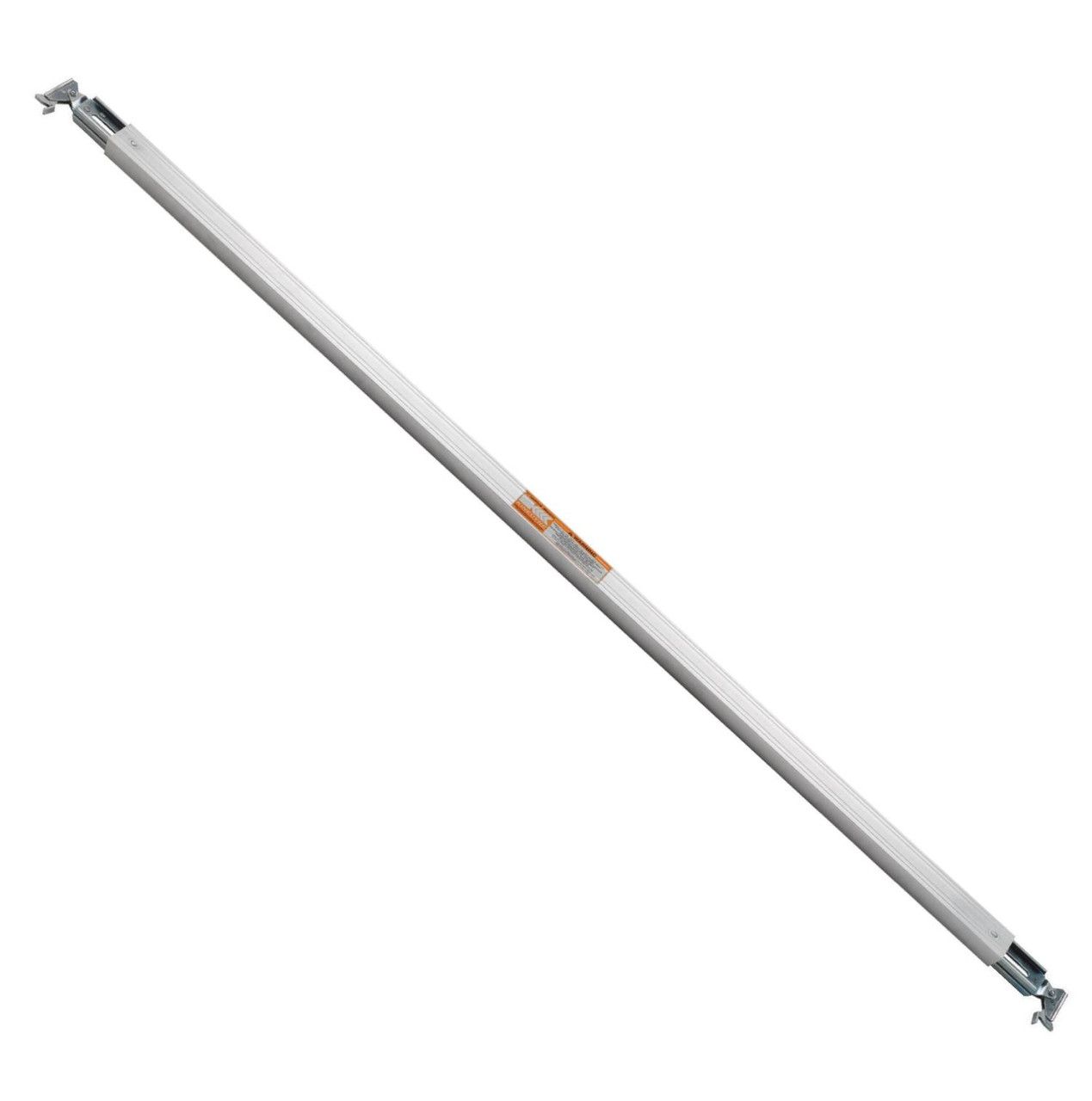

Kinedyne 90" - 100" K2 Kaptive Beam for 96" Trailers

90-Inch to 100-Inch K2 Kaptive Beam

Creating a beneficial double deck with Kinedyne's K2 Kaptive Beam System can be easily achieved by using the strength of our K2 Kaptive Beam that can adjust from 90" to 100". Quick and easy to use, you'll see an increase in benefits when you use this K2 Kaptive Beam to greatly impact your trailer's load capacity by up to 100%. By increasing the amount of space you can use in the back of the trailer, you'll be able to increase profits by maximizing loads while minimizing trips.

Since this Kaptive Beam can be adjusted to multiple different heights to fit various load configurations, it offers numerous advantages for nearly any load operation. Our K2 Kaptive Beam can be used for both decking and shoring applications with a decking working load limit of 2,200 Lbs. / 1,000 Kgs. and a shoring working load limit of 1,500 Lbs. / 680 Kgs. This kind of flexibility is much needed in the cargo control industry.

Manufactured from extruded high-strength aluminum, our K2 Kaptive Beam is designed with a unique Head Assembly that's made from anodized high-strength aluminum and is equipped with a heavy-duty spring-loaded trigger mechanism that allows for easy manipulation, insertion, and removal from the Kaptive Beam Track's slots.

90" - 100" K2 Kaptive Beam for 96" Trailers – 9075-96 Quick Specs:

• For Trailer Size (Wide): 96 Inch Wide Trailers
• Decking Working Load Limit: 2,200 Lbs. / 1,000 Kgs.
• Shoring Working Load Limit: 1,500 Lbs. / 680 Kgs.
• Minimum Length: 90 Inches
• Maximum Length: 100 Inches
• Weight: 19.0 Lbs. / 8.6 Kgs.
• Head Assembly Type: K2 Beam Head
