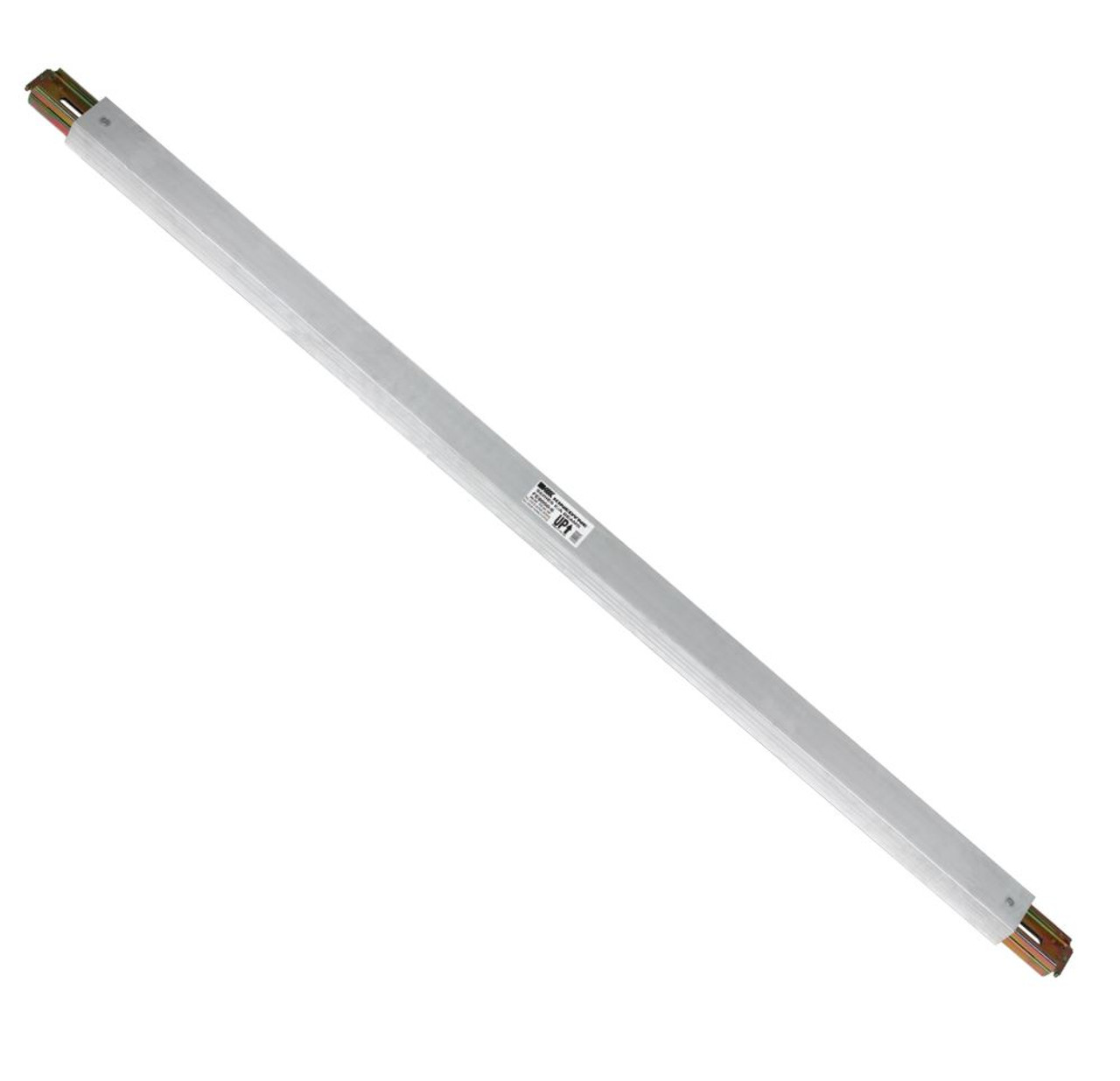

Kinedyne 92" - 102" Extra Heavy-Duty Series E or A Aluminum Decking/Shoring Beam

92-Inch to 102-Inch Extra Heavy-Duty E or A Deck/Shoring Beam

Suddenly find yourself in need of transporting a lot of mix-shaped cargo but don't have enough room in your trailer? You can create the room you need with Kinedyne's EXTRA Heavy-Duty Series E or A Aluminum Decking/Shoring Beam. Engineered with the strength to handle the tough heavy-duty jobs, our Decking/Shoring Beam can help you separate your cargo, keep it steady, and create much needed room in your trailer.

When you get the really tough cargo, you need our Decking/Shoring Beam to help you get a reliable hold over it so that it doesn't shift around during transport. In order to make this possible, we've manufactured our Beam with extruded high strength aluminum with 70 percent more aluminum than the heavy-duty beams so that we can make strong into stronger. Because of this added strength, this Beam can handle a decking working load limit of 4,000 Lbs. / 1,814 Kgs. and a shoring working load limit of 3,000 Lbs. / 1,360 Kgs.

Whether used as decking or shoring, our zinc plated hardened steel Beam Head is designed to easily click into your Series E or A Track. Once inserted, it retains a strong grip with the Track for a reliable secure or support job. The head can adjusts from 92.9 inches to 102.6 inches.

92" - 102" Extra Heavy-Duty Series E or A Aluminum Decking/Shoring Beam – FE8050-5 Quick Specs:

• For Trailer Size (Wide): 96 and 102 Inch Wide Trailers
• Decking Working Load Limit: 4,000 Lbs. / 1,814 Kgs.
• Shoring Working Load Limit: 3,000 Lbs. / 1,360 Kgs.
• Series Type: Series E or A
• Width: 2.6 Inches
• Height: 3.6 Inches
• Minimum Length: 92.9 Inches
• Maximum Length: 102.6 Inches
• Weight: 33.7 Lbs. / 15.3 Kgs.
• Beam Head Assembly Type: Kinedyne FE7955-8HD Head Assembly
