91" - 102" Heavy-Duty Series E or A Aluminum Decking/Shoring Beam

91-Inch to 102-Inch Heavy-Duty E or A Aluminum Deck/Shoring Beam

Engineered with the user in mind, Kinedyne's Heavy-Duty Series E or A Aluminum Decking/Shoring Beam is the cost-effective way to maximize your trailer capacity while reducing potential cargo damages. Manufactured from extruded high strength aluminum, our Decking/Shoring Beam is designed to keep your many heavy-duty items securely in place in the back of your trailer.

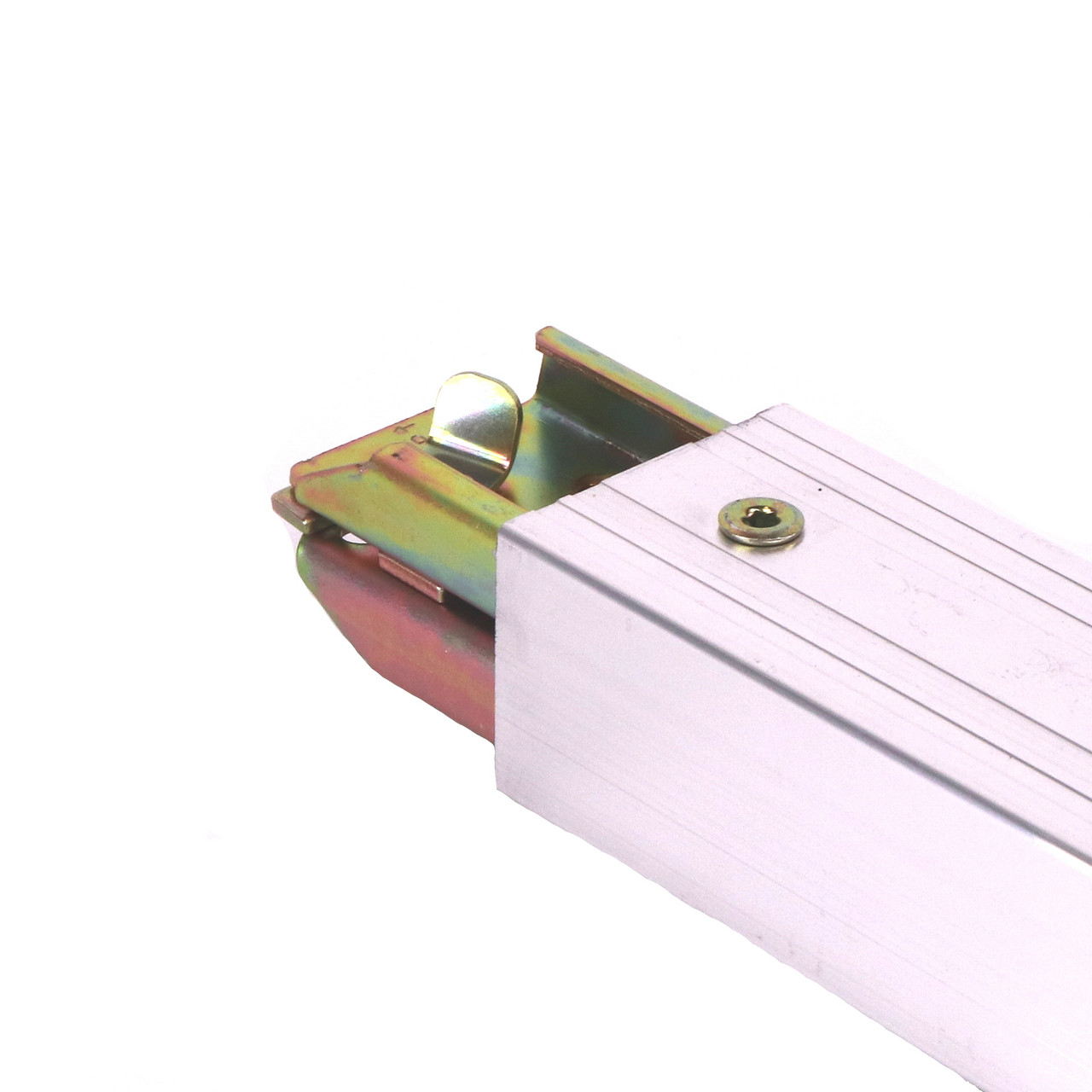

Built tough to take abuse while protecting your cargo, our Decking/Shoring Beam is simple to operate. All you need to do is position your load to where you want it, then insert the hardened steel zinc plated head assembly into the Series E or A Track with just a simple push. Once engaged, this Beam can adjust from 91.9 inches to 102.3 inches and can be used for shoring with a working load limit of 2,500 Lbs. / 1,135 Kgs. as it works to prevent your cargo from shifting during the move. The Beam also lets you double deck with a decking working load limit of 3,000 Lbs. / 1,360 Kgs. so you can get optimal usage out of your trailer space.

Our extruded high strength aluminum Heavy-Duty Series E or A Decking/Shoring Beam comes with our ergonomic KwikLatch Release Tab that's designed to make it easier to engage the Beam Head with the Series E or A Track from any position. Since it's located on the sides of the head assembly, this tab is less prone to damage and is easier to operate.

91" - 102" Heavy-Duty Series E or A Aluminum Decking/Shoring Beam – FE8000-12 Quick Specs:

• For Trailer Size (Wide): 96 and 102 Inch Wide Trailers
• Decking Working Load Limit: 3,000 Lbs. / 1,360 Kgs.
• Shoring Working Load Limit: 2,500 Lbs. / 1,135 Kgs.
• Series Type: Series E or A
• Width: 2.59 Inches
• Height: 3.77 Inches
• Minimum Length: 91.9 Inches
• Maximum Length: 102.3 Inches
• Weight: 22.7 Lbs. / 10.3 Kgs.
• Beam Head Assembly Type: Kinedyne 80007 KwikLatch Release Head Assembly
