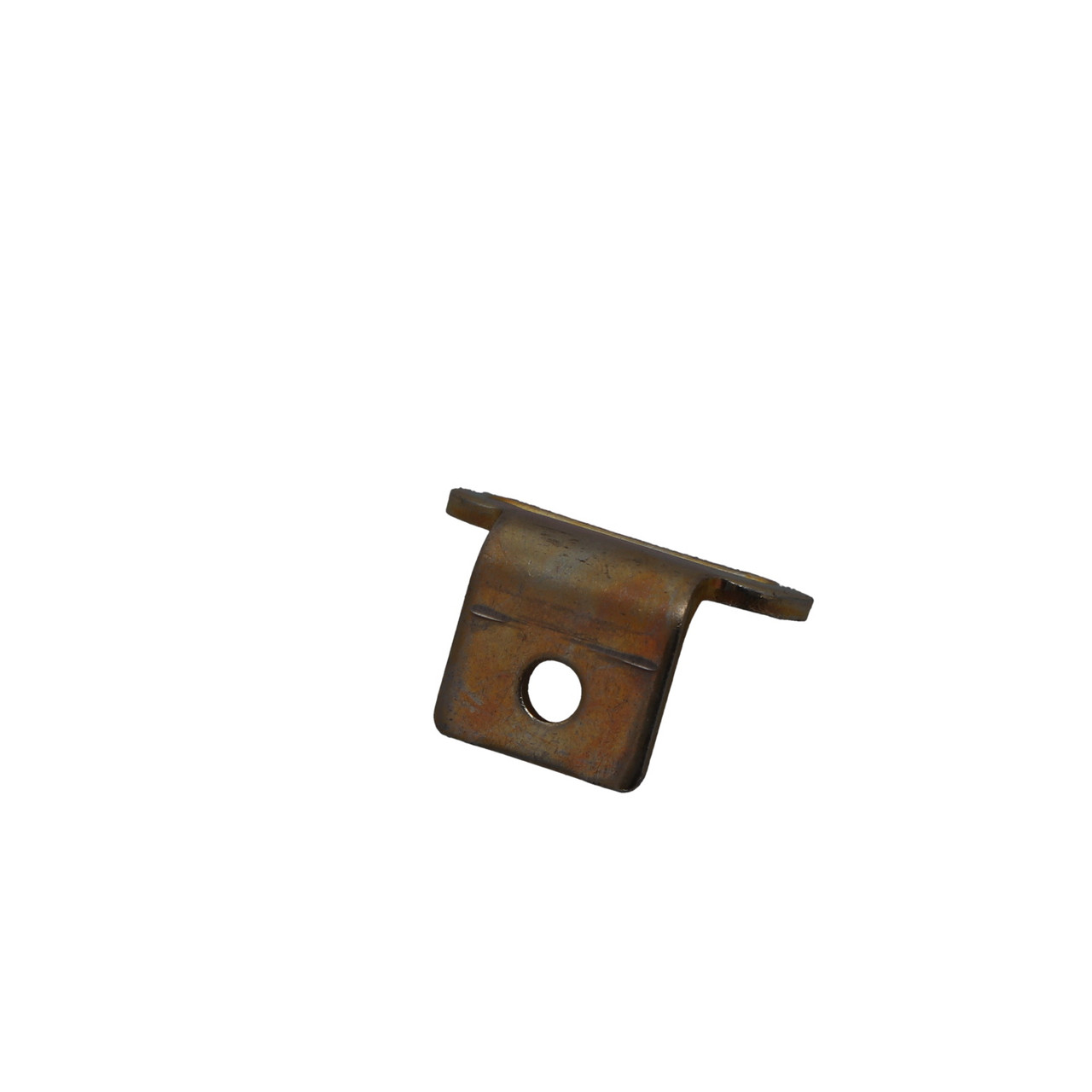

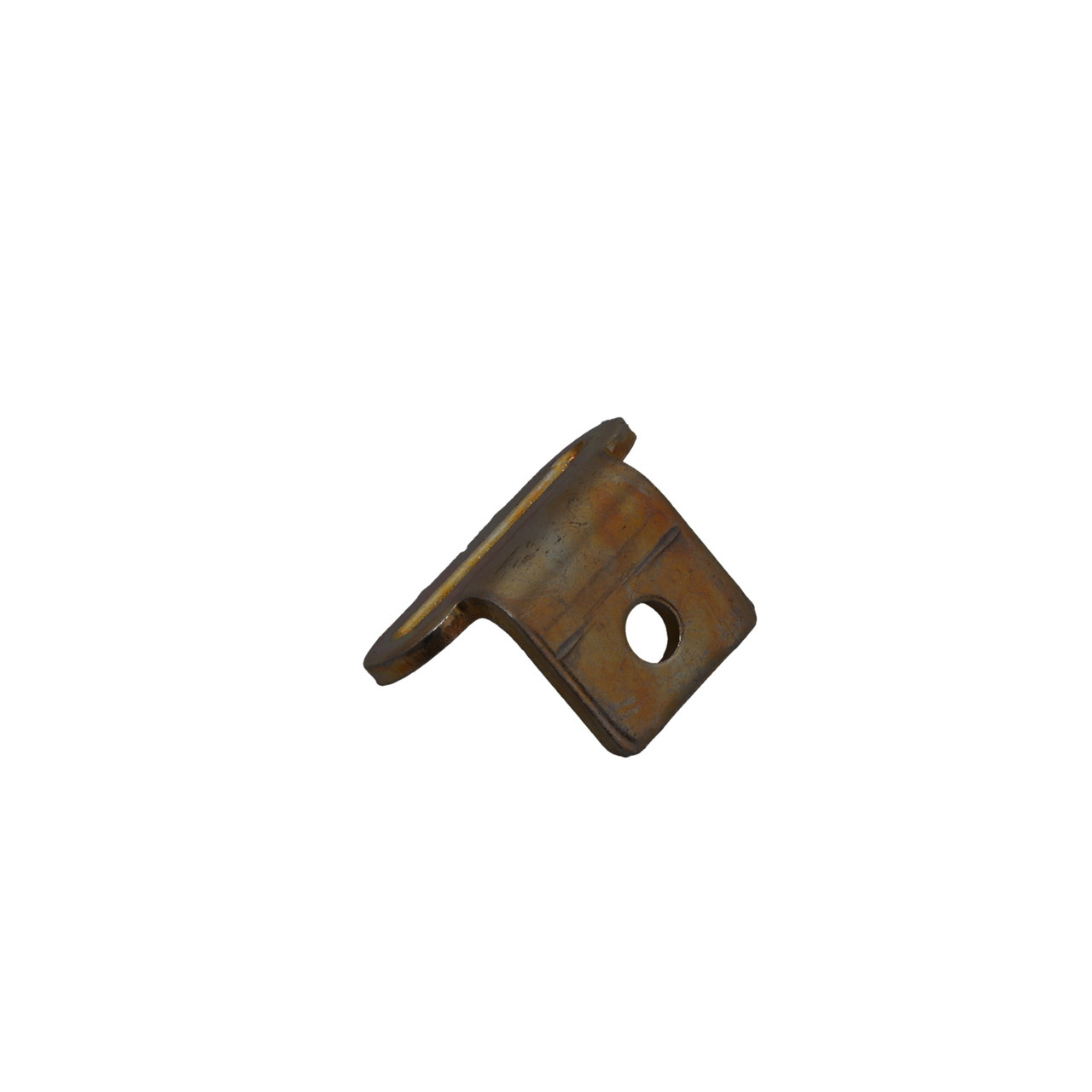

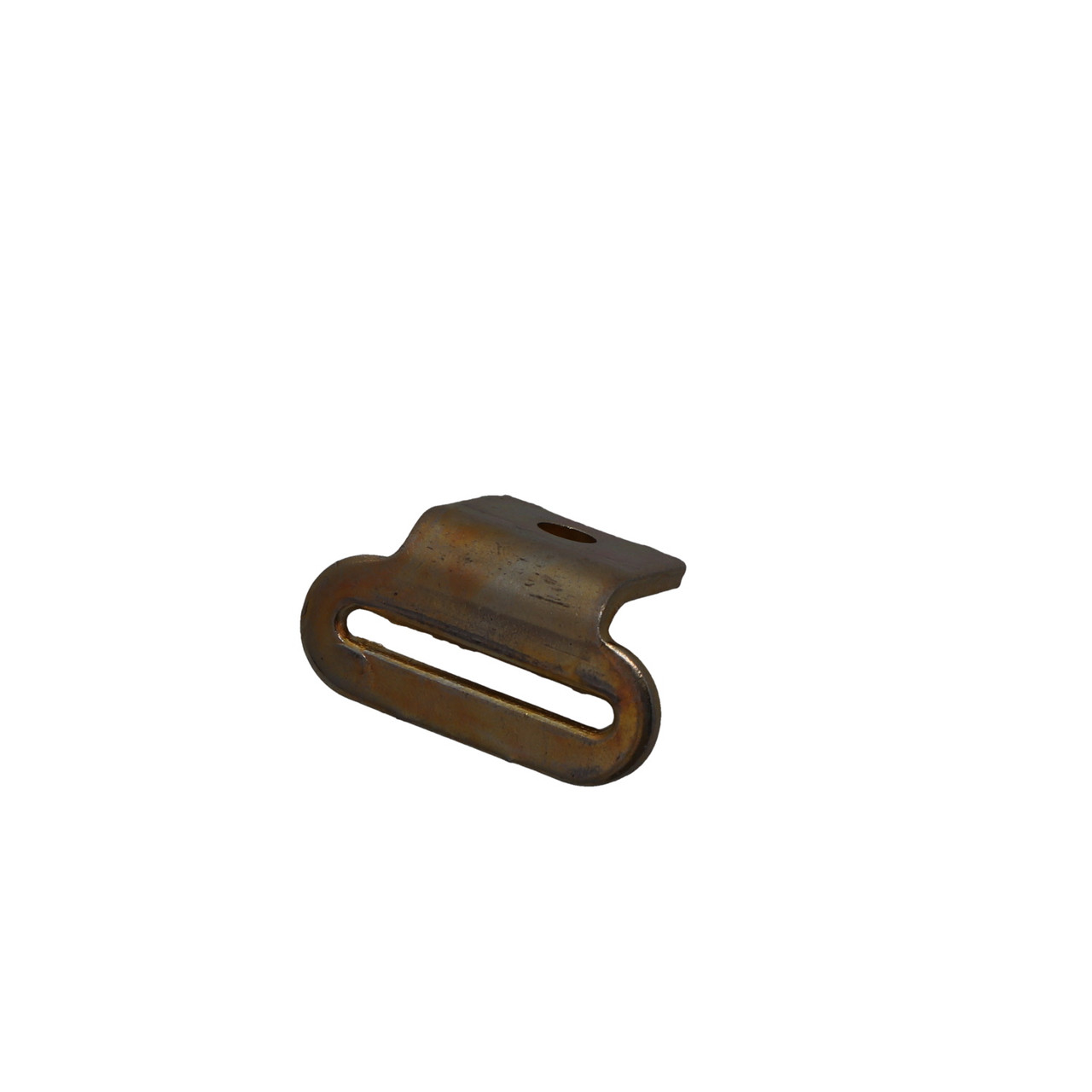

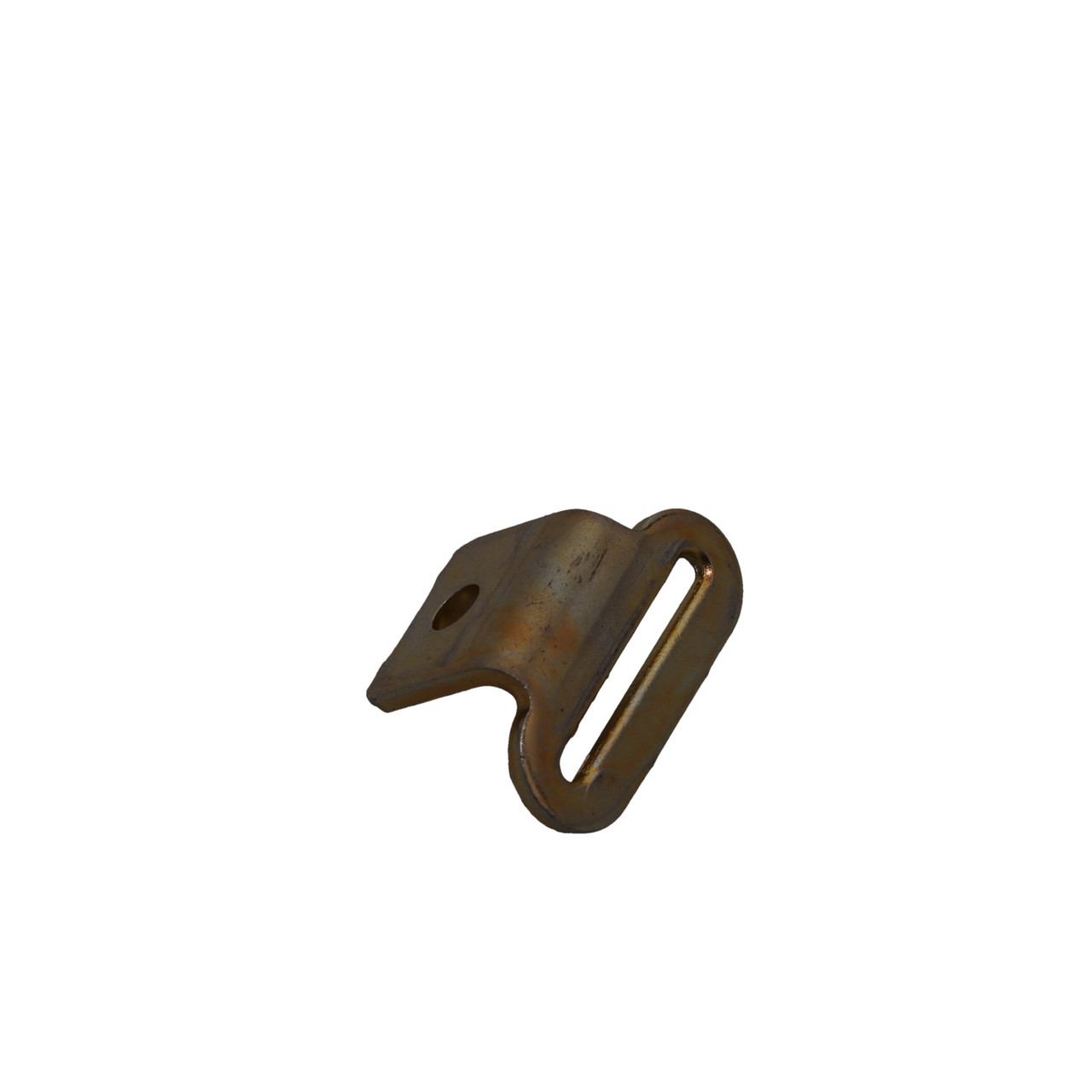

Kinedyne 1" 90-Degree Strap End Bolt Plate

1-Inch 90-Degree Strap End Bolt Plate

For securing anchor points to corners, Kinedyne has you covered with our 1-inch 90-Degree Strap End Bolt Plate. This industrial strength anchor point is made from heat-treated carbon steel and coated in a zinc plated finish to enhance its durability. When you want to make your strap a more permanent fixture in your trailer, you use our Strap End Bolt Plate. Equipped to handle the heavy-duty tie down jobs, this anchor point has a working load limit of 2,167 Lbs. / 985 Kgs. at 0 degrees, a working load limit of 2,000 Lbs. / 910 Kgs. at 45 degrees, and a working load limit of 1,670 Lbs. / 757 Kgs. at 90 degrees.

1" 90-Degree Strap End Bolt Plate – 34109-6 Quick Specs:

• 0 Degree Working Load Limit: 2,167 Lbs. / 985 Kgs.
• 45 Degree Working Load Limit: 2,000 Lbs. / 910 Kgs.
• 90 Degree Working Load Limit: 1,670 Lbs. / 757 Kgs.
• Width of Webbing Slot: 1.25 Inches
• Overall Height: 0.12 Inch
• Overall Width: 1.40 Inches
• Overall Length: 1 Inch
• Type of Hole: Standard Hole to Attach Plate
• Dimension of Hole: 0.26 Inch
• Weight: 0.27 Lbs. / 0.12 Kgs.
