Kinedyne 88" - 97" Extra Heavy-Duty Series E or A Aluminum Decking/Shoring Beam
Have Questions?
Fill out the form below
For the cargo securement jobs that require extra strength, you need the EXTRA Heavy-Duty Series E or A Aluminum Decking/Shoring Beam that adjusts from 88" to 97.7". This Beam is designed for the more severe-duty loads.
88-Inch to 97-Inch Extra Heavy-Duty E or A Deck/Shoring Beam
Save on room in your trailer while preventing cargo damage with Kinedyne's EXTRA Heavy-Duty Series E or A Aluminum Decking/Shoring Beam. Designed for the more severe applications, we've manufactured this Beam to be tough enough to take on abuse so it can handle the tougher jobs easily. Able to adjust from 88" to 97.7", our Decking/Shoring Beam is ideal for any cargo securement job that needs strength and durability.
As a Shoring Beam with a shoring working load limit of 3,000 Lbs. / 1,360 Kgs., this heavy-duty tool makes it easier to keep your items separated during transport. If they're knocking into each other, they're not going to last very long. Instead, use the Shoring Beam to keep the different items separated, secure, and organized so you'll be able to find them quickly.
As a Decking Beam with a decking working load limit of 4,000 Lbs. / 1,814 Kgs., you can use this heavy-duty tool to support an extra layer of cargo in your trailer, saving you a lot of space. This allows you to stack otherwise unstackable items on top of a makeshift floor to give you more room that you can fill with even more items.

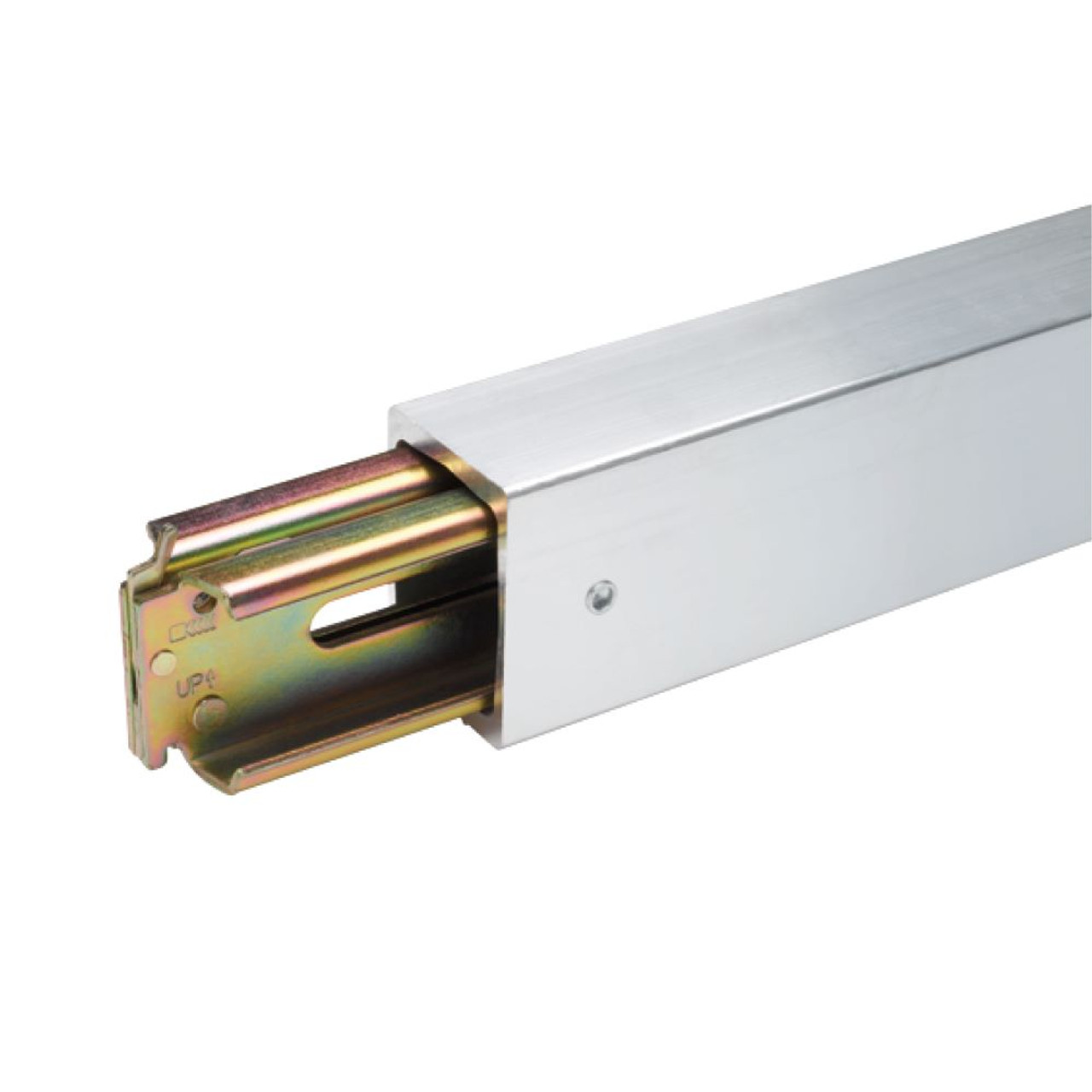

The Shoring/Decking is made from extruded high strength aluminum with 70 percent more aluminum than the heavy-duty beam for more strength and durability. The Beam Head is made from hardened steel with a zinc plated finish and is designed to easily hook onto your Series E or A Track for quick and reliable installment.
88" - 97" Extra Heavy-Duty Series E or A Aluminum Decking/Shoring Beam – FE8050-6 Quick Specs:
- For Trailer Size (Wide): 96 Inch Wide Trailers
- Decking Working Load Limit: 4,000 Lbs. / 1,814 Kgs.
- Shoring Working Load Limit: 3,000 Lbs. / 1,360 Kgs.
- Series Type: Series E or A
- Width: 2.6 Inches
- Height: 3.6 Inches
- Minimum Length: 88 Inches
- Maximum Length: 97.7 Inches
- Weight: 32.48 Lbs. / 14.7 Kgs.
- Beam Head Assembly Type: Kinedyne FE7955-8HD Head Assembly
