Kinedyne 86"-114" Extra Long Galv Square Jack Bar w/Hoop

Kinedyne 86" - 114" Extra Long Galvanized Square Steel Jack Bar w/ Hoop Set

Product Code:

JB109XL

UPC Code:

52474004428

Have Questions?

Fill out the form below

By using Kinedyne's Square One-Piece Steel Extra Long Jack Bar with Welded Hoop Sets, you'll be able to secure more cargo with less space, saving you time and stress. This also frees up your trailer for even more cargo securement.

86-Inch to 114-Inch Extra Long Square Steel Jack Bar w/ Hoop Set

Need to deliver a number of small packages but your standard Jack Bar isn't wide enough to keep them all from falling over? Get Kinedyne's Square One-Piece Steel Extra Large Jack Bar with Welded Hoop Sets so that you can have a firm hold over all the packages without having to use multiple Jack Bars. Use our Square One-Piece Steel Extra Large Jack Bar with Welded Hoop Sets to both hold your loads firmly in place and clear up room in the back of your trailer for more space.

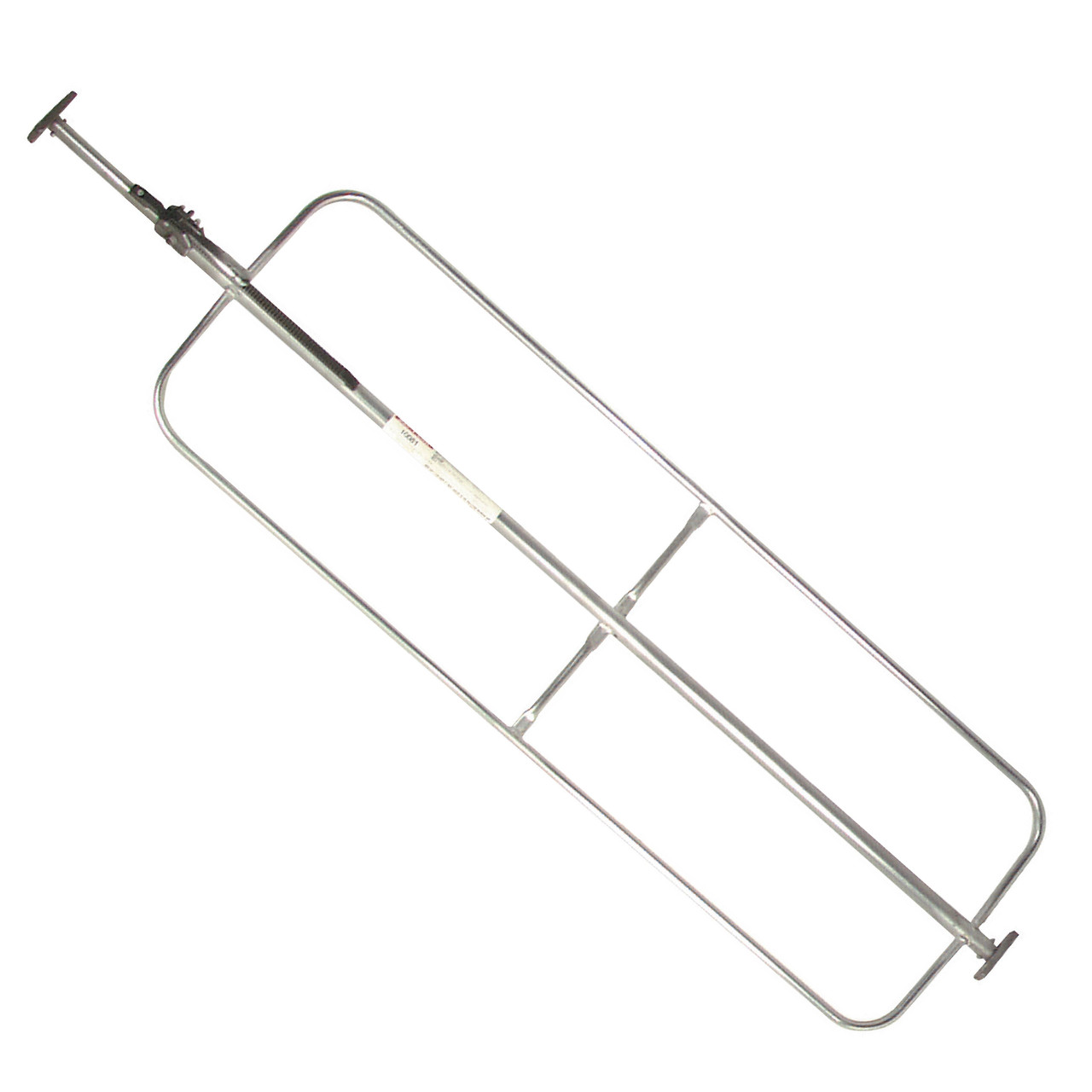

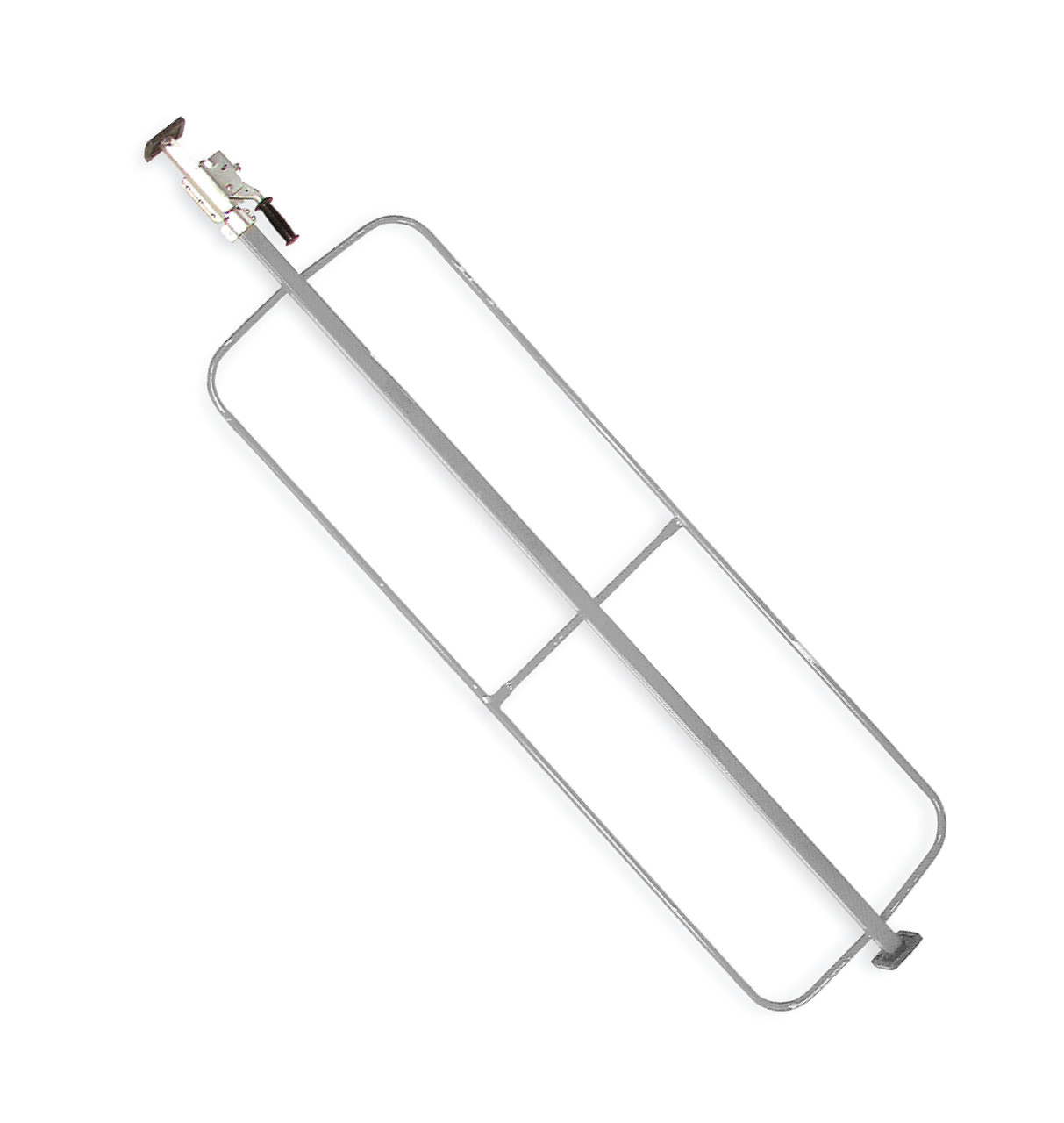

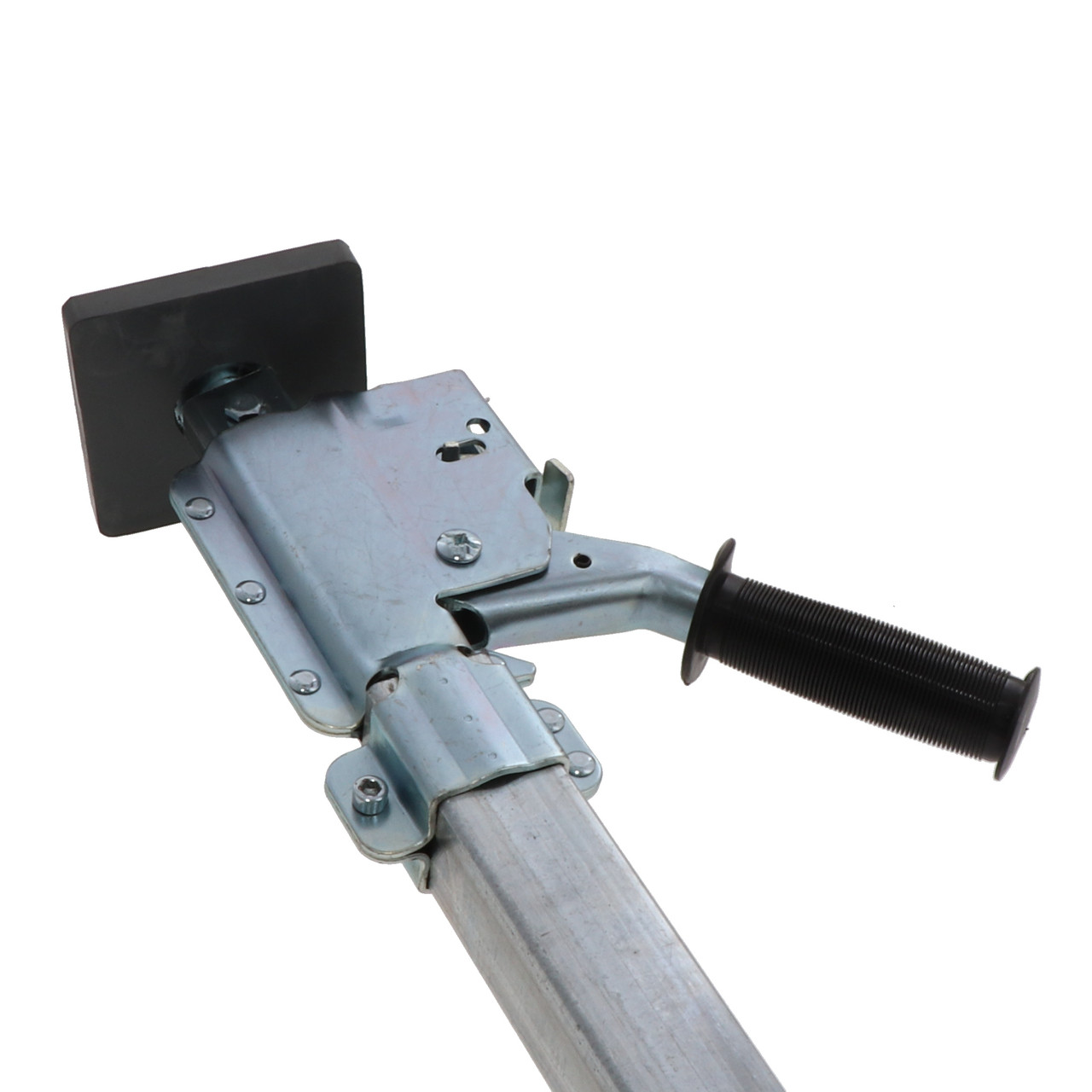

Constructed from heavy wall steel for industrial strength, we've designed our Square One-Piece Steel Extra Large Jack Bar with a set of welded steel hoops that are wide enough to prevent those packages from shifting. Built for larger trailers, this Jack Bar can adjust from 86 inches to 114 inches easily thanks to our patented quick-release handle assembly. Other Jack Bars on the market require a time consuming ratchet mechanism to change the length of the Bar. With our patented quick-release assembly, you'll be able to make adjusts in less time with less effort.

Note that Jack Bars should not be used with cargo on wheels since those exert more force when they shift during movement and can cause friction type cargo bars to fail.

86" - 114" Extra Long Galvanized Square Steel Jack Bar w/ Hoop Set – JB109XL Quick Specs:

Type of Bar End Fitting: Kinedyne 10121 (Large Tube) and 10123 (Small Tube) Non-Slip/Non-Scuff Pivoting Rubber Feet
Shape of Bar: Square
Tube Width: 1.5 Inches
Tube Height: 1.5 Inches
Minimum Length: 86 Inches
Maximum Length: 114 Inches
Weight: 25.7 Lbs. / 11.7 Kgs.
Recommended Installation Instructions: View Instruction Manual Here

Specifications

Country of Origin:	China
Bar Adjustment Mechanism:	Kinedyne 10159-37 Jack Assembly
Bar End Fitting Length (inches):	4
Bar End Fitting Width (inches):	4
Bar Finish:	Galvanized
Bar Material:	High Strength Steel
Color:	Silver
Horizontal Application:	True
PROPOSITION 65:	Yes
Maximum Length (inches):	114
Minimum Length (inches):	86
Series A:	False
Series E:	False
Series F 1 inch hole:	False
Series F 3/4 inch hole:	False
Shape of Bar:	Square
Shipping Days:	3-5
VMRS Cargo Restraints:	055-012-001
Type of Bar:	Jack Bar
Type of Bar End Fitting:	Kinedyne 10121 (Large Tube) and 10123 (Small Tube) Non-Slip / Non-Scuff pivoting Rubber Feet
Weight (kgs):	12
UPC Code:	52474004428
Weight (lbs):	25.7
Tube Height (inches):	1.5
Tube Width (inches):	1.5
US Patent:	5,979,876
Vertical Application:	True

Packaging

Skid - GTIN:	20052474004422
Skid - Standard Pack Quantity:	6
Skid - Unit Quantity:	180
Standard Pack - GTIN:	10052474004425
Standard Pack - Unit Quantity:	30
Unit Packaging:	Individually

Notices & Warnings

Warning English:	WARNING: JACK BARS - WARNING: Jack Bars should not be used with cargo on wheels. Cargo on wheels exerts more force when it shifts during movement and can cause friction type cargo bars to fail. Only use positive engagement shoring bars, beams, or straps to secure cargo on wheels. Over-tensioning of ratchet mechanism may cause damage to trailer sidewalls. Cargo bars do not have load ratings due to varying conditions of trailer sidewalls. Cargo bars should not be placed in close vertical alignment with each other as the installation of one bar may cause the previously installed bar to loosen and/or fall causing damage to cargo or injury to you or a bystander.
Warning French:	POUTRELLES À CRIC - AVERTISSEMENT: Les poutrelles à cric ne doivent pas être utilisées pour retenir une cargaison sur roues. Les cargaisons sur roues exercent plus de force en se déplaçant lors de mouvements et peuvent provoquer la défaillance des poutrelles de soutien par friction. N’utilisez que des poutrelles d’étayage, des poutres ou des courroies à blocage verrouillé, pour arrimer une cargaison sur roues. La surtension du mécanisme à cliquet peut endommager les parois latérales de la remorque. Les poutrelles Cargo ne sont pas cotées pour leur capacité, en raison des conditions variées de parois latérales de remorque. Les poutrelles de cargo ne devraient pas être placés proche une de l'autre en alignement vertical car l'installation d'une deuxième barre peut déserrer ou faire tomber la première barre et pourrait endommager la cargaison ou des blessures au conducteur ou un passant.
Warning Spanish:	BARRAS TIPO “JACK” - ADVERTENCIA: Las barras tipo Jack, no deben utilizarse para carga sobre ruedas, ya que este tipo de carga ejerce más fuerza cuando se desplaza durante el movimiento y puede causar falla en las barras de fricción. Para ello únicamente se recomienda el uso de barras de retención, para doble piso/retención, o ensambles de correas para asegurarla. El exceso de tensión en un sistema de trinquete puede causar daños en las paredes del remolque. Este tipo de barras no tiene carga límite de trabajo, debido a que las paredes de los remolques presentan condiciones variables. Las barras de carga no deben colocarse en una alineación vertical estrecha entre si ya que la instalación de una barra puede causar que la barra previamente instalada se afloje y / o caiga causando daños a la carga o lesiones a usted o un espectador.
