Kinedyne 84" - 95" Series E or A Aluminum Deck/Shoring Beam

Kinedyne 84" - 95" Series E or A Aluminum Decking/Shoring Beam

Product Code:

FE8066-1

UPC Code:

52474004183

Have Questions?

Fill out the form below

Here at Kinedyne, we've designed our Series E or A Aluminum Decking/Shoring Beam with KwikLatch Release Tab, adjusts from 84.6" to 95", to give you maximum strength with minimum weight. This Decking/Shoring Beam can handle a decking working load limit of 2,200 Lbs. / 1,000 Kgs. and a shoring working load limit of 2,000 Lbs. / 910 Kgs.

84-Inch to 95-Inch Series E or A Aluminum Deck/Shoring Beam

A quick and easy way to keep your trailer organized, Kinedyne's Series E or A Aluminum Decking/Shoring Beams can adjust from 84.6 inches to 95 inches, making it a good choice for your trailer. Keep your cargo separated and secure against this sturdy Beam.

What makes our Decking/Shoring Beam stand out among the rest is our unique KwikLatch Release Tab. Standard beams use a tab style button to release the beam from the track. This button extends past the top surface of the beam, making it prone to damage and difficult to engage while wearing gloves or while it's in an elevated position.

Our KwikLatch Release Tab is Kinedyne's solution to those problems. Our ergonomic finger tab is located on both sides of the beam head, making it less prone to damage and much easier to reach for releasing the beam, even if you're wearing gloves.

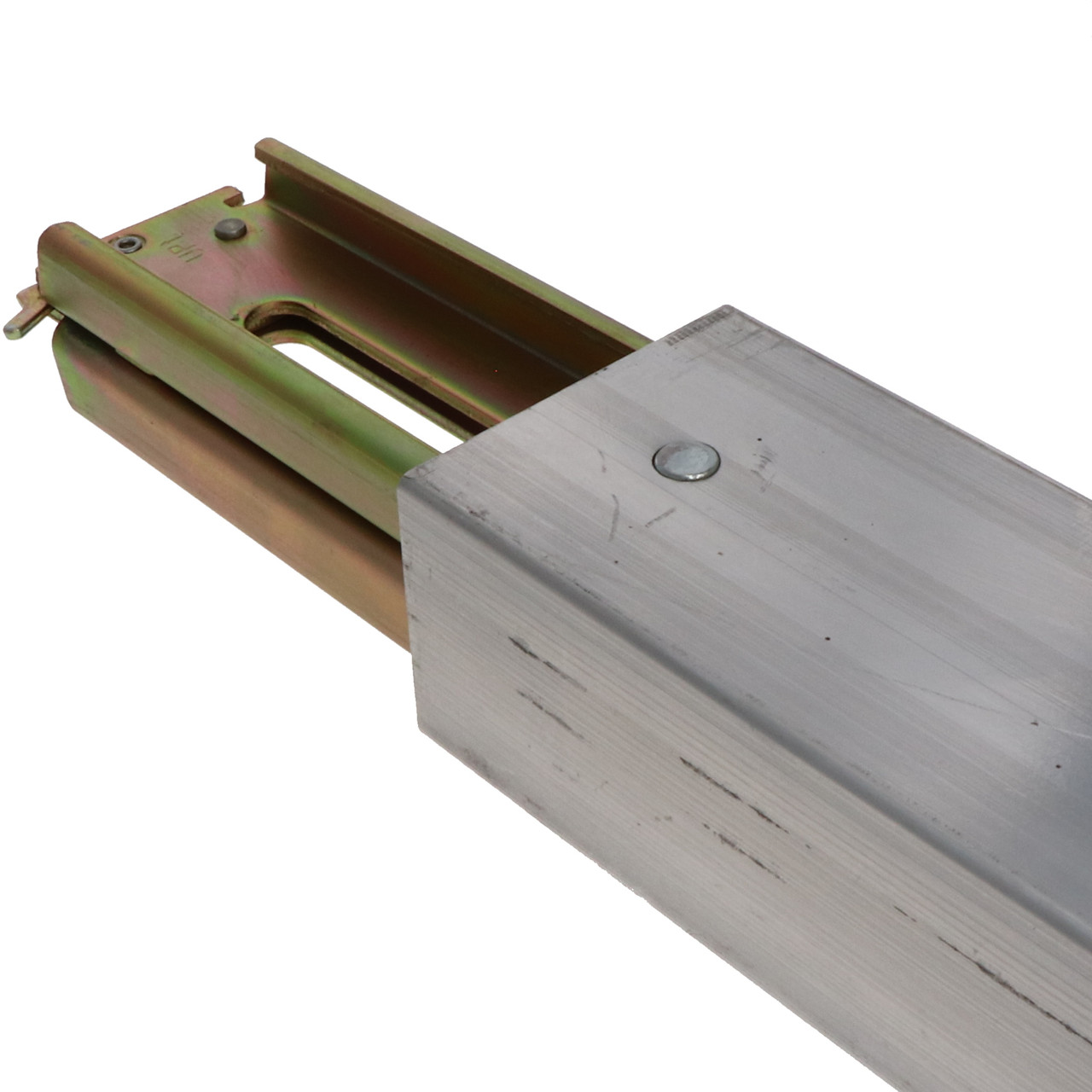

Our Series E or A Decking/Shoring Beam are made from extruded high strength aluminum in order to provide you with maximum strength at minimum weight. The head assembly is built tough from hardened steel with a zinc plated finish so that it can keep a firm hold with the Series E or A Track.

84" - 95" Series E or A Aluminum Decking/Shoring Beam – FE8066-1 Quick Specs:

For Trailer Size (Wide): 96 Inch Wide Trailers
Decking Working Load Limit: 2,200 Lbs. / 1,000 Kgs.
Shoring Working Load Limit: 2,000 Lbs. / 910 Kgs.
Series Type: Series E or A
Width: 2.57 Inches
Height: 3.22 Inches
Minimum Length: 84.6 Inches
Maximum Length: 95 Inches
Weight: 19.5 Lbs. / 8.8 Kgs.
Beam Head Assembly Type: Kinedyne 80007 KwikLatch Release Head Assembly

Specifications

Country of Origin:	USA
Height (inches):	3.2
Decking Working Load Limit (kgs):	998
Decking Working Load Limit (lbs):	2200
Beam Finish:	Natural Aluminum
Beam Head Assembly Finish:	Zinc Plated
Beam Head Assembly Material:	Hardened Steel
Beam Head Assembly Type:	Kinedyne 80007 Kwik Latch Release Head Assembly
Beam Material:	High Strength Aluminum
Shoring Working Load Limit (kgs):	907
Color:	Silver
Shoring Working Load Limit (lbs):	2000
Horizontal Application:	True
PROPOSITION 65:	No
Maximum Length (inches):	95
Minimum Length (inches):	84.6
Series A:	True
Series E:	True
Series Type:	Series E or A
Shipping Days:	3-5
Adjusts from min to max (inches):	85.6, 95
VMRS Cargo Restraints:	055-012-002
Weight (kgs):	9
UPC Code:	52474004183
Weight (lbs):	19.5
Trailer Width (inches):	96
Used with (Type of Logistic Track):	2019 2025 15547 15548 43001 43002 43003 43004 2019-060 2025-060 43002-060 FE702-01 FE725-01 FE702-01-060
Width (inches):	2.5
Vertical Application:	False

Packaging

Skid - GTIN:	20052474004187
Skid - Standard Pack Quantity:	4
Skid - Unit Quantity:	100
Standard Pack - GTIN:	10052474004180
Standard Pack - Unit Quantity:	25
Unit Packaging:	Individually

Notices & Warnings

Warning English:	SERIES E & A BEAMS - WARNING: Series E or A beams are designed for use with Kinedyne Logistic Track. Load ratings may be reduced when used with other tracks or if the track fitting is not positively engaged. Your cargo control system is only as strong as its weakest link. Do not overload beams or create a top-heavy, unstable trailer. Do not exceed statedWorking Load Limits of Beams. Dynamic loads must be considered to avoid possible overload of system. Actual pallet load supported by the beams in a decking application must not exceed 50% of the statedWorking Load Limit to allow for dynamic loads during transit.
Warning French:	POUTRELLES DE SÉRIE E ET A - AVERTISSEMENT: Poutrelles de Série E etA sont conçus pour être utilisés avec les rails Logistique de Kinedyne. La capacité de charge peut être réduite lorsque ces raccords sont utilisés avec d’autres rails ou lorsque le raccord n’est complètement verrouillé. Votre système d’arrimage est aussi fort que son maillon le plus faible.Ne pas surcharger pas les poutrelles, ne pas mettre trop de poids en hauteur, ce qui pourrait élever le centre de gravité et rendre la remorque instable. Ne pas dépasser la capacité de charge maximale des poutrelles. Les cargaisons dynamiques doivent être considérés pour éviter le surchargement du système. Le chargement actuel des palettes supporté par les poutrelles dans une application d'empilage de peuvent pas dépasser 50% de la charge maximale de la poutrelle pour permettre les cargaisons dynamiques en route.
Warning Spanish:	ADVERTENCIA: Barras Serie E yA están diseñados para utilizarse específicamente con el riel logístico de Kinedyne. Los índices de carga pueden reducirse al utilizar otros rieles o bien, si los accesorios de los rieles no están correctamente enganchados. Considere que su sistema de control de carga es tan fuerte solo como su eslabón más débil. Las barras no deben sobrecargarse, ya que el exceso de peso en la parte superior causa la inestabilidad del remolque.No exceda la carga límite de trabajo establecida de las barras. Se deben considerar cargas dinámicas para evitar la posible sobrecarga del sistema. Carga de paleta real apoyada por las barras en una aplicación de plataforma no debe exceder el 50% de la Carga Límite de Trabajo establecida para permitir cargas dinámicas durante el tránsito.
