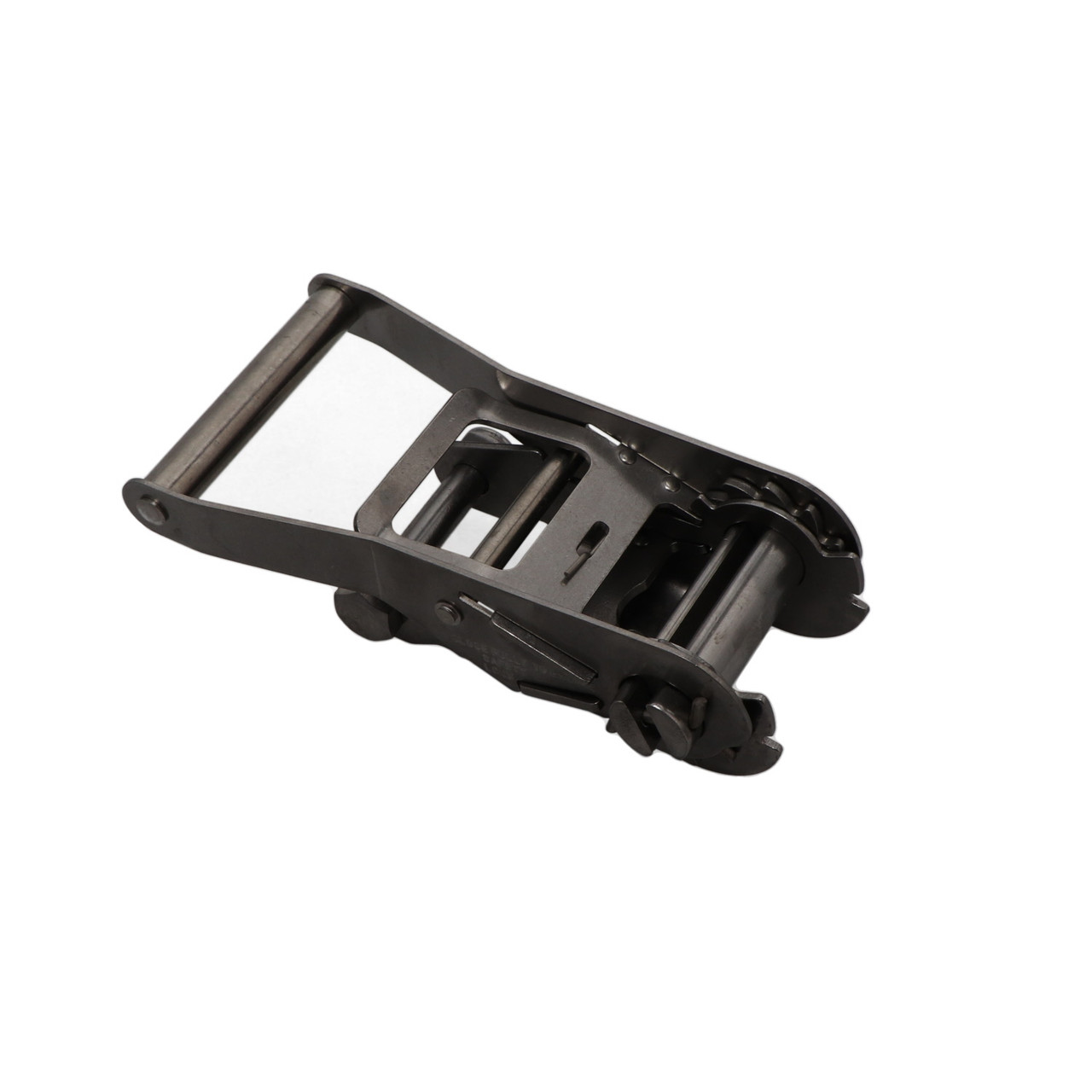

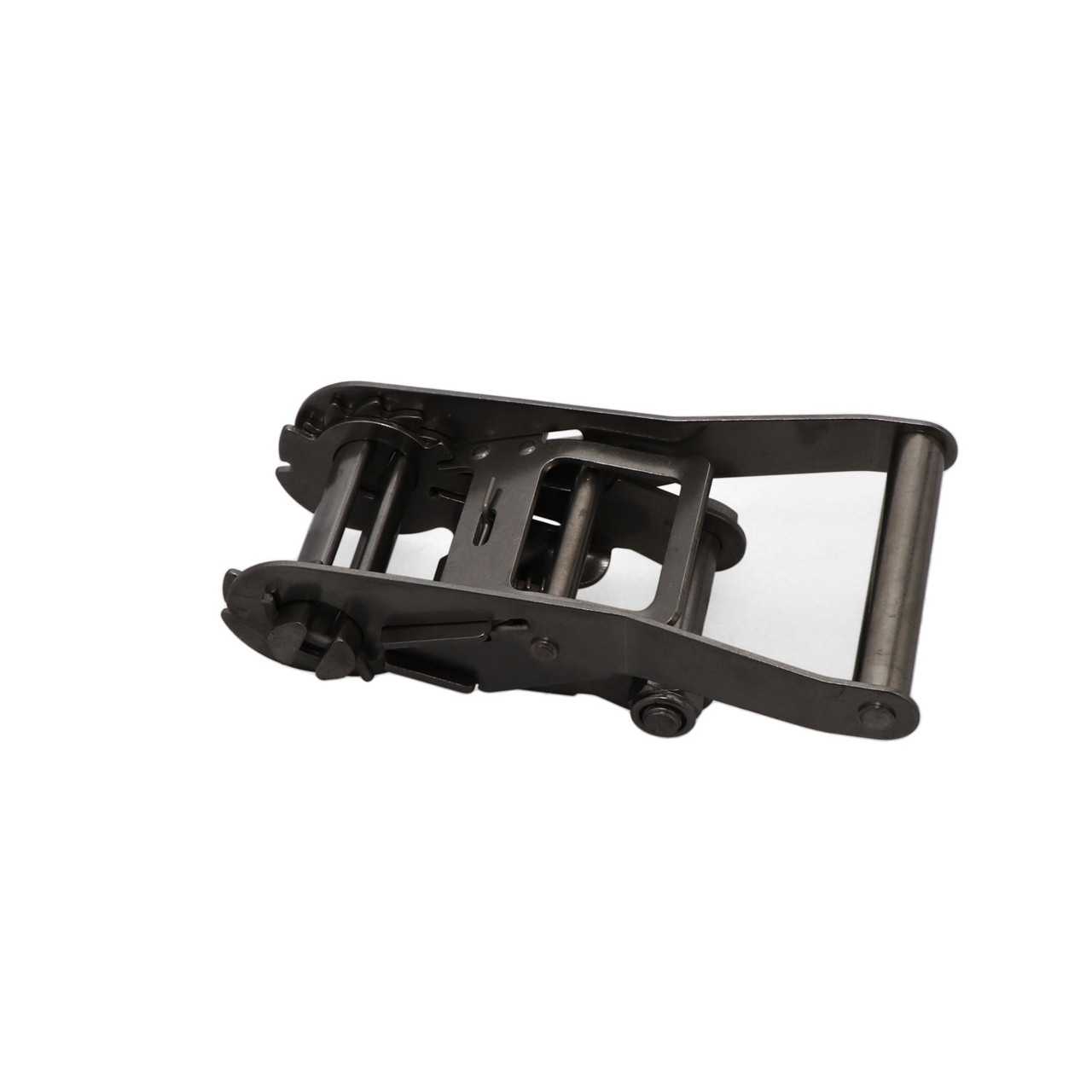

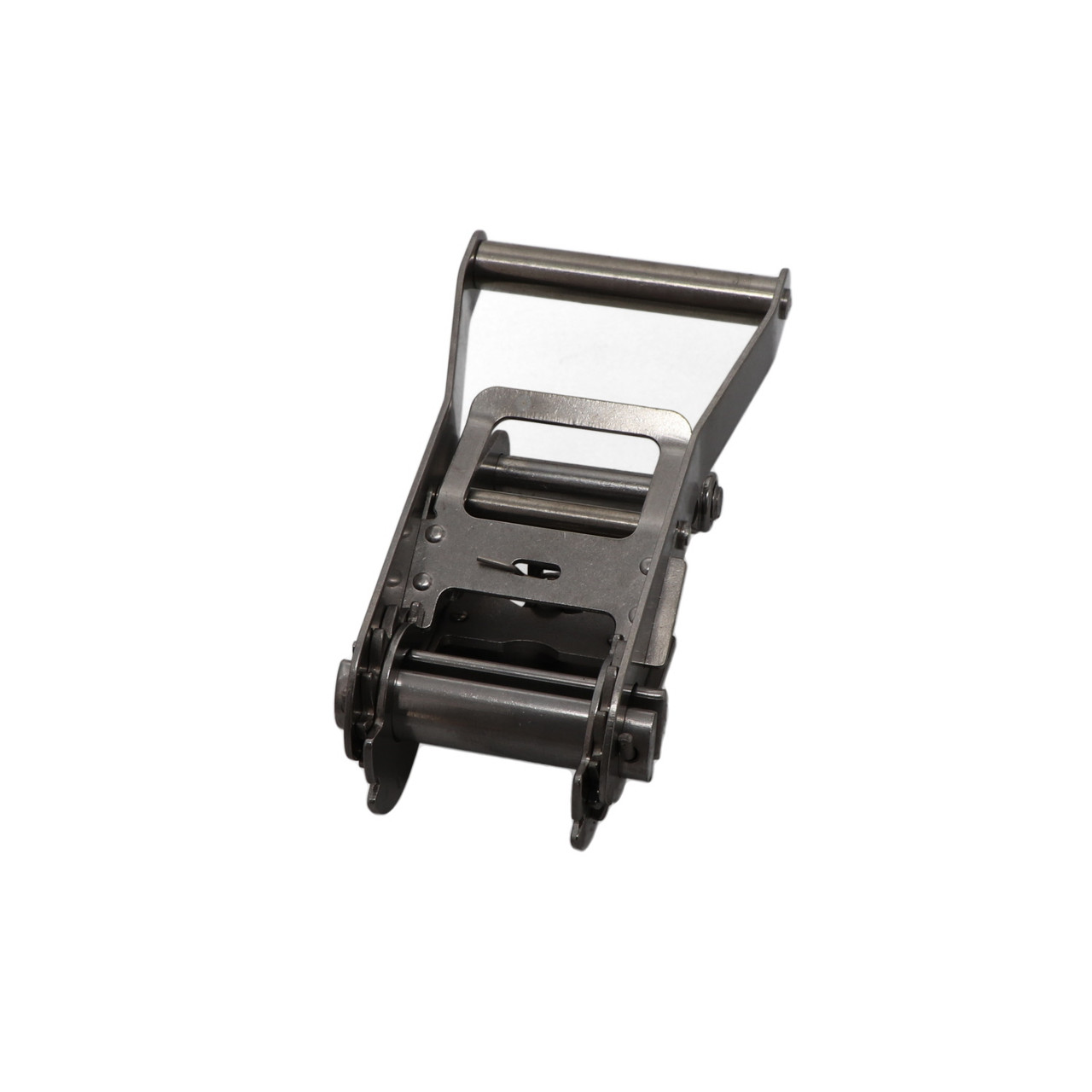

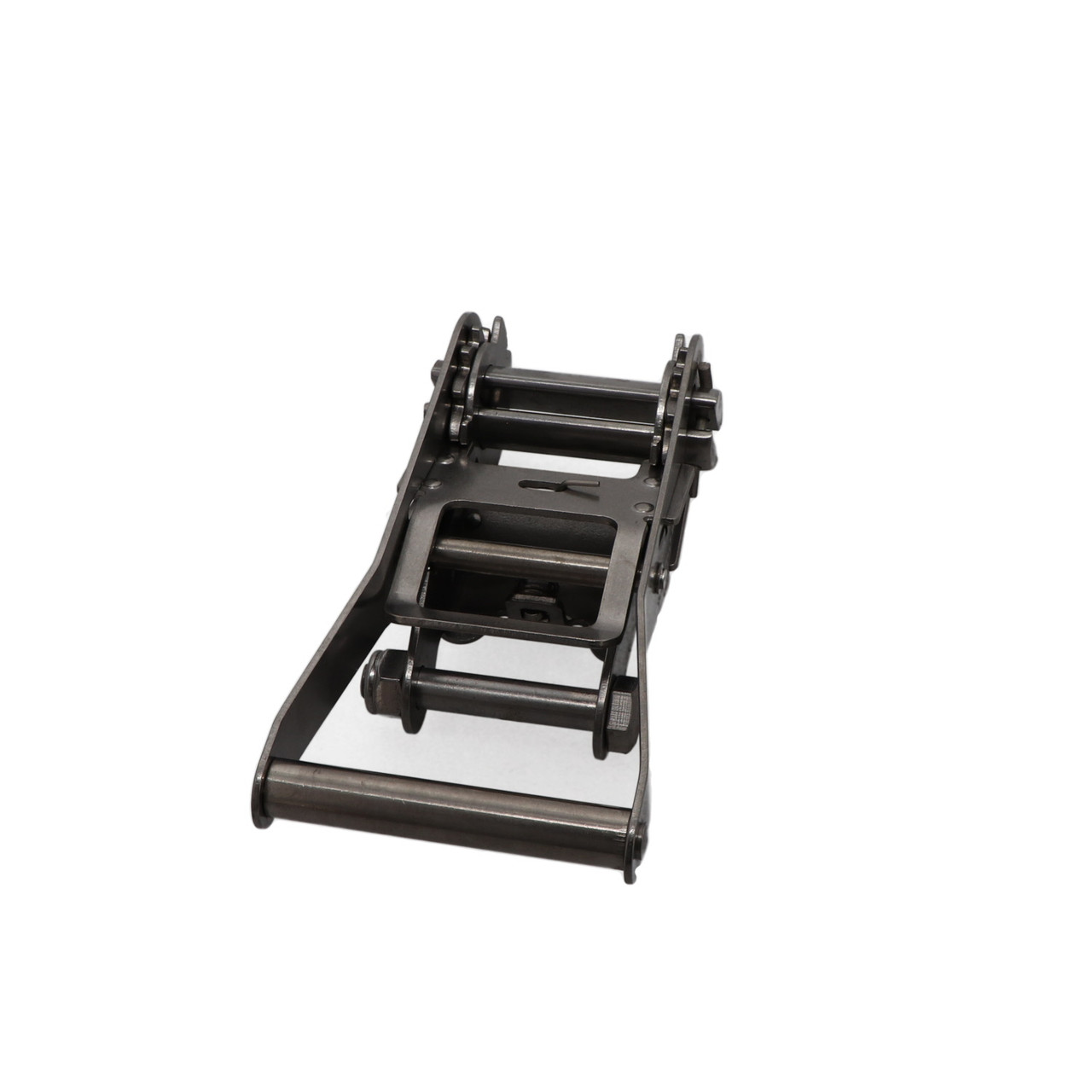

Kinedyne 2" Wide Handle Stainless Steel Ratchet

Product Code:

804SS

UPC Code:

52474003704

Have Questions?

Fill out the form below

For marine applications, our high-quality 2" Wide Handle Stainless Steel Ratchet is the ideal choice due to water-resistant stainless steel finish.

2-Inch Wide Handle Stainless Steel Ratchet

Heading out to the lake soon? You'll want to tie down that boat of yours with the reliable strength of Kinedyne's 2-inch Wide Handle Stainless Steel Ratchet. This sturdy Ratchet is made from heat-treated carbon steel for increased strength and is coated in a stainless steel finish that protects the tensioning device from rust, making it ideal for nearly any kind of marine tie down job. Our Wide Handle Ratchet provides a comfortable grip and a secure load.

2" Wide Handle Stainless Steel Ratchet – 804SS Quick Specs:

Working Load Limit: 2,935 Lbs. / 1,335 Kgs.
Size of Webbing: 2 Inches

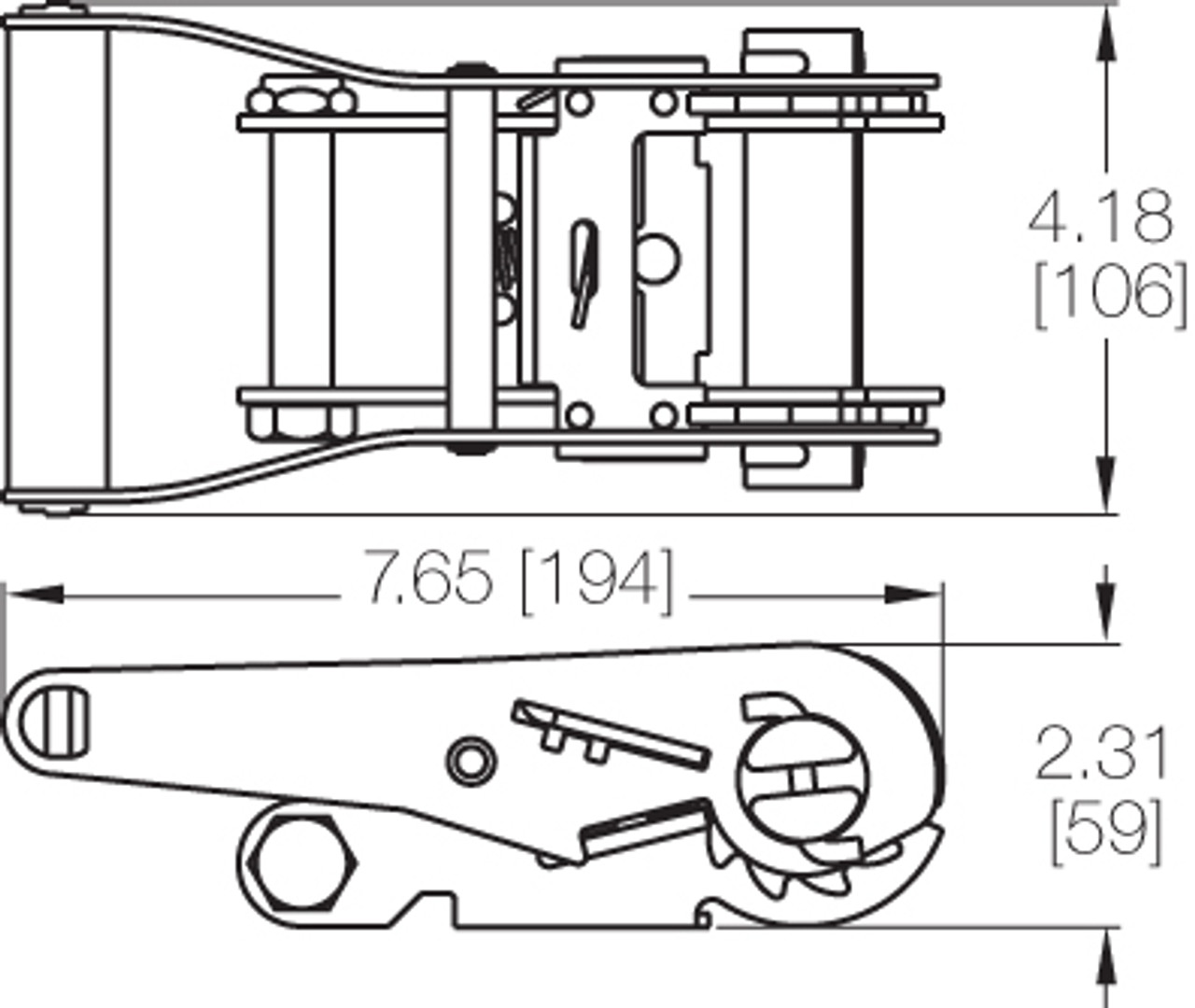

Overall Width: 4.18 Inches
Overall Height: 2.31 Inches
Overall Length: 7.65 Inches
Weight: 2.91 Lbs. / 1.32 Kgs.

Specifications

Country of Origin:	China
Breaking Strength (kgs):	3994
Breaking Strength (lbs):	8805
Finish:	Stainless Steel
NSN Number:	3990-01-497-5285
Color:	Silver
PROPOSITION 65:	No
Material:	Heat Treated Carbon Steel
Size of Webbing used with (inches):	2
Overall Height (inches):	23
Overall Length (inches):	76
Overall Width (inches):	41
Specification Met:	WSTDA-T-1 (Web Sling Tie-Down Association-T-1)
Shipping Days:	3-5
Note for Breaking Strength (added as a warning 1):	notes-all-rachet-buckles-assembly-rating
Weight (kgs):	132
UPC Code:	52474003704
Weight (lbs):	29
Working Load Limit (kgs):	1331
Working Load Limit (lbs):	2935

Packaging

Skid - GTIN:	20052474003708
Skid - Standard Pack Quantity:	9
Skid - Unit Quantity:	180
Standard Pack - GTIN:	10052474003701
Standard Pack - Unit Quantity:	20
Unit Packaging:	Individual

Notices & Warnings

Warning English:	TENSIONING OF CARGO CONTROL EQUIPMENT - To avoid over tensioning, always select and use Kinedyne specified equipment to tighten our products. Equipment compatibility is described in this catalog. This equipment has been designed to avoid over tensioning. Use of any unspecified leverage increasing device, such as a cheater bar, can generate enough force to break a piece of cargo control equipment during installation, release, or while in transit. The release of energy when a piece of cargo control equipment breaks can cause serious injury or death to you or bystanders. If you are having difficulty securing a load, make sure your cargo control equipment is in working order, or readjust or reposition your load.
Warning French:	LA TENSION DE L’ÉQUIPEMENT D’ARRIMAGE - Pour éviter d’appliquer une tension trop forte, utilisez toujours les outils spécifiés pour tendre nos produits. La compatibilité des équipements est décrite dans ce catalogue. Ces équipements ont été conçus pour éviter la surtension. L’utilisation de tout équipement pour accroitre l’effet de levier, comme une allonge, peut générer suffisamment de force pour briser une pièce d’équipement d’arrimage durant l'installation, le relâchement de cargaison ou même en route. L’énergie libérée par le bris d’une pièce d’équipement d’arrimage sous tension peut provoquer des blessures graves ou même la mort d’un passant ou de vous-même. Si vous éprouvez de la difficulté à arrimer une cargaison, assurez-vous que votre équipement d’arrimage est en bon état de fonctionnement, ou encore réajustez ou repositionnez votre cargaison.
Warning Spanish:	TENSIONANDO EL EQUIPO DE CONTROL DE CARGA - Para evitar la tensión excesiva, siempre seleccione y utilice equipos especificados por Kinedyne para ajustar nuestros productos. La compatibilidad de equipo esta descrita en este catálogo. Estos equipos fueron diseñados para evitar el exceso de tensión. El uso de cualquier dispositivo de apalancamiento no especificado, tal como una barra de extensión, puede generar la fuerza suficiente para romper alguna pieza del equipo de control de carga durante la instalación, liberación, omientras está en tránsito. La energía liberada cuando una pieza del equipo de control de carga se rompe, puede causar serias lesiones e incluso la muerte a usted o a cualquier persona alrededor. Si se presentan dificultades al momento de asegurar la carga, se debe verificar que el equipo de control de carga, esté funcionando correctamente, o bien, se debe reposicionar la carga.
