Kinedyne 2" Flat Delta Ring

Product Code:

1023

UPC Code:

52474001298

Have Questions?

Fill out the form below

Looking for a reliable end fitting to use with your vehicle's hooks? Why not give our strong 2" Flat Delta Ring a try? You'll witness its durability first hand.

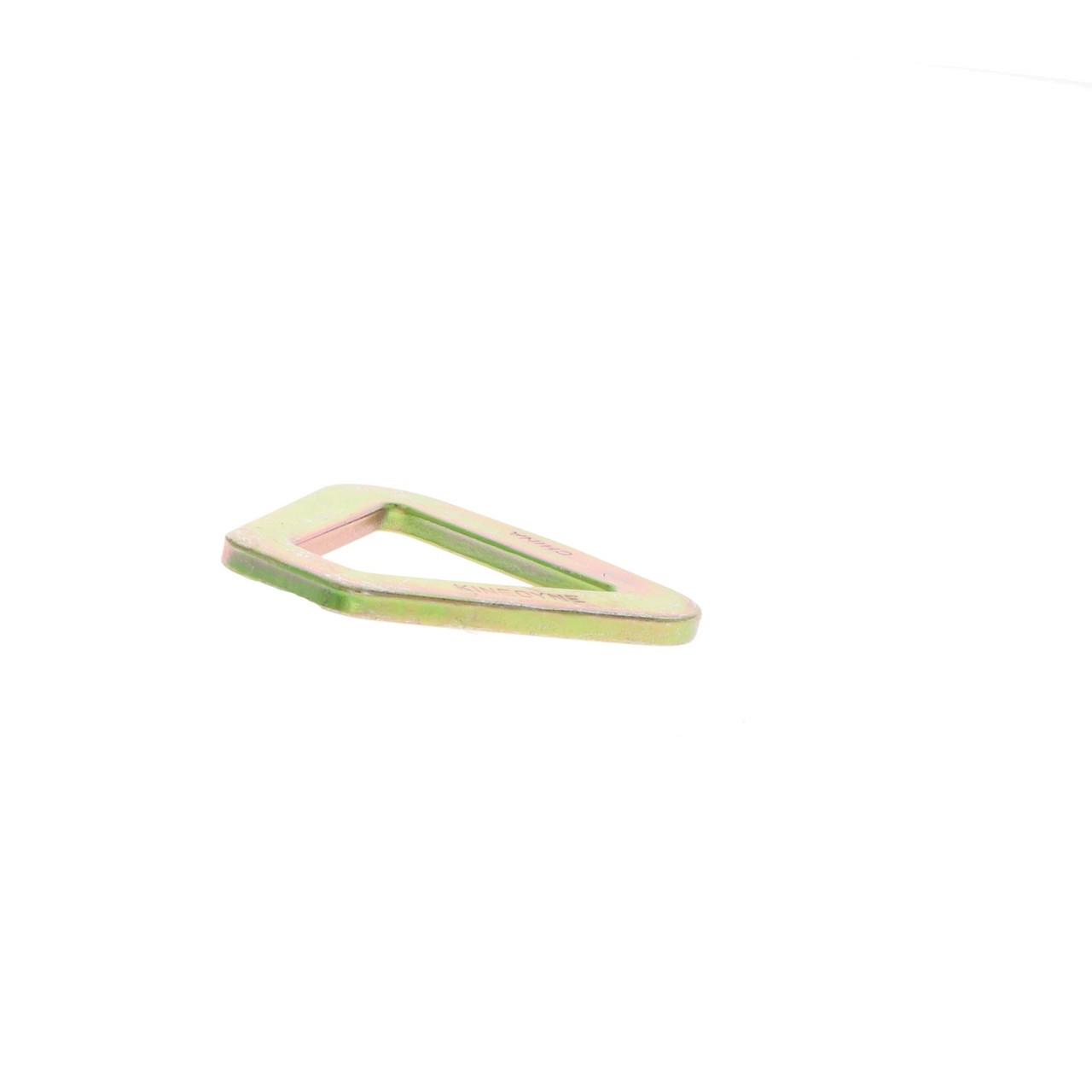

2-Inch Flat Delta Ring

For the tie down job that requires extra strength, whether it's agricultural, industrial, or personal, Kinedyne's 2-inch Flat Delta Ring is more than ready to handle the job with its working load limit of 3,335 Lbs. / 1,515 Kgs. This reliable end fitting can be used with your 2" Ratchet Strap or Winch Strap to create a strong tie down assembly that can help you easily secure your important load. Our Flat Delta Ring is manufactured from heat-treated carbon steel with a zinc plated finish.

2" Flat Delta Ring – 1023 Quick Specs:

Working Load Limit: 3,335 Lbs. / 1,515 Kgs.
Size of Webbing Used With: 2 Inches
Overall Width: 3.3 Inches
Overall Height: 3.1 Inches
Width of Webbing Slot: 2.13 Inches
Height of Webbing Slot: 1.96 Inches
Wire Thickness: 0.25 Inch
Weight: 0.32 Lbs. / 0.15 Kgs.

Specifications

Country of Origin:	China
Breaking Strength (kgs):	4536
Breaking Strength (lbs):	10000
Height of Webbing Slot (inches):	1.9
Finish:	Zinc Plated
NSN Number:	5365-01-421-2000
Color:	Gold Chromate
PROPOSITION 65:	No
Material:	Heat Treated Carbon Steel
Size of Webbing used with (inches):	2
Overall Height (inches):	3.1
Overall Width (inches):	3.3
Specification Met:	WSTDA-T-1 (Web Sling Tie-Down Association-T-1)
Shipping Days:	3-5
Width of Webbing Slot (inches):	2.1
Note for Breaking Strength (added as a warning 1):	notes-all-rings-assembly-rating
Wire Thickness (inches):	0.2
Weight (kgs):	0.14
UPC Code:	52474001298
Weight (lbs):	0.3
Working Load Limit (kgs):	1513
Working Load Limit (lbs):	3335

Packaging

Skid - GTIN:	20052474001292
Skid - Standard Pack Quantity:	9
Skid - Unit Quantity:	1800
Standard Pack - GTIN:	10052474001295
Standard Pack - Unit Quantity:	200
Unit Packaging:	Individual

Notices & Warnings

Warning English:	TENSIONING OF CARGO CONTROL EQUIPMENT - To avoid over tensioning, always select and use Kinedyne specified equipment to tighten our products. Equipment compatibility is described in this catalog. This equipment has been designed to avoid over tensioning. Use of any unspecified leverage increasing device, such as a cheater bar, can generate enough force to break a piece of cargo control equipment during installation, release, or while in transit. The release of energy when a piece of cargo control equipment breaks can cause serious injury or death to you or bystanders. If you are having difficulty securing a load, make sure your cargo control equipment is in working order, or readjust or reposition your load.
Warning French:	LA TENSION DE L’ÉQUIPEMENT D’ARRIMAGE - Pour éviter d’appliquer une tension trop forte, utilisez toujours les outils spécifiés pour tendre nos produits. La compatibilité des équipements est décrite dans ce catalogue. Ces équipements ont été conçus pour éviter la surtension. L’utilisation de tout équipement pour accroitre l’effet de levier, comme une allonge, peut générer suffisamment de force pour briser une pièce d’équipement d’arrimage durant l'installation, le relâchement de cargaison ou même en route. L’énergie libérée par le bris d’une pièce d’équipement d’arrimage sous tension peut provoquer des blessures graves ou même la mort d’un passant ou de vous-même. Si vous éprouvez de la difficulté à arrimer une cargaison, assurez-vous que votre équipement d’arrimage est en bon état de fonctionnement, ou encore réajustez ou repositionnez votre cargaison.
Warning Spanish:	TENSIONANDO EL EQUIPO DE CONTROL DE CARGA - Para evitar la tensión excesiva, siempre seleccione y utilice equipos especificados por Kinedyne para ajustar nuestros productos. La compatibilidad de equipo esta descrita en este catálogo. Estos equipos fueron diseñados para evitar el exceso de tensión. El uso de cualquier dispositivo de apalancamiento no especificado, tal como una barra de extensión, puede generar la fuerza suficiente para romper alguna pieza del equipo de control de carga durante la instalación, liberación, omientras está en tránsito. La energía liberada cuando una pieza del equipo de control de carga se rompe, puede causar serias lesiones e incluso la muerte a usted o a cualquier persona alrededor. Si se presentan dificultades al momento de asegurar la carga, se debe verificar que el equipo de control de carga, esté funcionando correctamente, o bien, se debe reposicionar la carga.
