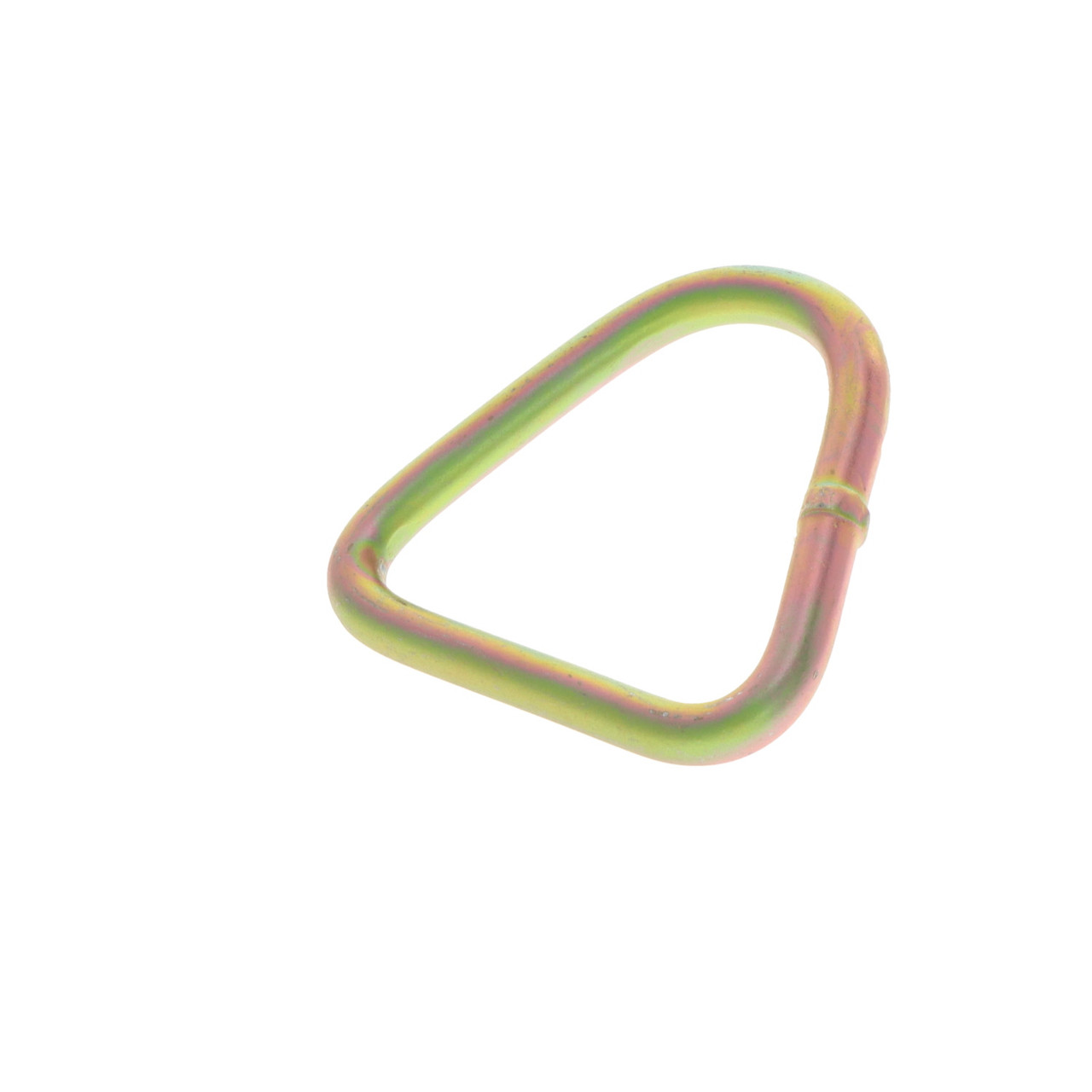

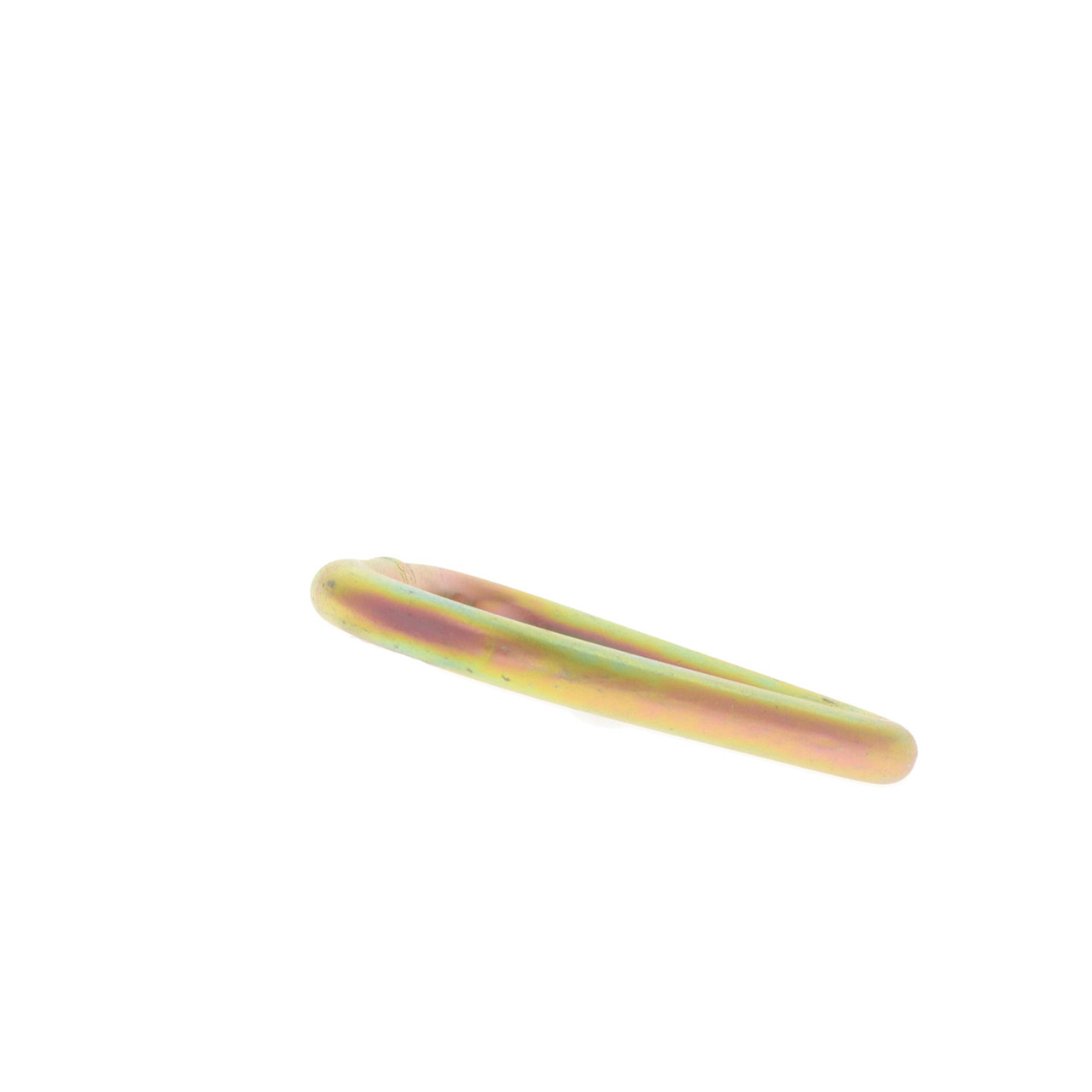

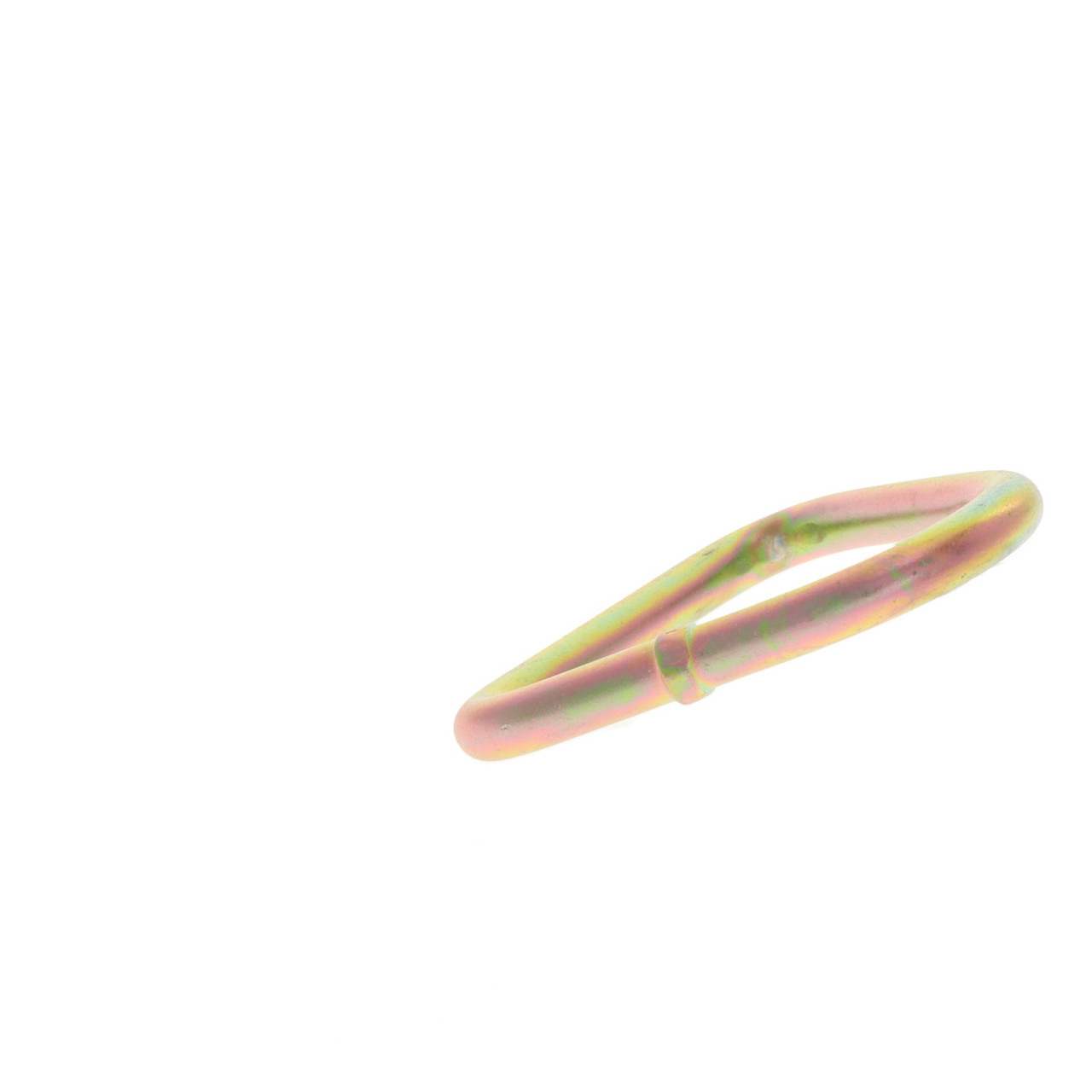

Kinedyne 2" D-Ring

Product Code:

1027

UPC Code:

52474001311

Have Questions?

Fill out the form below

Help keep your important cargo secure when you combine your straps with the strength of Kinedyne's 2" D-Ring that can handle a working load limit of 1,670 Lbs. / 757 Kgs.

2-Inch D-Ring

Designed for strength and durability, Kinedyne's 2-inch D-Ring is engineered to help provide you with a secure end fitting for your cargo tie-down job. This solid ring can easily slip onto your vehicle's hooks for quick securement, saving you some time while still providing a secure attachment. The reliable D-Ring can be used with 2-inch Ratchet and Winch Straps and is manufactured from heat-treated carbon steel and coated in a zinc plated finish to protect it against corrosion.

2" D-Ring – 1027 Quick Specs:

Working Load Limit: 1,670 Lbs. / 757 Kgs.
Size of Webbing Used With: 2 Inches
Overall Width: 2.61 Inches
Overall Height: 2.44 Inches
Width of Webbing Slot: 2.07 Inches
Height of Webbing Slot: 1.9 Inches
Wire Thickness: 0.27 Inch
Weight: 0.10 Lbs. / 0.05 Kgs.

Specifications

Country of Origin:	China
Breaking Strength (kgs):	2272
Breaking Strength (lbs):	5010
Height of Webbing Slot (inches):	1.9
Finish:	Zinc Plated
NSN Number:	5365-01-421-2001
Color:	Gold Chromate
PROPOSITION 65:	No
Material:	Heat Treated Carbon Steel
Size of Webbing used with (inches):	2
Overall Height (inches):	2.4
Overall Width (inches):	2.6
Specification Met:	WSTDA-T-1 (Web Sling Tie-Down Association-T-1)
Shipping Days:	3-5
Width of Webbing Slot (inches):	2
Note for Breaking Strength (added as a warning 1):	notes-all-rings-assembly-rating
Wire Thickness (inches):	0.2
Weight (kgs):	0.05
UPC Code:	52474001311
Weight (lbs):	0.1
Working Load Limit (kgs):	757
Working Load Limit (lbs):	1670
Used in Kinedyne Product:	660001, 660001PK, 660002, 660003, 660015, 660018

Packaging

Skid - GTIN:	20052474001315
Skid - Standard Pack Quantity:	50
Skid - Unit Quantity:	16000
Standard Pack - GTIN:	10052474001318
Standard Pack - Unit Quantity:	320
Unit Packaging:	Individual

Notices & Warnings

Warning English:	TENSIONING OF CARGO CONTROL EQUIPMENT - To avoid over tensioning, always select and use Kinedyne specified equipment to tighten our products. Equipment compatibility is described in this catalog. This equipment has been designed to avoid over tensioning. Use of any unspecified leverage increasing device, such as a cheater bar, can generate enough force to break a piece of cargo control equipment during installation, release, or while in transit. The release of energy when a piece of cargo control equipment breaks can cause serious injury or death to you or bystanders. If you are having difficulty securing a load, make sure your cargo control equipment is in working order, or readjust or reposition your load.
Warning French:	LA TENSION DE L’ÉQUIPEMENT D’ARRIMAGE - Pour éviter d’appliquer une tension trop forte, utilisez toujours les outils spécifiés pour tendre nos produits. La compatibilité des équipements est décrite dans ce catalogue. Ces équipements ont été conçus pour éviter la surtension. L’utilisation de tout équipement pour accroitre l’effet de levier, comme une allonge, peut générer suffisamment de force pour briser une pièce d’équipement d’arrimage durant l'installation, le relâchement de cargaison ou même en route. L’énergie libérée par le bris d’une pièce d’équipement d’arrimage sous tension peut provoquer des blessures graves ou même la mort d’un passant ou de vous-même. Si vous éprouvez de la difficulté à arrimer une cargaison, assurez-vous que votre équipement d’arrimage est en bon état de fonctionnement, ou encore réajustez ou repositionnez votre cargaison.
Warning Spanish:	TENSIONANDO EL EQUIPO DE CONTROL DE CARGA - Para evitar la tensión excesiva, siempre seleccione y utilice equipos especificados por Kinedyne para ajustar nuestros productos. La compatibilidad de equipo esta descrita en este catálogo. Estos equipos fueron diseñados para evitar el exceso de tensión. El uso de cualquier dispositivo de apalancamiento no especificado, tal como una barra de extensión, puede generar la fuerza suficiente para romper alguna pieza del equipo de control de carga durante la instalación, liberación, omientras está en tránsito. La energía liberada cuando una pieza del equipo de control de carga se rompe, puede causar serias lesiones e incluso la muerte a usted o a cualquier persona alrededor. Si se presentan dificultades al momento de asegurar la carga, se debe verificar que el equipo de control de carga, esté funcionando correctamente, o bien, se debe reposicionar la carga.
