Kinedyne 2" Cam Buckle w/ NAS Number NAS1211F20

2" Cam Buckle w/ NAS Number NAS1211F20

Product Code:

31100

UPC Code:

52474001946

Have Questions?

Fill out the form below

Kinedyne is offering our 2" Cam Buckle with NAS Number NAS1211F20 to provide you with a fast and efficient tie down method for your cargo securement jobs.

2-Inch Cam Buckle w/ NAS Number NAS1211F20

Engineered under our direct quality control, Kinedyne's 2-inch Cam Buckle with NAS Number is engineered to offer you the ideal amount of strength and flexibility in order to make your tie down job as smooth as it can be. This diecast zinc alloys and carbon steel zinc plated Cam Buckle can accommodate 2" sized webbing so it's good to use for your motorcycle, motorcross bike, or ATV tie downs. The Kinedyne 2" Cam Buckle is National Aerospace Standard compliant with an NAS Number of NAS1211F20.

2" Cam Buckle w/ NAS Number NAS1211F20– 31100 Quick Specs:

Working Load Limit: 835 Lbs. / 380 Kgs.
Size of Webbing: 2 Inches

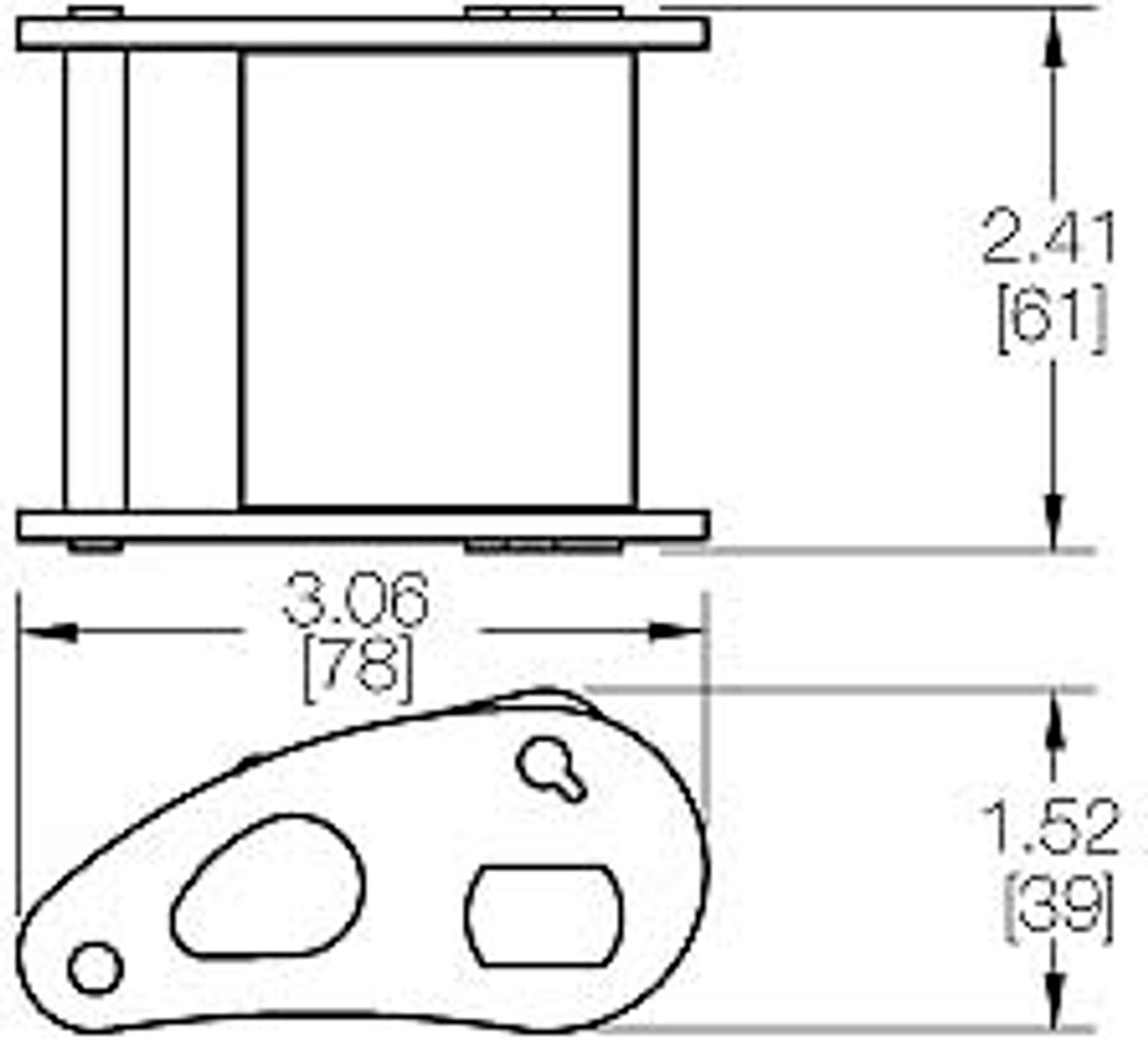

Overall Width: 2.41 Inches
Overall Height: 1.90 Inches
Overall Length: 3.05 Inches
Weight: 0.33 Lbs. / 0.15 Kgs.

Specifications

Country of Origin:	China
Breaking Strength (kgs):	1136
Breaking Strength (lbs):	2505
Finish:	Zinc Plated
Color:	Silver
PROPOSITION 65:	No
Material:	Diecast Zinc Alloys and Carbon Steel
Size of Webbing used with (inches):	2
Overall Height (inches):	19
Overall Length (inches):	3
Overall Width (inches):	2.4
NAS Number:	NAS1211F20
Specification Met:	WSTDA-T-1 (Web Sling Tie-Down Association-T-1)
Shipping Days:	3-5
Note for Breaking Strength (added as a warning 1):	notes-all-cam-buckles-assembly-rating
Weight (kgs):	13
UPC Code:	52474001946
Weight (lbs):	3
Working Load Limit (kgs):	379
Working Load Limit (lbs):	835

Packaging

Skid - GTIN:	20052474001940
Skid - Standard Pack Quantity:	200
Skid - Unit Quantity:	200
Standard Pack - GTIN:	10052474001943
Standard Pack - Unit Quantity:	1
Unit Packaging:	Individual

Notices & Warnings

Warning English:	TENSIONING OF CARGO CONTROL EQUIPMENT - To avoid over tensioning, always select and use Kinedyne specified equipment to tighten our products. Equipment compatibility is described in this catalog. This equipment has been designed to avoid over tensioning. Use of any unspecified leverage increasing device, such as a cheater bar, can generate enough force to break a piece of cargo control equipment during installation, release, or while in transit. The release of energy when a piece of cargo control equipment breaks can cause serious injury or death to you or bystanders. If you are having difficulty securing a load, make sure your cargo control equipment is in working order, or readjust or reposition your load.
Warning French:	LA TENSION DE L’ÉQUIPEMENT D’ARRIMAGE - Pour éviter d’appliquer une tension trop forte, utilisez toujours les outils spécifiés pour tendre nos produits. La compatibilité des équipements est décrite dans ce catalogue. Ces équipements ont été conçus pour éviter la surtension. L’utilisation de tout équipement pour accroitre l’effet de levier, comme une allonge, peut générer suffisamment de force pour briser une pièce d’équipement d’arrimage durant l'installation, le relâchement de cargaison ou même en route. L’énergie libérée par le bris d’une pièce d’équipement d’arrimage sous tension peut provoquer des blessures graves ou même la mort d’un passant ou de vous-même. Si vous éprouvez de la difficulté à arrimer une cargaison, assurez-vous que votre équipement d’arrimage est en bon état de fonctionnement, ou encore réajustez ou repositionnez votre cargaison.
Warning Spanish:	TENSIONANDO EL EQUIPO DE CONTROL DE CARGA - Para evitar la tensión excesiva, siempre seleccione y utilice equipos especificados por Kinedyne para ajustar nuestros productos. La compatibilidad de equipo esta descrita en este catálogo. Estos equipos fueron diseñados para evitar el exceso de tensión. El uso de cualquier dispositivo de apalancamiento no especificado, tal como una barra de extensión, puede generar la fuerza suficiente para romper alguna pieza del equipo de control de carga durante la instalación, liberación, omientras está en tránsito. La energía liberada cuando una pieza del equipo de control de carga se rompe, puede causar serias lesiones e incluso la muerte a usted o a cualquier persona alrededor. Si se presentan dificultades al momento de asegurar la carga, se debe verificar que el equipo de control de carga, esté funcionando correctamente, o bien, se debe reposicionar la carga.
