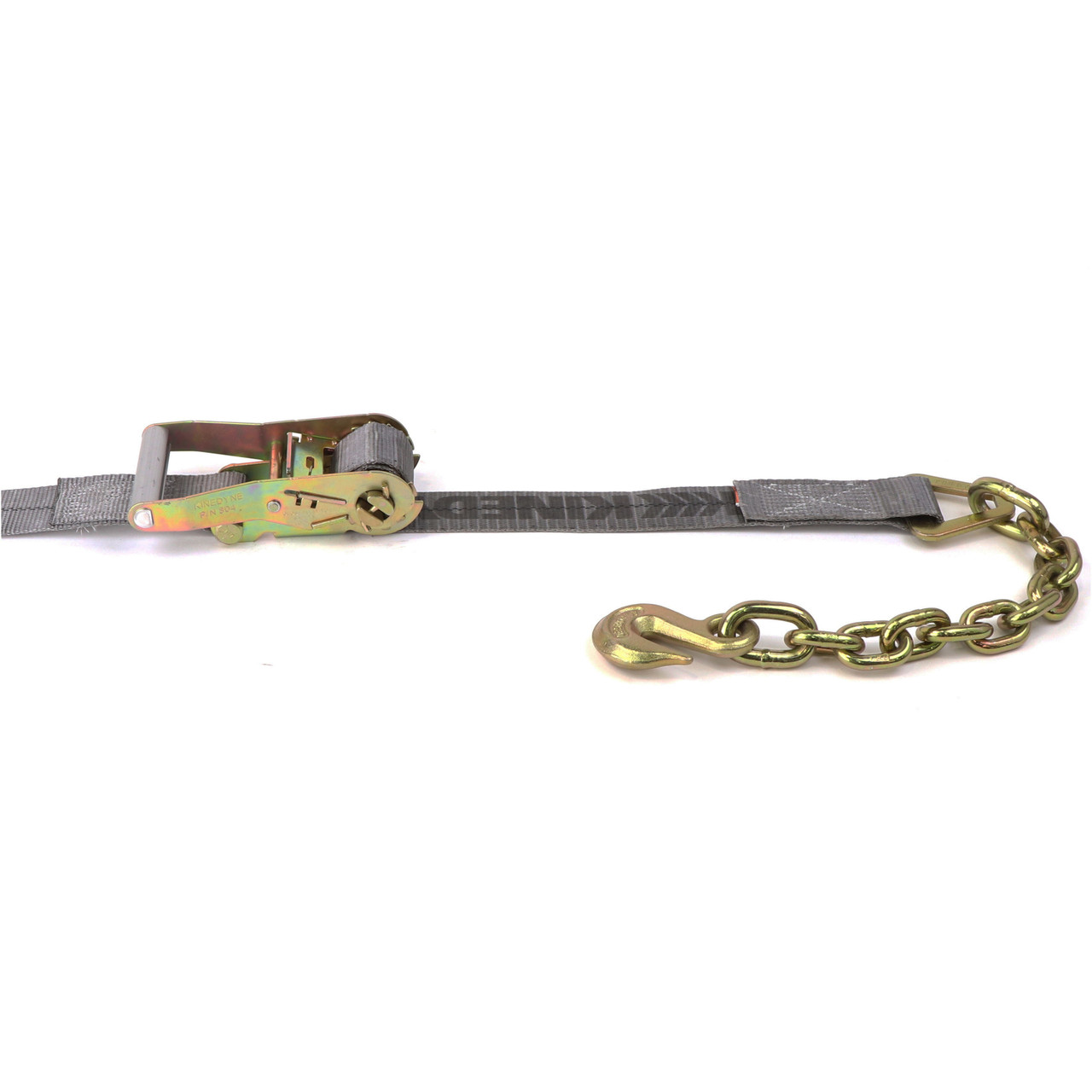

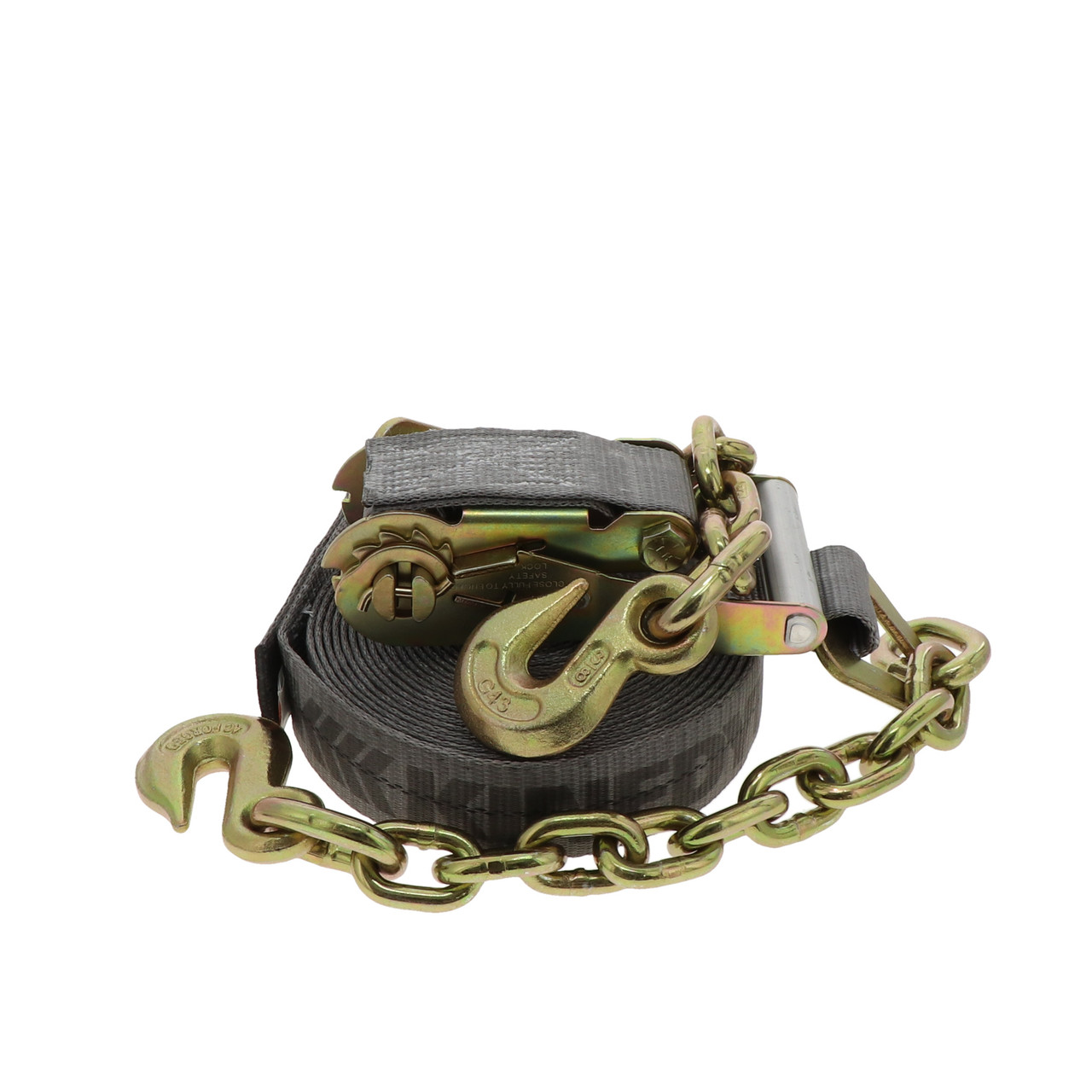

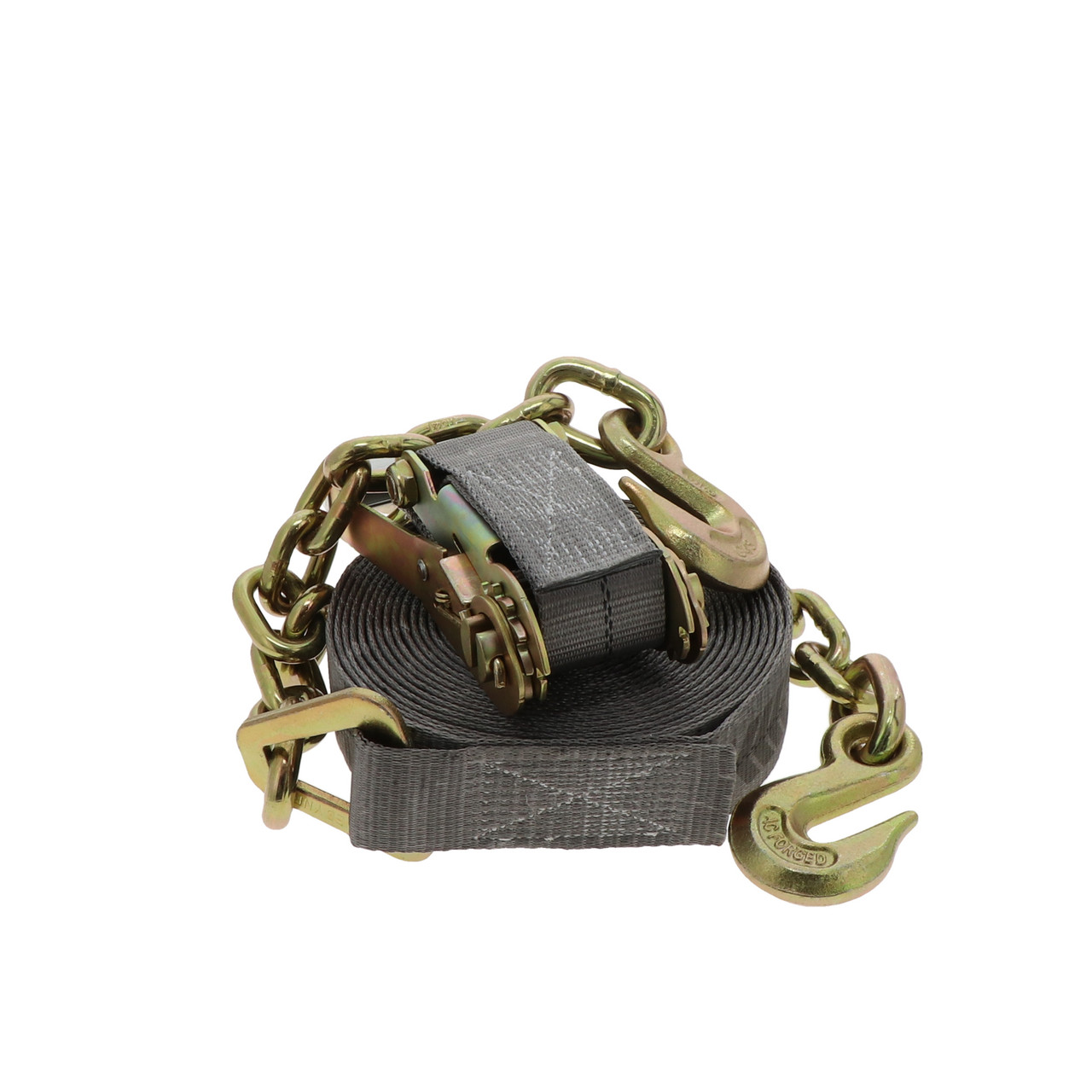

Kinedyne 2" x 30' Rhino MAX Chain Anchor Ratchet Strap

Kinedyne 2" by 30' Rhino MAX Chain Anchor Ratchet Strap

Product Code:

5630D5

UPC Code:

52474023641

Have Questions?

Fill out the form below

With a working load limit of 4,000 Lbs. / 1,814 Kgs., the Kinedyne 2" x 30' Rhino MAX Chain Anchor Ratchet Strap goes beyond the industry standard to give you peace of mind knowing that your cargo is secured. When you want heavy-duty jobs done right, you need Rhino MAX's tough wide handle ratchet to handle the job.

2-Inch x 30-Foot Rhino MAX Chain Anchor Ratchet Strap

Which member of the animal kingdom is known for its toughness? None other than the one mammal who charges toward any challenge, ready to face it head on. That's exactly what our 2" x 30' Rhino MAX Chain Anchor Ratchet Strap is engineered to do: utilize its 4,000 Lbs. / 1, 814 Kgs. working load limit to meet challenges head on.

The combination of our abrasion-resistant coated Kinedyne Rhino MAX 2054G polyester webbing with 18-inch Grade 43 Kinedyne 80181 Chain Anchors with 3/8-inch grab hooks means that your cargo will remain secure even during the harshest roadway conditions and in the most severe environments.

The gold dichromate Kinedyne 804 wide handle ratchet is engineered with the user in mind. It comes with a comfortable grip that allows you to fasten your straps with ease. No more struggling to get your straps as tight as you want them. The zinc plated finish also protects both the ratchet and the end fittings from corrosion, so there's no need to replace this Ratchet Strap as often.

All our Ratchet Straps are labeled with the Kinedyne name and logo and are stenciled with the working load limit to meet DOT regulations, CVSA, CHP, WSTDA recommended standards, and North American Cargo Securement standards.

2" by 30' Rhino MAX Chain Anchor Ratchet Strap – 5630D5 Quick Specs:

Working Load Limit: 4,000 Lbs. / 1,814 Kgs.
Width: 2 Inches
Length: 30 Feet
Weight: 11.07 Lbs. / 5.0 Kgs.
Webbing: Kinedyne Rhino MAX 2054G Webbing
Fixed End Length: 18 Inches
Type of Tension Device: Kinedyne 804 Wide Handle Ratchet
End Fitting: Kinedyne 80181 Chain Anchor – 18 Inches

Specifications

Breaking Strength - Assembly (lbs):	12000
End Fittings Color:	Gold Dicromate
End Fittings Finish:	Zinc Plated
End Fittings Material:	Heat Treated Carbon Steel
Country of Origin:	China/Canada
Family:	Rhino MAX
Fixed End Length (inches):	18
Color:	Rhino MAX Grey with Black Edges
PROPOSITION 65:	No
Rating Tag:	Tyvek Tag marked with Manufacturers Name, Working Load Limit in Pounds and Kilograms in accordance to North American Regulations
Kinedyne K-Force Abrasion Coating:	False
Kinedyne Rhino Abrasion Coating:	True
Length (feet):	30
Specification Met:	WSTDA (web sling tie down association)
Sew Pattern:	Engineered to match webbing and hardware
Shipping Days:	3-5
VMRS Cargo Restraints:	055-012-010
Note for Breaking Strength (added as a warning 1):	notes-all-rachet-strap-assembly-rating
Tension Device Finish:	Zinc Plated
Note for Breaking Strength (added as a warning 2):	notes-all-rachet-strap-assembly-rating
Tension Device used with what size webbing:	2
Note for Breaking Strength (added as a warning 3):	notes-all-rachet-strap-assembly-rating
Tensioning Device Color:	Gold Dicromate
Note for Breaking Strength (added as a warning 4):	notes-all-rachet-strap-assembly-rating
Tensioning Device Material:	Heat Treated Carbon Steel
Type of End Fittings:	Kinedyne 80181 Chain Anchor - 18 inches
Warning Tag:	Trilingual (English, French and Spanish)
Webbing:	Kinedyne Rhino MAX 2054G Webbing
Webbing Material:	Polyester
Working Load Limit - Assembly (kgs):	1814
Working Load Limit - Assembly (lbs):	4000
Type of Tension Device:	Kinedyne 804 wide Handle Ratchet
Weight (kgs):	5
UPC Code:	52474023641
Weight (lbs):	11
Stencil Working Load Limit:	Stenciled with Manufacturers Name, Working Load Limit in Pounds and Kilograms in accordance to North American Regulations, every 30 inches
Width (inches):	2
WSTDA Indicator Line:	WSTDA (web sling tie down association) Capacity Indicator Line - 2 red line which represents 6000 Lbs. per inch across webbing

Packaging

Skid - GTIN:	20052474023645
Skid - Standard Pack Quantity:	20
Skid - Unit Quantity:	160
Standard Pack - GTIN:	10052474023648
Standard Pack - Unit Quantity:	8
Unit Packaging:	Individually rolled and banded

Notices & Warnings

Warning English:	WARNING: Only trained, knowledgeable personnel should use tie-down straps. It is the operator’s responsibility to use appropriate type and number of straps for the load being secured. Webbing straps must be protected when used on rough or sharp objects. Straps that are cut, worn or damaged shall not be used and shall be replaced immediately. All strap assemblies shall be inspected prior to each use. The use of “Cheater bars” or other means of increasing leverage on a ratchet buckle handle or winch, other than a Kinedyne approved device, can cause serious injury to the user and/or bystander. Webbing straps are rated for use in a temperature range from +194 degrees F (+90°C) to -40 degrees F (-40°C). Straps should be stored out of direct sun and away from damaging chemicals when not in use. Ensure load is stable before tightening or releasing tension in a strap assembly.
Warning French:	AVERTISSEMENT : Seulement un personnel qualifié et instruit devrait se servir des courroies d’arrimage. Il est de la responsabilité de l’opérateur d’assurer l’utilisation du bon nombre et genre de courroie d’arrimage pour le type de cargaison étant sécurisée. Les courroies et sangles doivent être protégées lorsqu’elles sont utilisées sur des objets abrasifs ou coupants. Les courroies coupées, usées ou endommagées ne doivent pas être utilisées et doivent être remplacées immédiatement. Tout ensemble de courroie doit être inspecté avant chaque utilisation. L’utilisation d’une rallonge ou autre moyen d’accroître l’effet de levier d’une poignée à boucle à cliquet ou d’un treuil, autre qu’un outil approuvé par Kinedyne, peut causer des blessures graves à l’utilisateur ou un passant. Les courroies tissées sont calibrées pour des températures allant de + 194 degrés F (+90°C) à -40 degrés F (-40°C). Les sangles devraient être rangée hors du soleil et loin des produits chimiques nuisibles lorsqu’elles ne sont pas en utilisation.Assurez-vous que la cargaison est stable avant d’arrimer ou de relâcher la tension d’une courroie d’arrimage.
Warning Spanish:	ADVERTENCIA: Solo el personal entrenado y bien informado debe usar correas de amarre. Es responsabilidad del operador utilizar un tipo y numero de correas apropiados para la carga que se asegura. Las correas deben protegerse cuando se utilizan sobre objetos ásperos o cortantes. Las correas cortadas, desgastadas o dañadas no deben ser utilizadas y deben sustituirse inmediatamente.Todos los ensambles de correa deben inspeccionarse antes de ser utilizados. El uso de dispositivos no aprobados por Kinedyne, tales como alguna barra de extensión o alguna otra herramienta para aumentar el apalancamiento en un trinquete omalacate, puede causar serios daños al operario o a cualquier persona alrededor. Las correas están diseñadas para ser utilizadas dentro de un rango de temperatura que va de los +194°F (+90°C) hasta -40°F (-40°C). Los conjuntos deben almacenarse fuera del sol directo y lejos de productos químicos dañinos cuando no esten en uso.Asegúrese de que la carga sea estable antes de apretar o liberar la tensión en un conjunto de correa.
