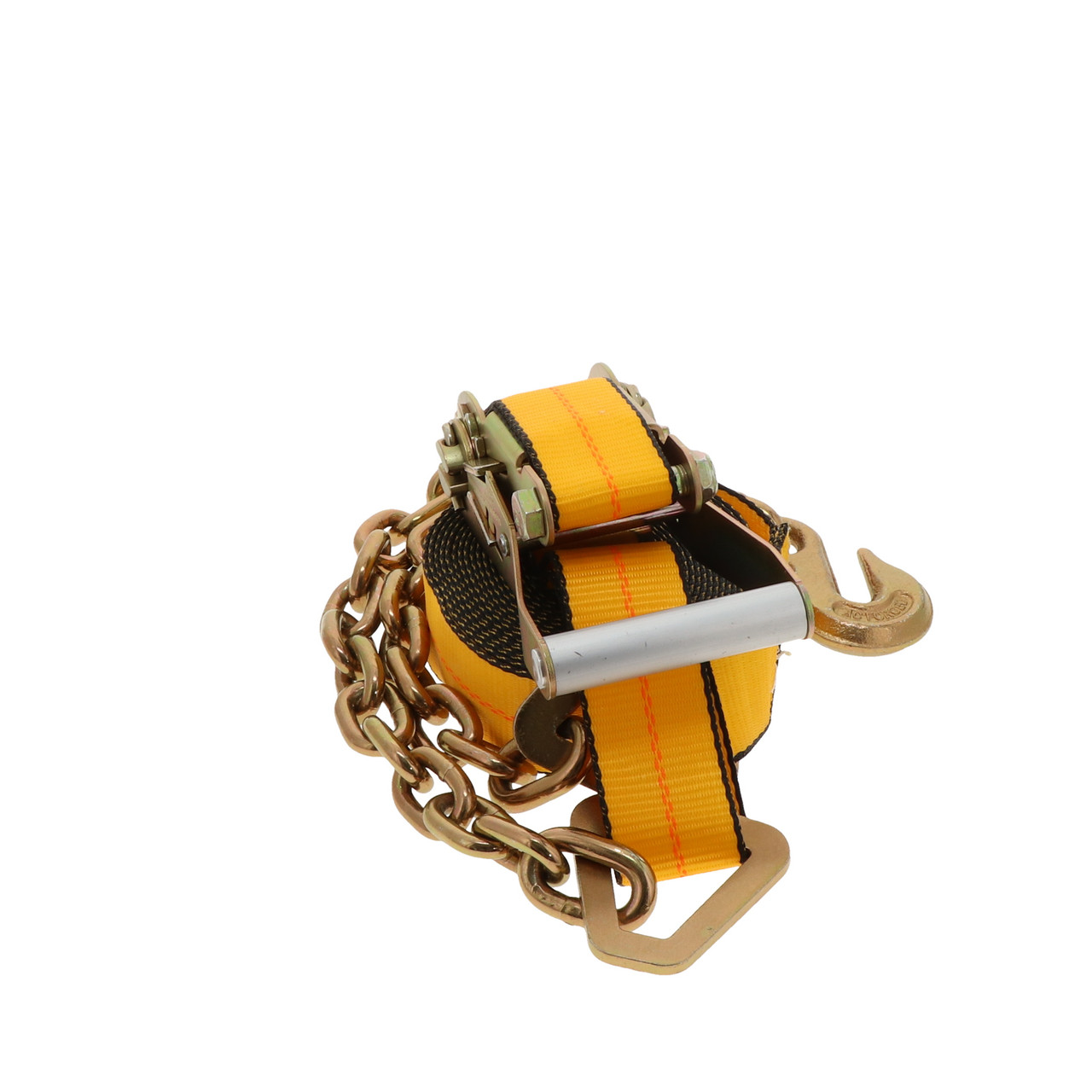

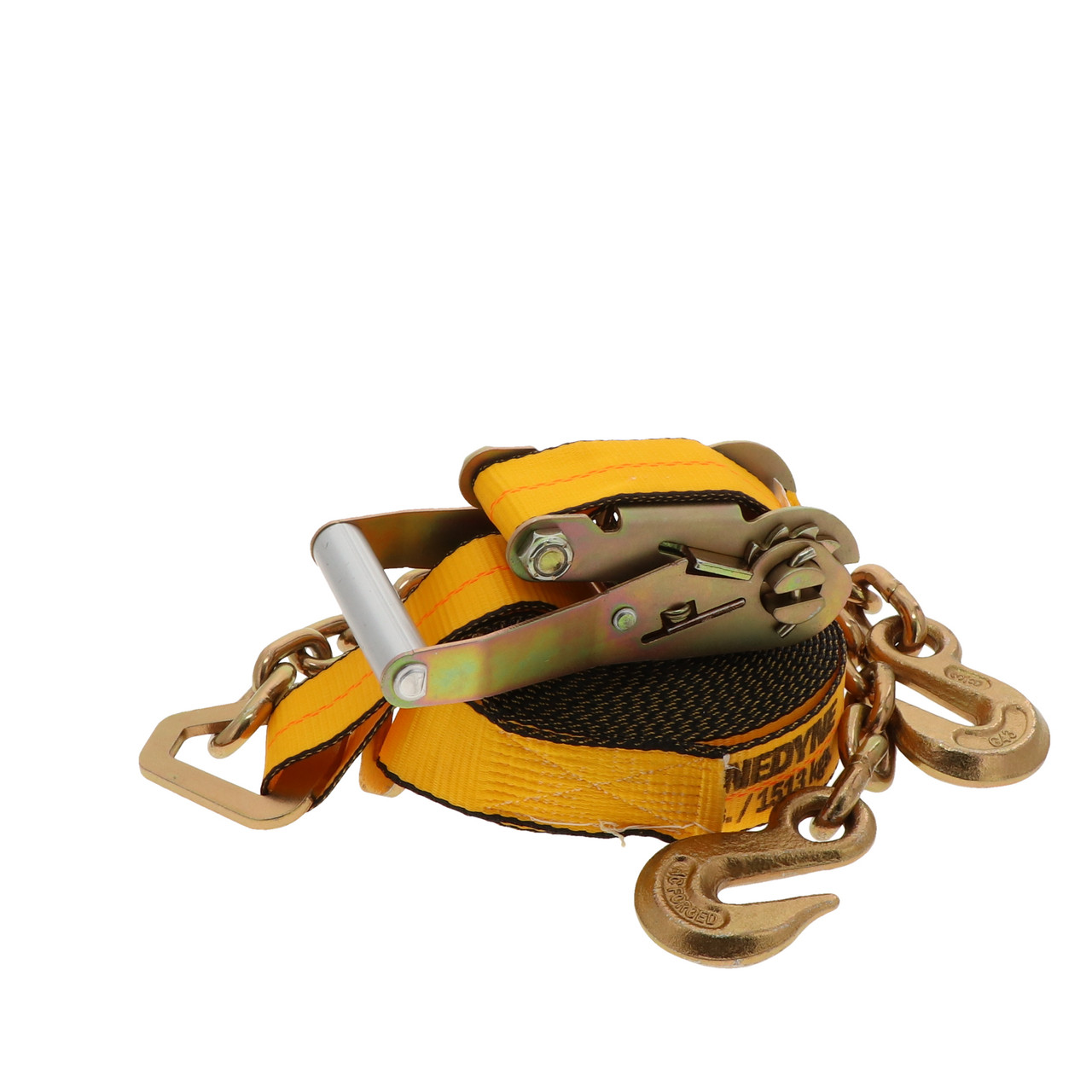

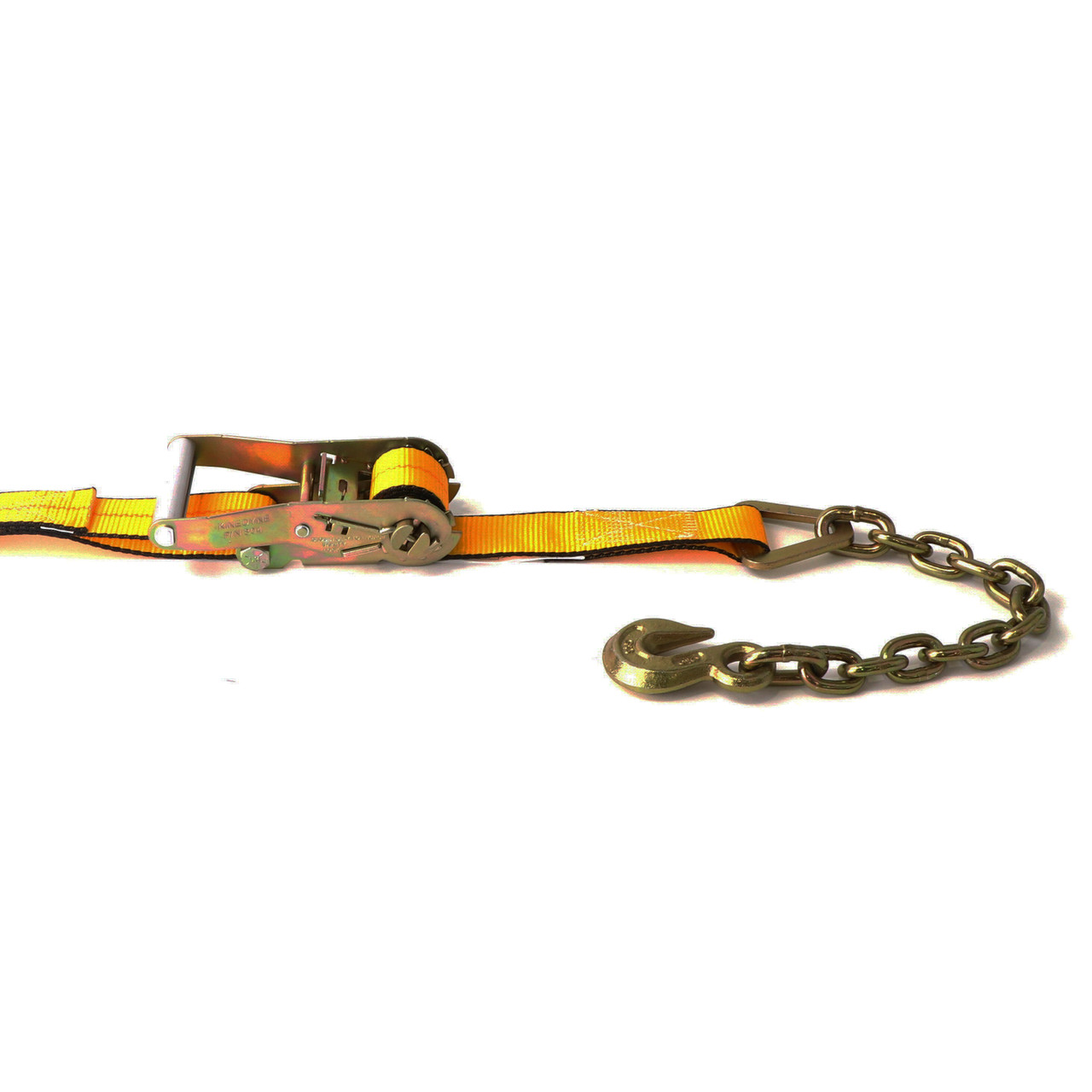

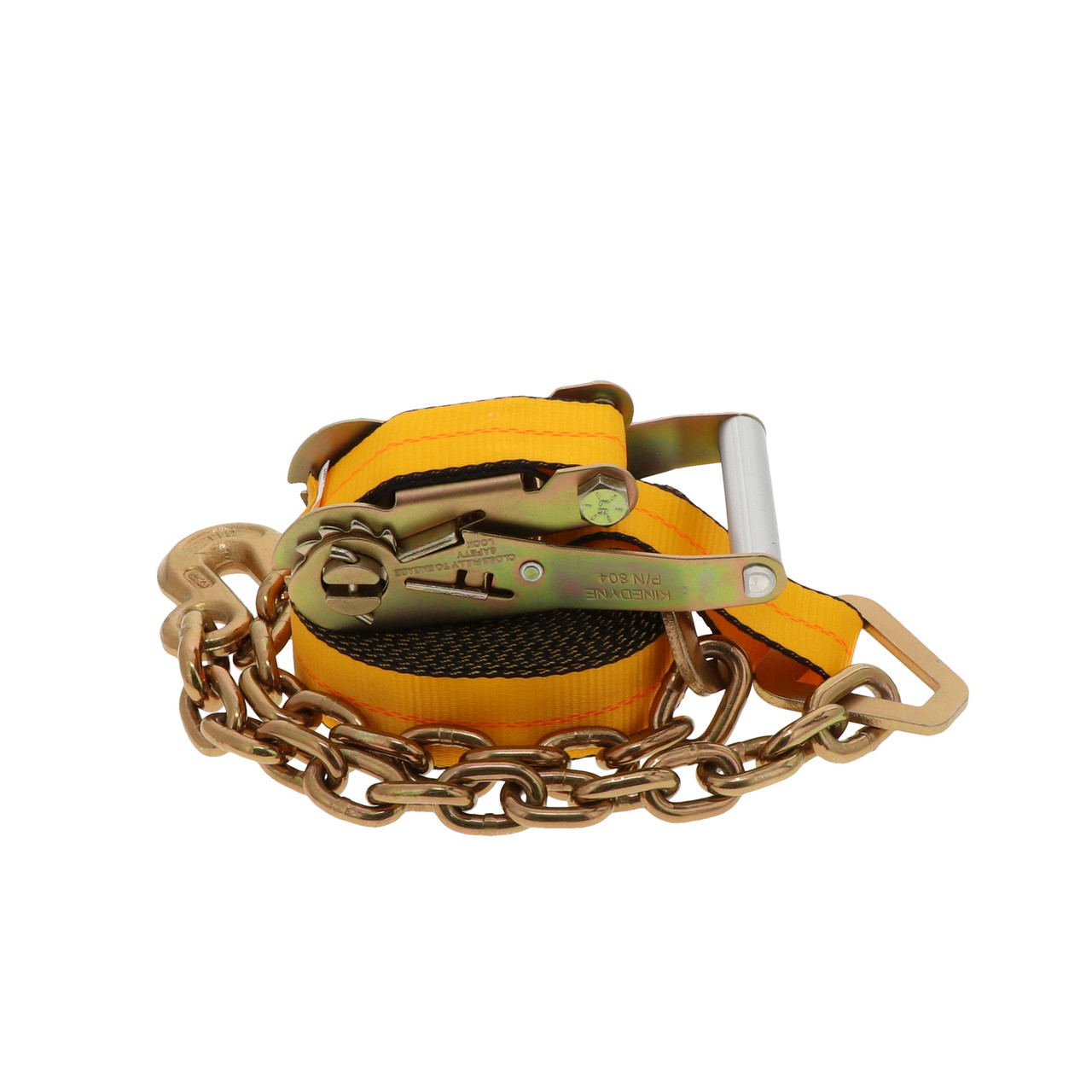

Kinedyne 2" x 27' Chain Anchor Ratchet Strap

Kinedyne 2" by 27' Chain Anchor Ratchet Strap

Product Code:

512739

UPC Code:

52474002769

Have Questions?

Fill out the form below

The heavy-duty Kinedyne-manufactured 2" x 27' Chain Anchor Ratchet Strap is ideal for truckers who are looking for a more reliable way to secure their load. This assembly has a working load limit of 3,335 Lbs. / 1,513 Kgs. Our tight polyester webbing combined with our zinc plated wide handle ratchet keep your load in place.

2-Inch x 27-Foot Chain Anchor Ratchet Strap

From lumber to steel pipe, our 2-inch x 27-foot Chain Anchor Ratchet Strap is the most reliable way to go when it comes to securing and hauling your cargo. This assembly has a working load limit of 3,335 Lbs. / 1,513 Kgs.

Our 2" by 27'Chain Anchor Ratchet Strap is engineered for longevity, even under harsh conditions. The heat-treated carbon steel end fittings are coated in a zinc plated gold dichromate while the webbing is weaved with premium polyester. This is an ideal choice for many tie-down applications.

Our heat-treated carbon steel chains with unbending Anchor Hooks are manufactured to ensure stability and durability. The wide handle Ratchet Strap with a fixed end length of 18" and a weight of 9.62 Lbs. / 4.4 Kgs. is combined with versatile 5/16-inch Grade 43 Kinedyne 3705-2 Anchor Hooks on chains to offer a reliable tie down that can handle multiple types of loads. This assembly is an ideal choice for many securement needs.

All Kinedyne Ratchet Straps are labeled with their working load limit on their tags and stenciled on the straps in accordance to DOT regulations, WSTDA, CHP, CVSA, and North American Cargo Securement Standards. The working load limit of the 2" x 27' Chain Anchor Ratchet Strap is 3,335 Lbs. / 1,515 Kgs.

2" by 27' Chain Anchor Ratchet Strap – 512739 Quick Specs:

Working Load Limit: 3,335 Lbs. / 1,513 Kgs.
Width: 2 Inches
Length: 27 Feet
Weight: 9.62 Lbs. / 4.4 Kgs.
Webbing: Standard Kinedyne Gold with Black Edge 2084F Webbing
Fixed End Length: 18 Inches
Type of Tension Device: Kinedyne 804 Wide Handle Ratchet
End Fitting: Kinedyne 3705-2 Chain Anchor

Specifications

Breaking Strength - Assembly (lbs):	10000
End Fittings Color:	Gold Dicromate
End Fittings Finish:	Zinc Plated
End Fittings Material:	Heat Treated Carbon Steel
Country of Origin:	Canada/USA
Family:	Kinedyne Gold with Black Edge
Fixed End Length (inches):	18
NSN Number:	3990-01-533-9267
Color:	Kinedyne Gold with Black Edges
PROPOSITION 65:	No
Rating Tag:	Tyvek Tag marked with Manufacturers Name, Working Load Limit in Pounds and Kilograms in accordance to North American Regulations
Kinedyne K-Force Abrasion Coating:	False
Kinedyne Rhino Abrasion Coating:	False
Length (feet):	27
Specification Met:	WSTDA (web sling tie down association)
Sew Pattern:	Engineered to match webbing and hardware
Shipping Days:	3-5
VMRS Cargo Restraints:	055-012-010
Note for Breaking Strength (added as a warning 1):	notes-all-rachet-strap-assembly-rating
Tension Device Finish:	Zinc Plated
Note for Breaking Strength (added as a warning 2):	notes-all-rachet-strap-assembly-rating
Tension Device used with what size webbing:	2
Note for Breaking Strength (added as a warning 3):	notes-all-rachet-strap-assembly-rating
Tensioning Device Color:	Gold Dicromate
Note for Breaking Strength (added as a warning 4):	notes-all-rachet-strap-assembly-rating
Tensioning Device Material:	Heat Treated Carbon Steel
Type of End Fittings:	Kinedyne 3705-2 Chain Anchor
Warning Tag:	Trilingual (English, French and Spanish)
Webbing:	Kinedyne Gold with Black Edge 2084F Webbing
Webbing Material:	Polyester
Working Load Limit - Assembly (kgs):	1513
Working Load Limit - Assembly (lbs):	3335
Type of Tension Device:	Kinedyne 804 wide Handle Ratchet
Weight (kgs):	4
UPC Code:	52474002769
Weight (lbs):	9.6
Stencil Working Load Limit:	Stenciled with Manufacturers Name, Working Load Limit in Pounds and Kilograms in accordance to North American Regulations, every 30 inches
Width (inches):	2
WSTDA Indicator Line:	WSTDA (web sling tie down association) Capacity Indicator Line - 2 red line which represents 6000 Lbs. per inch across webbing

Packaging

Skid - GTIN:	20052474002763
Skid - Standard Pack Quantity:	12
Skid - Unit Quantity:	120
Standard Pack - GTIN:	10052474002766
Standard Pack - Unit Quantity:	10
Unit Packaging:	Individually rolled and banded

Notices & Warnings

Warning English:	WARNING: Only trained, knowledgeable personnel should use tie-down straps. It is the operator’s responsibility to use appropriate type and number of straps for the load being secured. Webbing straps must be protected when used on rough or sharp objects. Straps that are cut, worn or damaged shall not be used and shall be replaced immediately. All strap assemblies shall be inspected prior to each use. The use of “Cheater bars” or other means of increasing leverage on a ratchet buckle handle or winch, other than a Kinedyne approved device, can cause serious injury to the user and/or bystander. Webbing straps are rated for use in a temperature range from +194 degrees F (+90°C) to -40 degrees F (-40°C). Straps should be stored out of direct sun and away from damaging chemicals when not in use. Ensure load is stable before tightening or releasing tension in a strap assembly.
Warning French:	AVERTISSEMENT : Seulement un personnel qualifié et instruit devrait se servir des courroies d’arrimage. Il est de la responsabilité de l’opérateur d’assurer l’utilisation du bon nombre et genre de courroie d’arrimage pour le type de cargaison étant sécurisée. Les courroies et sangles doivent être protégées lorsqu’elles sont utilisées sur des objets abrasifs ou coupants. Les courroies coupées, usées ou endommagées ne doivent pas être utilisées et doivent être remplacées immédiatement. Tout ensemble de courroie doit être inspecté avant chaque utilisation. L’utilisation d’une rallonge ou autre moyen d’accroître l’effet de levier d’une poignée à boucle à cliquet ou d’un treuil, autre qu’un outil approuvé par Kinedyne, peut causer des blessures graves à l’utilisateur ou un passant. Les courroies tissées sont calibrées pour des températures allant de + 194 degrés F (+90°C) à -40 degrés F (-40°C). Les sangles devraient être rangée hors du soleil et loin des produits chimiques nuisibles lorsqu’elles ne sont pas en utilisation.Assurez-vous que la cargaison est stable avant d’arrimer ou de relâcher la tension d’une courroie d’arrimage.
Warning Spanish:	ADVERTENCIA: Solo el personal entrenado y bien informado debe usar correas de amarre. Es responsabilidad del operador utilizar un tipo y numero de correas apropiados para la carga que se asegura. Las correas deben protegerse cuando se utilizan sobre objetos ásperos o cortantes. Las correas cortadas, desgastadas o dañadas no deben ser utilizadas y deben sustituirse inmediatamente.Todos los ensambles de correa deben inspeccionarse antes de ser utilizados. El uso de dispositivos no aprobados por Kinedyne, tales como alguna barra de extensión o alguna otra herramienta para aumentar el apalancamiento en un trinquete omalacate, puede causar serios daños al operario o a cualquier persona alrededor. Las correas están diseñadas para ser utilizadas dentro de un rango de temperatura que va de los +194°F (+90°C) hasta -40°F (-40°C). Los conjuntos deben almacenarse fuera del sol directo y lejos de productos químicos dañinos cuando no esten en uso.Asegúrese de que la carga sea estable antes de apretar o liberar la tensión en un conjunto de correa.
