Kinedyne 12 Jaw Fitting w/ Round Ring

Product Code:

32326

UPC Code:

52474002080

Have Questions?

Fill out the form below

Detail

Do you need a firm attachment point for your tie down? Try Kinedyne’s 12 Jaw Fitting with Round Ring.

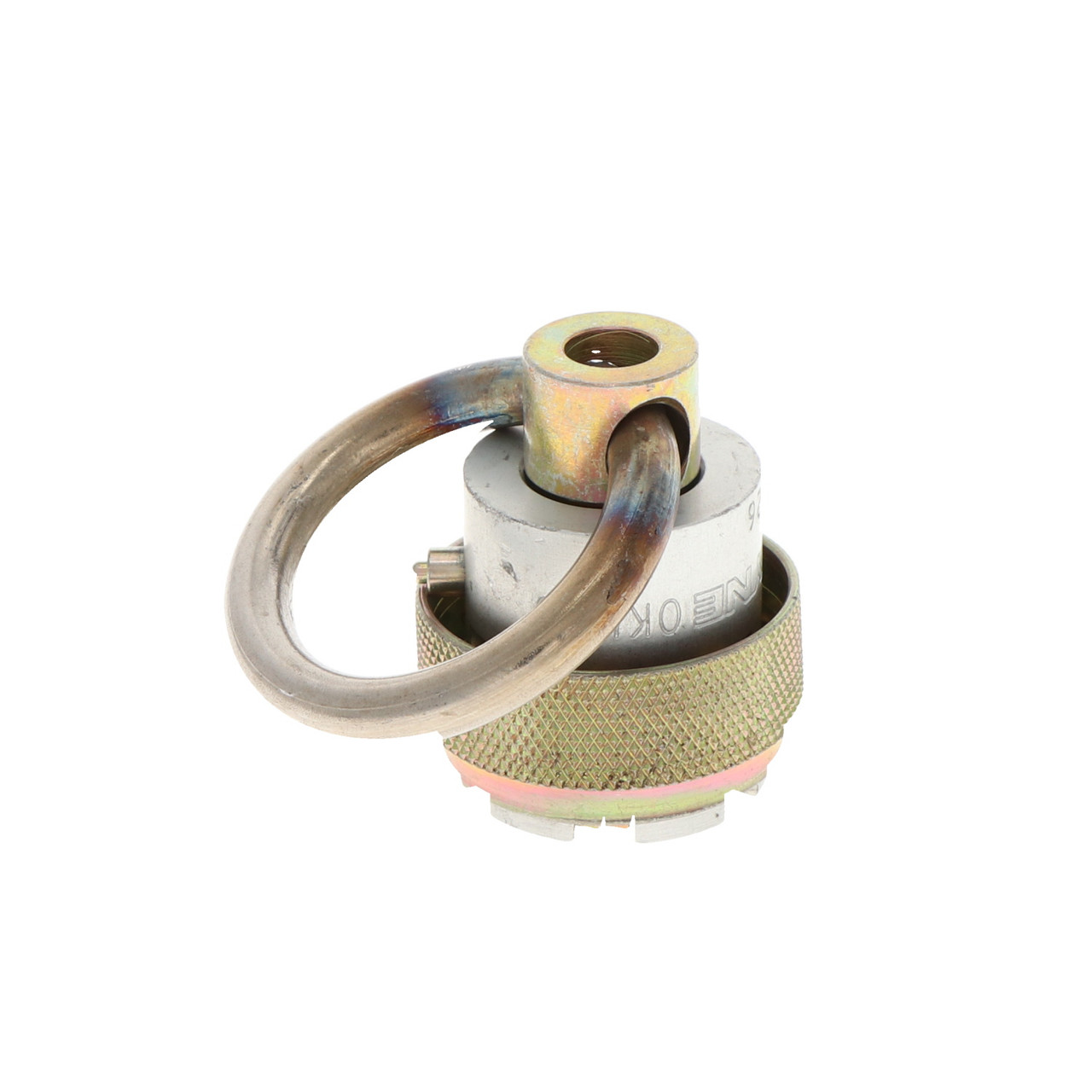

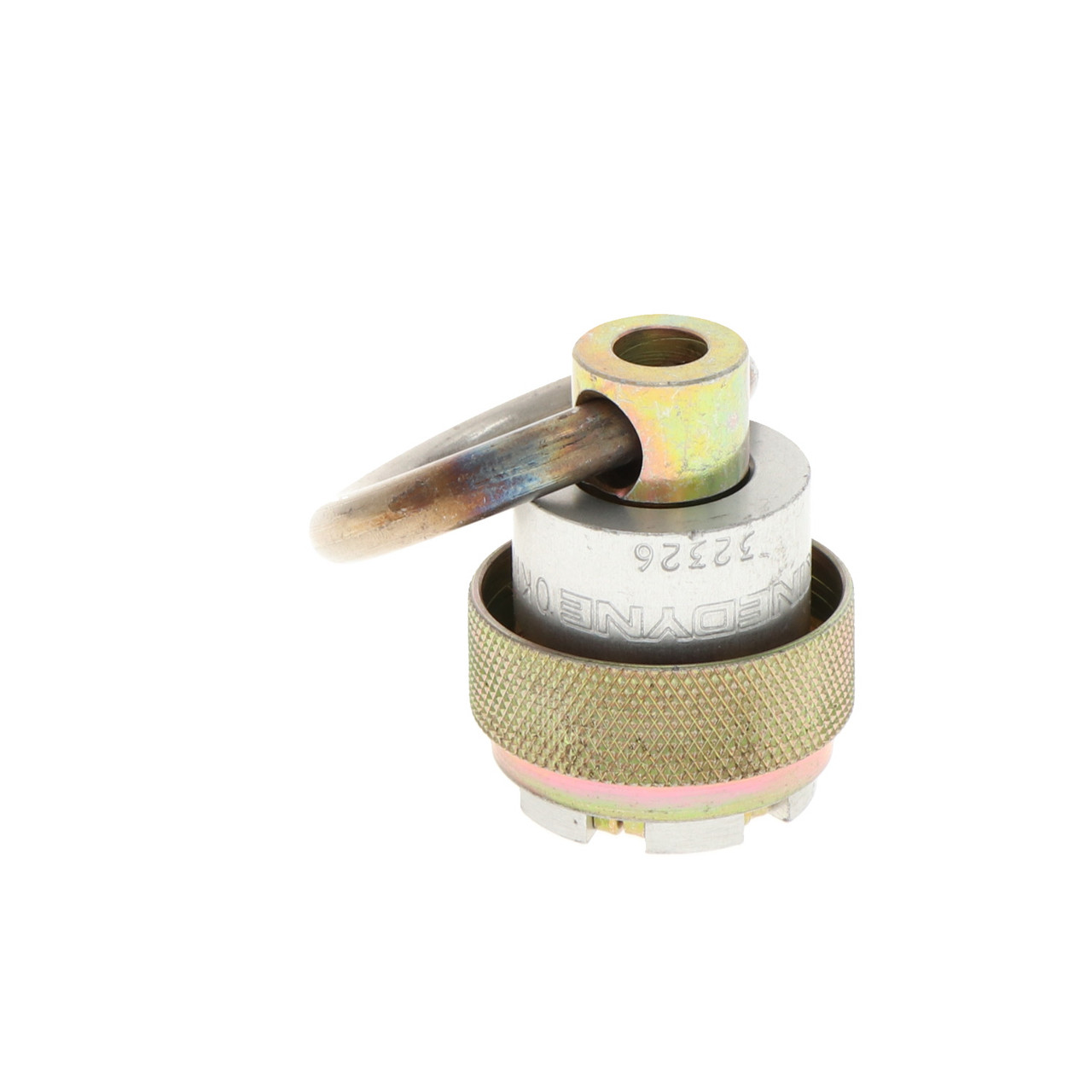

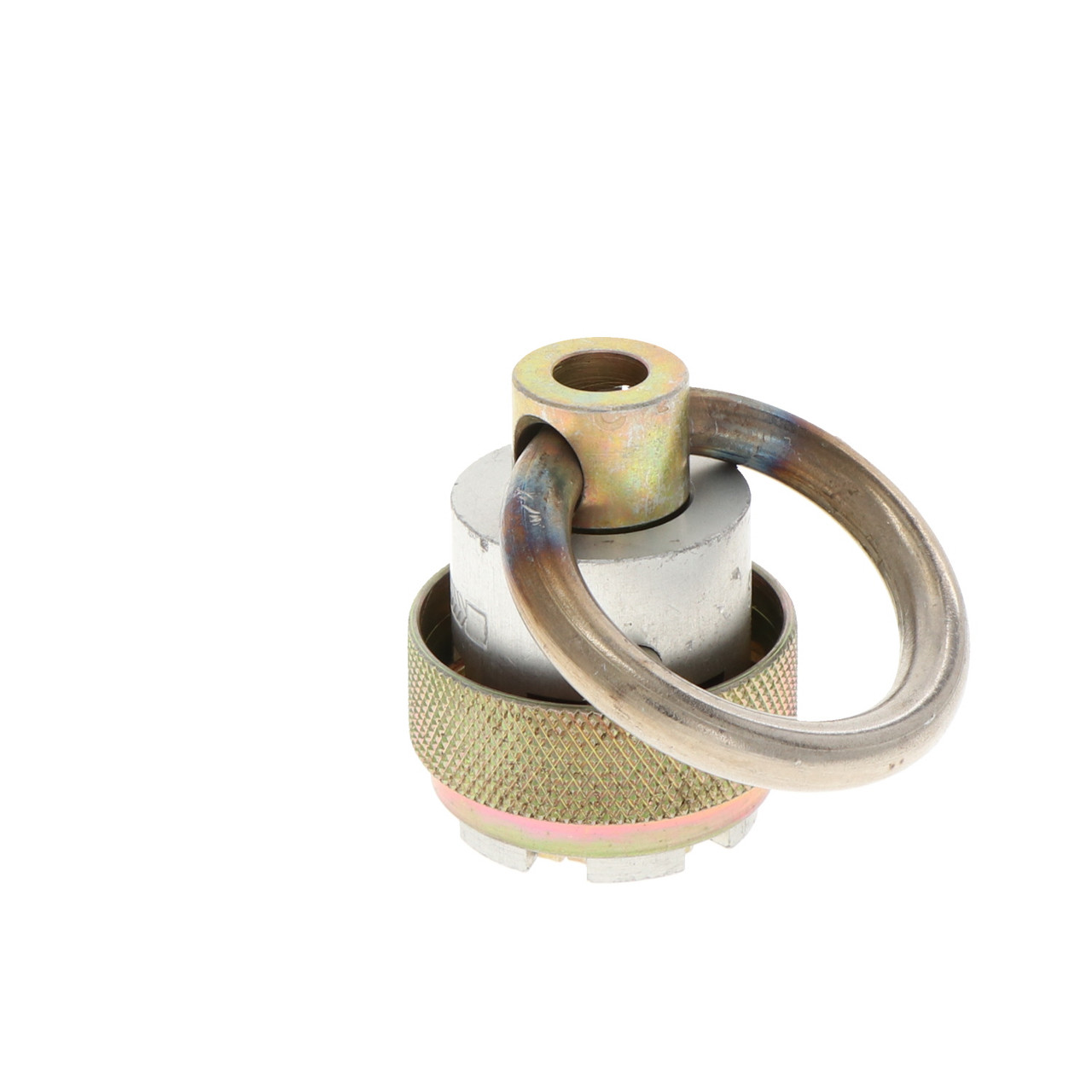

12 Jaw Fitting w/ Round Ring

For the jobs that require extra strength, Kinedyne’s industrial 12 Jaw Fitting with Round Ring is right for you. Our 12 Jaw Fitting is manufactured from aluminum/steel/stainless steel for a strong tie down point while also engineered with an anodized/zinc plated finish for extra durability. This sturdy 12 Jaw Fitting is also equipped with a reliably strong Round Ring that can handle many different hooks and straps.

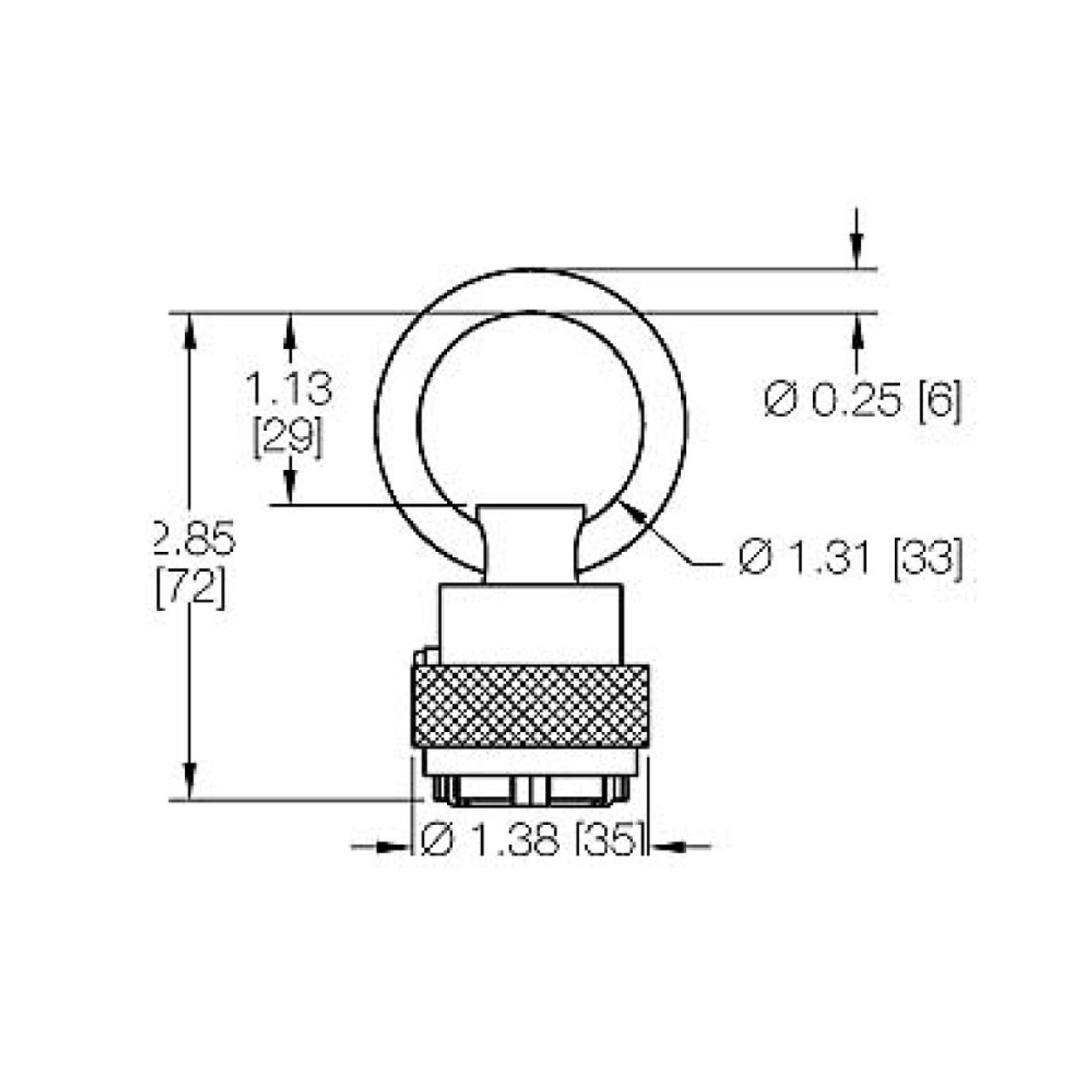

12 Jaw Fitting w/ Round Ring – 32326 Quick Specs:

Overall Height: 3.1 Inches
Overall Width: 1.81 Inches
Ring Height: 1.81 Inches
Ring Thickness: 0.25 Inch
Weight: 0.29 Lbs. / 0.13 Kgs.

Specifications

0° Breaking Strength (kgs):	2483
0° Breaking Strength (lbs):	5475
90° Breaking Strength (kgs):	1043
Country of Origin:	USA
90° Breaking Strength (lbs):	2300
Height of Ring (inches):	1.81
Finish:	Annodize / Zinc plate
Hole Included:	False
NSN Number:	1670-01-481-2645
Color:	Silver
PROPOSITION 65:	No
Material:	Aluminum / Steel / Stainless Steel
Ring Included:	True
Overall Height (inches):	3.1
Overall Width (inches):	1.8
Shipping Days:	3-5
Note for Breaking Strength (added as a warning 1):	notes-all-jaw-fittings-assembly-rating
Thickness of Ring (inches):	0.25
Threaded Stud Included:	False
Weight (kgs):	9
UPC Code:	52474002080
Weight (lbs):	0.29

Packaging

Skid - Standard Pack Quantity:	200
Skid - Unit Quantity:	200
Standard Pack - Unit Quantity:	1
Unit Packaging:	Individual
