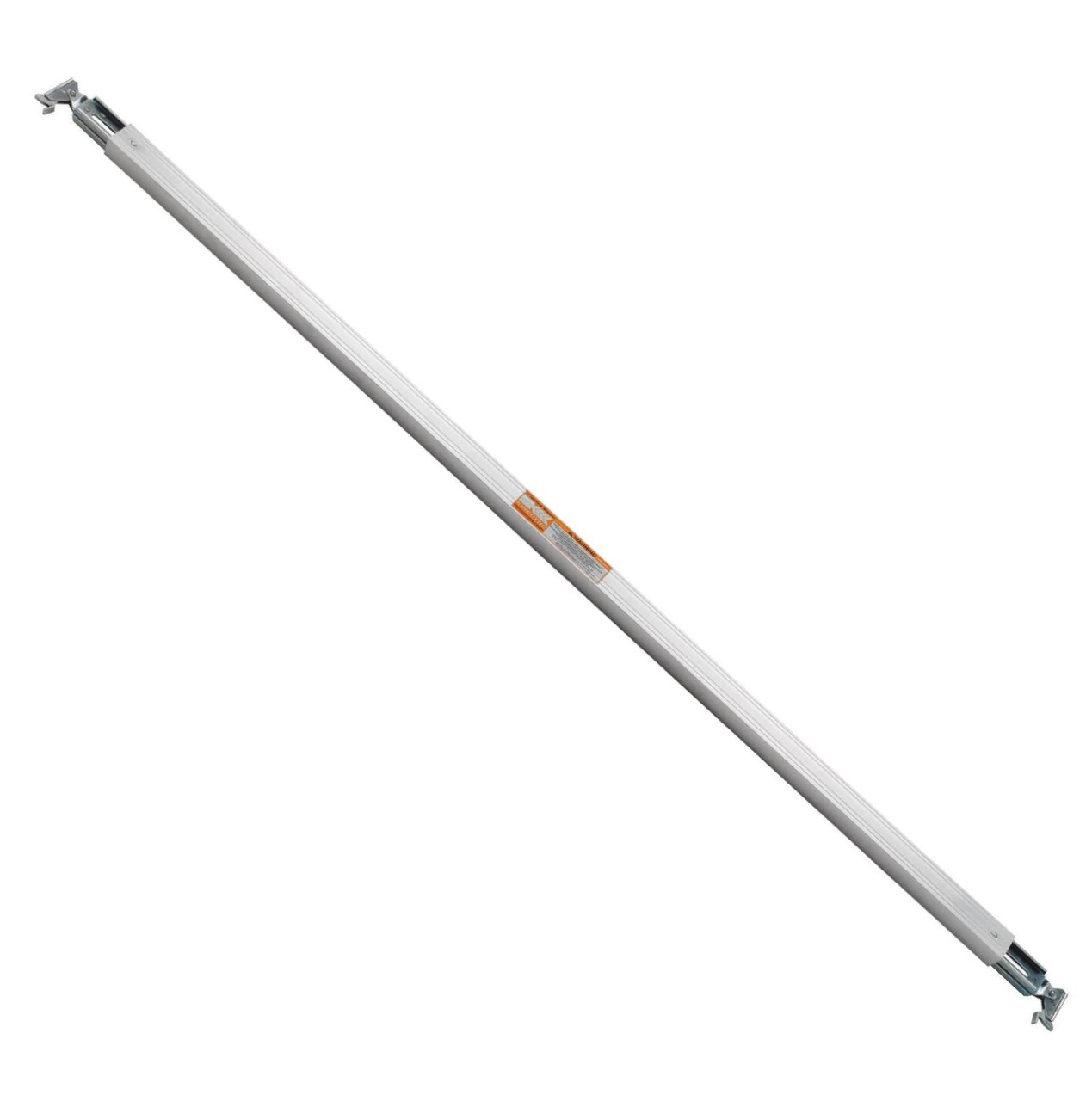

Kinedyne 97" - 107" K2 Kaptive Beam for 102" Trailers

97-Inch to 107-Inch K2 Kaptive Beam

Instead of loading cargo in the traditional way, optimize all the space available within the trailer with Kinedyne's K2 Kaptive Beam that quickly and easily adjusts from 97" to 107" for 102" wide trailers. Avoid causing damage to the freight by using our K2 Kaptive Beam to create a strong double-deck that increases load capacity and maximum profits.

Our K2 Kaptive Beam is designed so that it can be easily adjusted at multiple heights so that it can be used for decking applications with its decking working load limit of 2,200 Lbs. / 1,000 Kgs. or for shoring applications with its shoring working load limit of 1,500 Lbs. / 680 Kgs.

Manufactured from high-strength aluminum for impressive durability, our K2 Kaptive Beam is equipped with an improved Head Assembly made from anodized high-strength aluminum that has a reliable locking feature. The Locking Head is designed to easily click into any slot on the Track for a strong hold. The trigger features an angled lip that enables the beam adjustment tool to make a more secure connection, making locking, unlocking, and adjusting the Beam's height easier.

Do you need to use only the floor for loading? Luckily, you don't have to waste time removing all the K2 Kaptive Beams. Instead, our Beams remain captive in the Track and can be stored at ceiling level so that they're out of the way when you don't need them but available immediately as soon as you do. This reduces wasted time and effort that can then be spent on maximizing profit.

97" - 107" K2 Kaptive Beam for 102" Trailers – 9075-102 Quick Specs:

• For Trailer Size (Wide): 102 Inch Wide Trailers
• Decking Working Load Limit: 2,200 Lbs. / 1,000 Kgs.
• Shoring Working Load Limit: 1,500 Lbs. / 680 Kgs.
• Minimum Length: 97 Inches
• Maximum Length: 107 Inches
• Weight: 20.6 Lbs. / 9.3 Kgs.
• Head Assembly Type: K2 Beam Head
