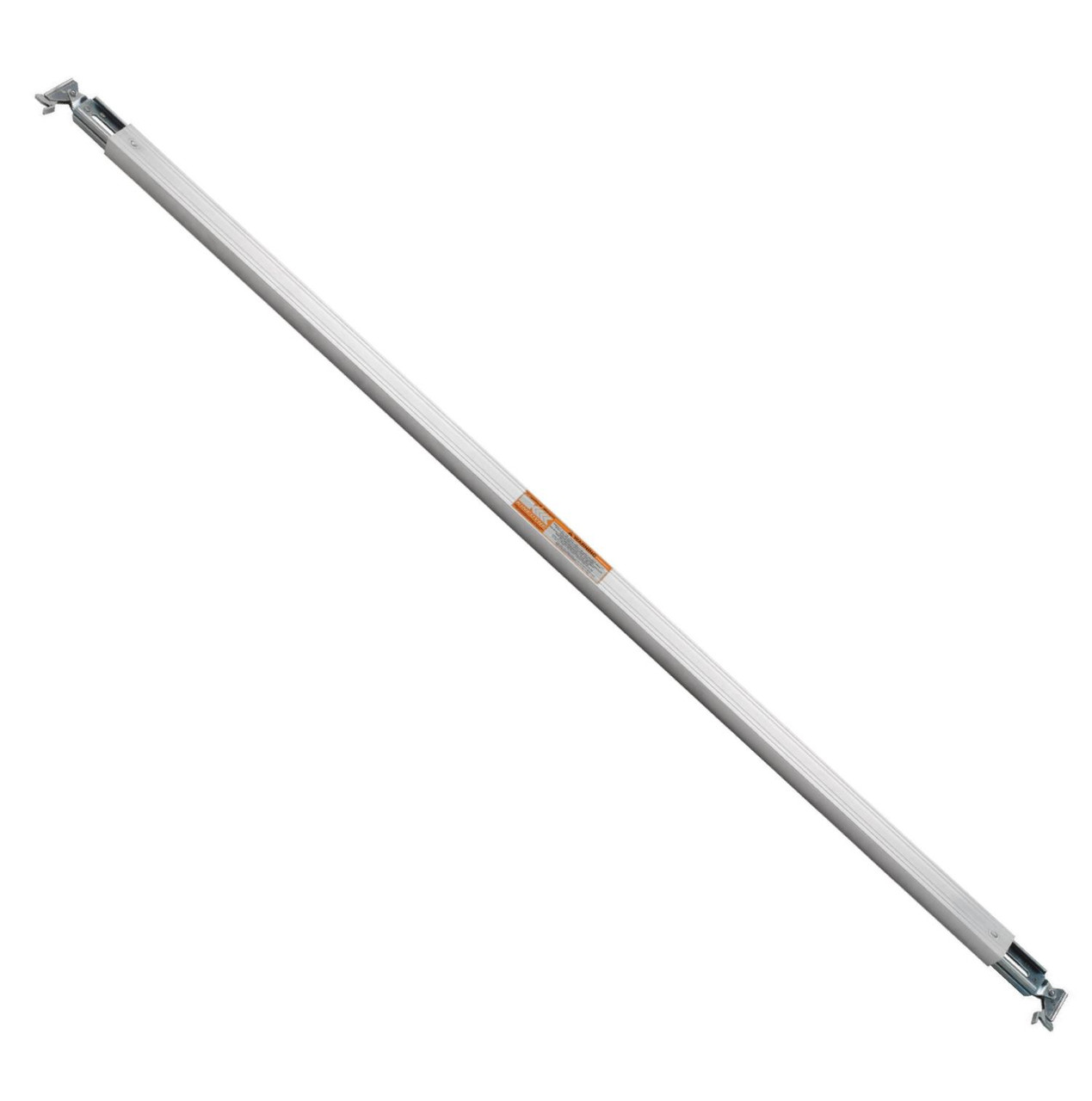

Kinedyne 97" - 107" Heavy-Duty K2 Kaptive Beam for 102" Trailers

97-Inch to 107-Inch Heavy-Duty K2 Kaptive Beam

When you load a trailer the traditional way, you're essentially leaving the trailer half empty as you're only utilizing the floor space in the trailer to store cargo. Using this method means that the trailer is leaving before it reaches it full cargo capacity, wasting a lot of potential. There's so much more space that you can use once you have our Heavy-Duty K2 Kaptive Beam in hand. This Beam offers a durable and economical double-decking system that is designed to save space, labor, time, and revenue by maximizing load capacity.

Lightweight and adjustable from 97" to 107", our K2 Kaptive Beam can form a reliably supportive second deck with a decking working load limit of 3,000 Lbs. / 1,360 Kgs. This is especially helpful when faced with mixed cargo. In addition to decking, our Beam can also be used to keep cargo stabilized and in place with a shoring working load limit of 2,500 Lbs. / 1,133 Kgs.

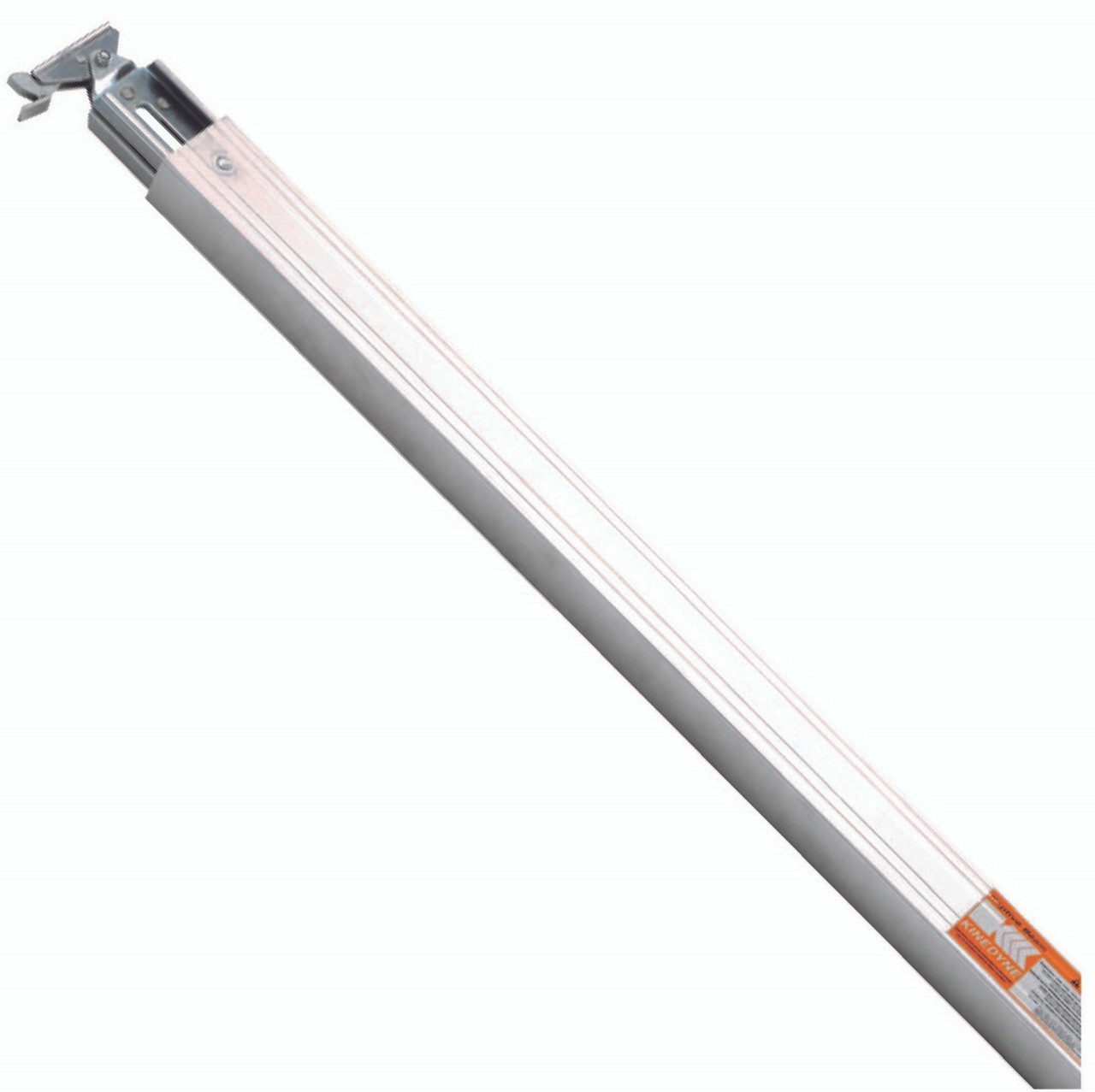

The K2 Kaptive Beam's foot and guide shoe components are made of rugged anodized aluminum with a locking pawl made of steel for industrial durability and superior wear resistance. The heavy-duty spring-loaded trigger mechanism is very easy to operate and offers a strong and secure connection to the Track. The angled lip of the trigger allows for easier manipulation by the Beam adjustment tool.

97" - 107" Heavy-Duty K2 Kaptive Beam for 102" Trailers – 9075-102HD Quick Specs:

• For Trailer Size (Wide): 102 Inch Wide Trailers
• Decking Working Load Limit: 3,000 Lbs. / 1,360 Kgs.
• Shoring Working Load Limit: 2,500 Lbs. / 1,133 Kgs.
• Minimum Length: 97 Inches
• Maximum Length: 107 Inches
• Weight: 22.5 Lbs. / 10.2 Kgs.
• Head Assembly Type: K2 Beam Head
