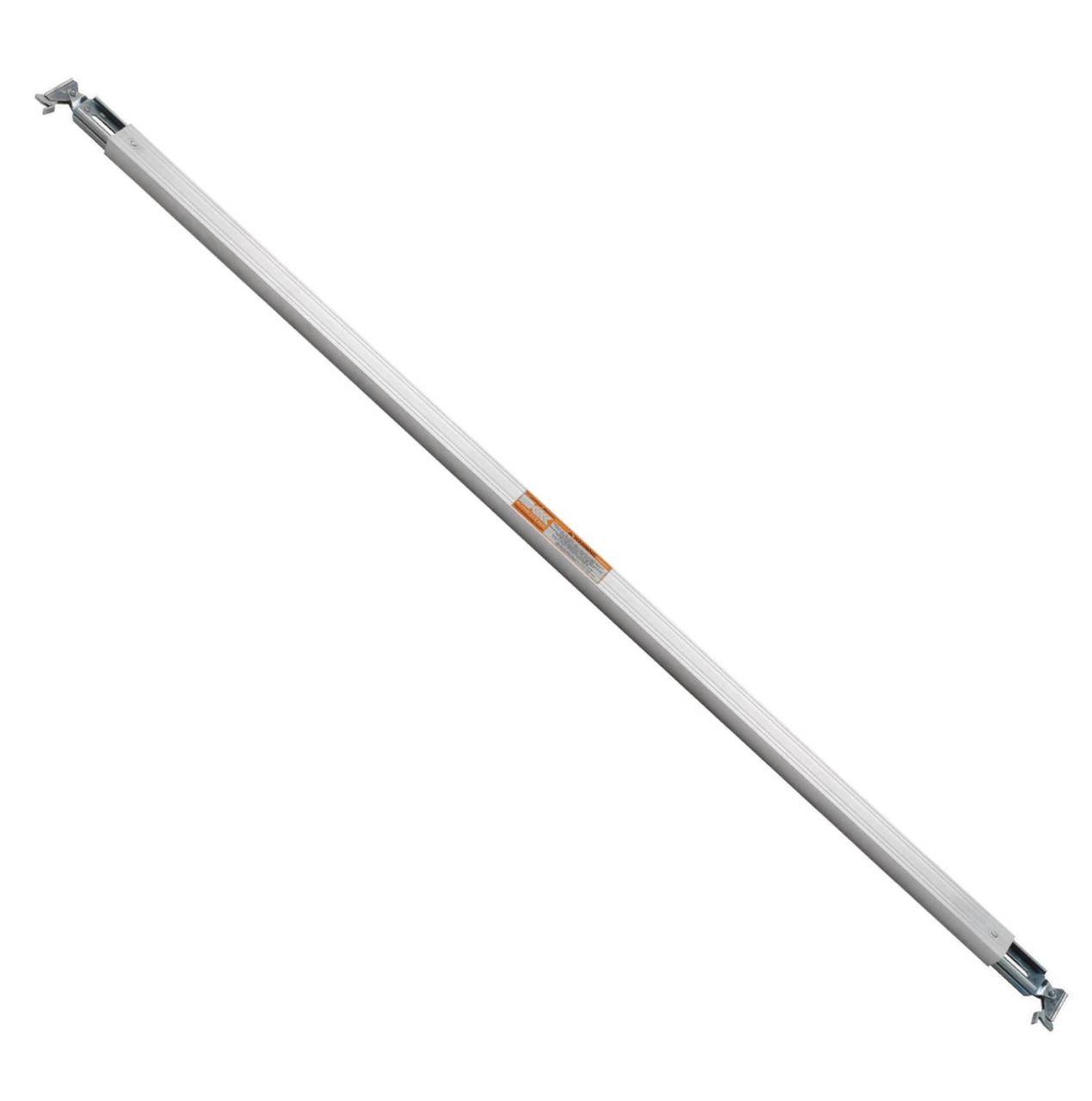

Kinedyne 97" - 107" Wide Flange K2 Kaptive Beam for 102" Trailers
Have Questions?
Fill out the form below
Economical durability is available with Kinedyne's K2 Wide Flange Kaptive Beam for your trailer's K2 Kaptive Beam System. Able to be adjusted from 97" to 107", this strong Beam has a decking working load limit of 3,335 Lbs. / 1,511 Kgs.
97-Inch to 107-Inch Wide Flange K2 Kaptive Beam
Want to boost trailer load capacity in order to increase revenue while reducing damage and freight claims? All of that is possible with Kinedyne's K2 Wide Flange Kaptive Beam, adjustable from 97" to 107" for 102" wide trailers. Our K2 Kaptive Beam System is the most comprehensive, load-maximizing system on the road, and our K2 Kaptive Beam is designed to make it as easy to use as possible with its decking working load limit of 3,335 Lbs. / 1,511 Kgs.
Our K2 Kaptive Beam can create a strong and reliable second deck within the trailer that can be used to securely and safely stack extra cargo, boosting the amount of available space. This means that you don't have to risk the load by stacking everything on top of each other. Whenever they're not in use, our Beams can then be stored at the top of the ceiling so that they'll be ready the next time you need them.

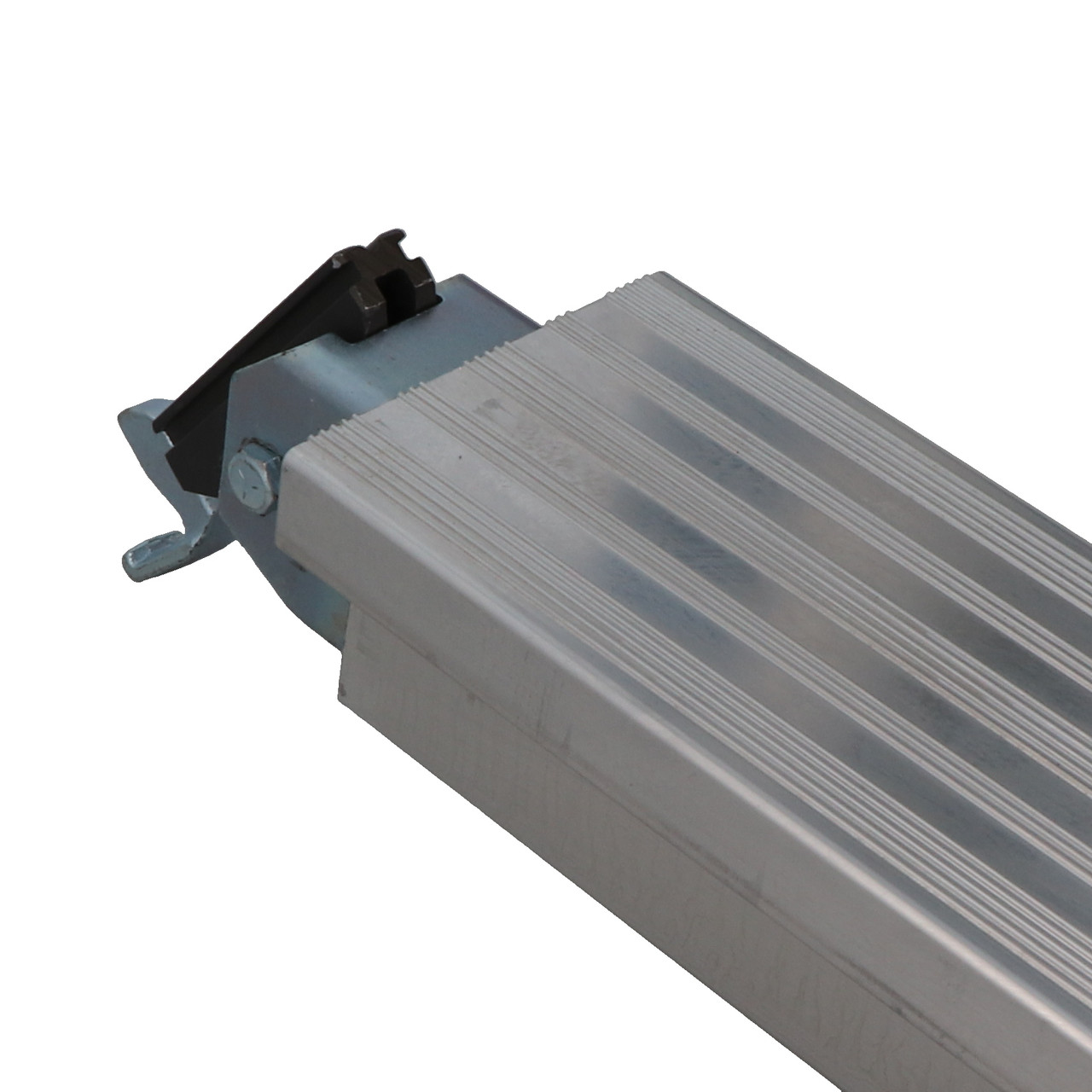

The high-strength aluminum K2 Wide Flange Kaptive Beam features a unique Head Assembly made of hard anodized aluminum material for extra strength. A heavy-duty spring-loaded trigger mechanism is what keeps the Beam firmly held in place within the Track's slots for reliable support. The trigger has an angled lip that enables easier height adjustment by the Beam adjustment tool.
We've built our K2 Kaptive Beam with the same emphasis on strength and durability that can be expected from the Cargo Control People. Engineered with only quality materials and components, we focused on a reduction of friction to reduce wear and tear on the Beam foot assembly's trigger mechanism and lock pawl, increasing the K2 Kaptive Beam System's durability and life expectancy.
97" - 107" Wide Flange K2 Kaptive Beam for 102" Trailers – 9075-102WF1 Quick Specs:
- For Trailer Size (Wide): 102 Inch Wide Trailers
- Decking Working Load Limit: 3,335 Lbs. / 1,511 Kgs.
- Minimum Length: 97 Inches
- Maximum Length: 107 Inches
- Weight: 29.7 Lbs. / 13.5 Kgs.
- Head Assembly Type: K2 Beam Head
