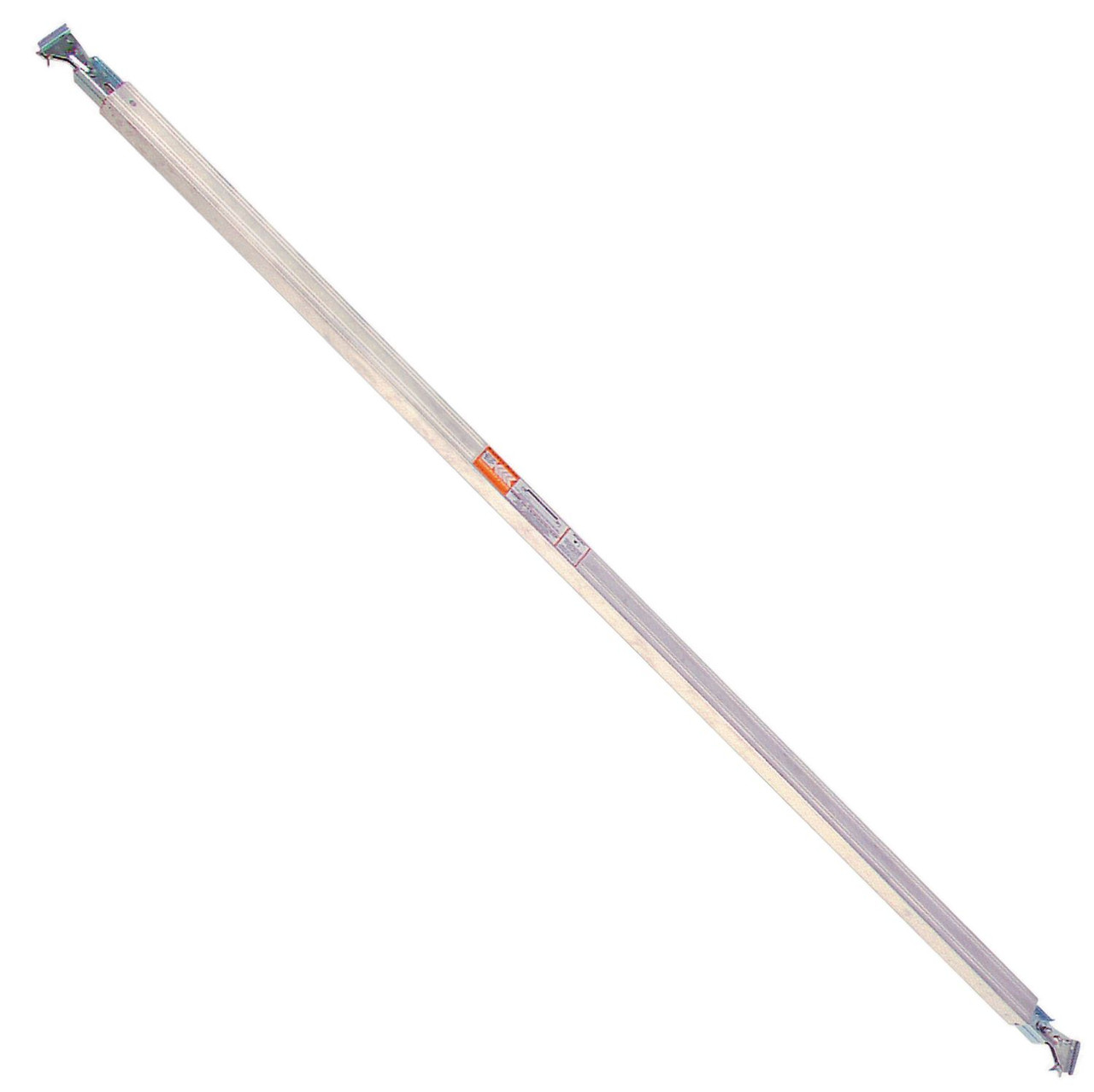

Kinedyne 97" - 107" Heavy-Duty K1 Kaptive Beam for 102" Trailers

97-Inch to 107-Inch Heavy-Duty K1 Kaptive Beam

Because of the kind of versatility our K1 Kaptive Beam System brings to trailer configurations, operators are allowed to optimize the usable trailer cube of their 102" wide trailers for a variety of different advantageous applications. With the Heavy-Duty K1 Kaptive Beam with a decking working load limit of 3,300Lbs. / 1,360 Kgs., you are able to create a double deck within the trailer to utilize all that space near the ceiling, allowing you to store and transport more cargo without risking damage to the load by double stacking them on top of each other.

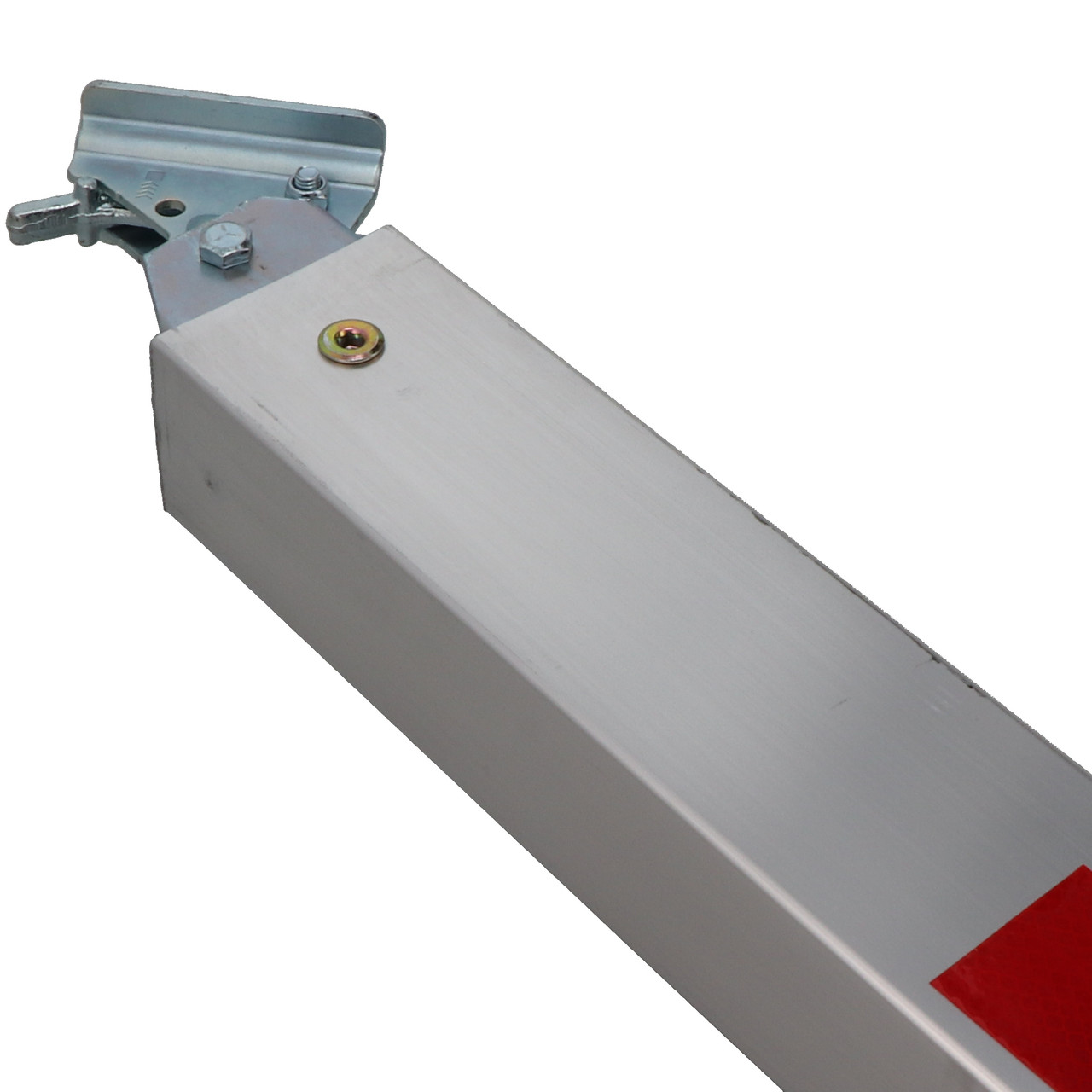

The high-strength aluminum K1 Kaptive Beam offers quick and easy adjustment from 97" to 107" along the K1 Kaptive Beam Track. The high-quality steel Head Assembly is engineered with a trigger locking mechanism that firmly grips the Beam in place for a sturdy and reliable hold. The Beam can then be used for decking or shoring applications with a shoring working load limit of 2,500 Lbs. / 1,133 Kgs.

The K1 Kaptive Beam can be easily maneuvered and can also be conveniently stored at ceiling level. No more scrambling around looking for the right equipment. It's all there in the trailer. By maximizing the trailer's load capacity while saving on labor and freight damage claims, you'll see an increase in revenue in no time.

97" - 107" Heavy-Duty K1 Kaptive Beam for 102" Trailers – 9100-102HDC Quick Specs:

• For Trailer Size (Wide): 102 Inch Wide Trailers
• Decking Working Load Limit: 2,200 Lbs. / 1,000 Kgs.
• Shoring Working Load Limit: 1,500 Lbs. / 680 Kgs.
• Width: 2.57 Inches
• Height: 3.22 Inches
• Minimum Length: 97 Inches
• Maximum Length: 107 Inches
• Weight: 22.5 Lbs. / 10.2 Kgs.
• Head Assembly Type: K1 Beam Head
