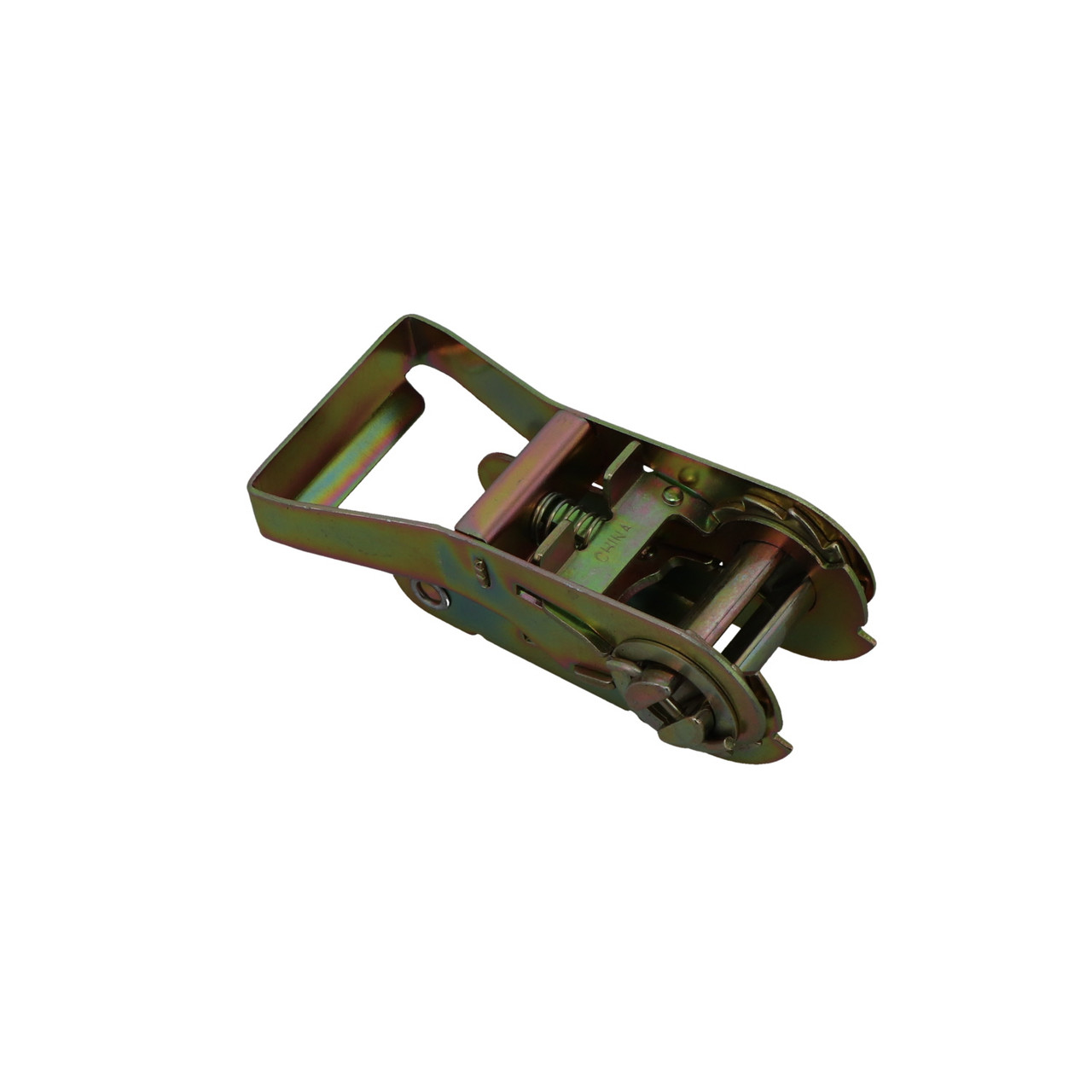

Kinedyne 1" Wide Handle Ratchet Buckle

Product Code:

809

UPC Code:

52474003735

Have Questions?

Fill out the form below

For the light-duty jobs that require a bit more strength, Kinedyne is offering its durable 1" Wide Handle Ratchet for your tie down jobs.

1-Inch Wide Handle Ratchet

Don't let its size fool you. Our 1-inch Wide Handle Ratchet is designed to treat your light-weight tie down jobs with the same energy as if they were heavy-duty securement jobs. Meaning it has the strength to help you tighten down your webbing just as quickly and just as securely as any of our larger Ratchets. Coated in an anti-corrosive zinc plated finish for extra durability, we've engineered our 1" Wide Handle Ratchet from heat-treated carbon steel for extra strength.

1" Wide Handle Ratchet – 809 Quick Specs:

Working Load Limit: 500 Lbs. / 230 Kgs.
Size of Webbing: 1 Inch
Overall Width: 2.13 Inches
Overall Height: 1.56 Inches
Overall Length: 4.39 Inches
Weight: 0.54 Lbs. / 0.24 Kgs.

Specifications

Country of Origin:	China
Breaking Strength (kgs):	680
Breaking Strength (lbs):	1500
Finish:	Zinc Plated
Color:	Gold Chromate
PROPOSITION 65:	No
Material:	Heat Treated Carbon Steel
Size of Webbing used with (inches):	1
Overall Height (inches):	15
Overall Length (inches):	43
Overall Width (inches):	21
Specification Met:	WSTDA-T-1 (Web Sling Tie-Down Association-T-1)
Shipping Days:	3-5
Note for Breaking Strength (added as a warning 1):	notes-all-rachet-buckles-assembly-rating
Weight (kgs):	22
UPC Code:	52474003735
Weight (lbs):	5
Working Load Limit (kgs):	227
Working Load Limit (lbs):	500

Packaging

Skid - GTIN:	20052474003739
Skid - Standard Pack Quantity:	22
Skid - Unit Quantity:	1100
Standard Pack - GTIN:	10052474003732
Standard Pack - Unit Quantity:	50
Unit Packaging:	Individual

Notices & Warnings

Warning English:	TENSIONING OF CARGO CONTROL EQUIPMENT - To avoid over tensioning, always select and use Kinedyne specified equipment to tighten our products. Equipment compatibility is described in this catalog. This equipment has been designed to avoid over tensioning. Use of any unspecified leverage increasing device, such as a cheater bar, can generate enough force to break a piece of cargo control equipment during installation, release, or while in transit. The release of energy when a piece of cargo control equipment breaks can cause serious injury or death to you or bystanders. If you are having difficulty securing a load, make sure your cargo control equipment is in working order, or readjust or reposition your load.
Warning French:	LA TENSION DE L’ÉQUIPEMENT D’ARRIMAGE - Pour éviter d’appliquer une tension trop forte, utilisez toujours les outils spécifiés pour tendre nos produits. La compatibilité des équipements est décrite dans ce catalogue. Ces équipements ont été conçus pour éviter la surtension. L’utilisation de tout équipement pour accroitre l’effet de levier, comme une allonge, peut générer suffisamment de force pour briser une pièce d’équipement d’arrimage durant l'installation, le relâchement de cargaison ou même en route. L’énergie libérée par le bris d’une pièce d’équipement d’arrimage sous tension peut provoquer des blessures graves ou même la mort d’un passant ou de vous-même. Si vous éprouvez de la difficulté à arrimer une cargaison, assurez-vous que votre équipement d’arrimage est en bon état de fonctionnement, ou encore réajustez ou repositionnez votre cargaison.
Warning Spanish:	TENSIONANDO EL EQUIPO DE CONTROL DE CARGA - Para evitar la tensión excesiva, siempre seleccione y utilice equipos especificados por Kinedyne para ajustar nuestros productos. La compatibilidad de equipo esta descrita en este catálogo. Estos equipos fueron diseñados para evitar el exceso de tensión. El uso de cualquier dispositivo de apalancamiento no especificado, tal como una barra de extensión, puede generar la fuerza suficiente para romper alguna pieza del equipo de control de carga durante la instalación, liberación, omientras está en tránsito. La energía liberada cuando una pieza del equipo de control de carga se rompe, puede causar serias lesiones e incluso la muerte a usted o a cualquier persona alrededor. Si se presentan dificultades al momento de asegurar la carga, se debe verificar que el equipo de control de carga, esté funcionando correctamente, o bien, se debe reposicionar la carga.
