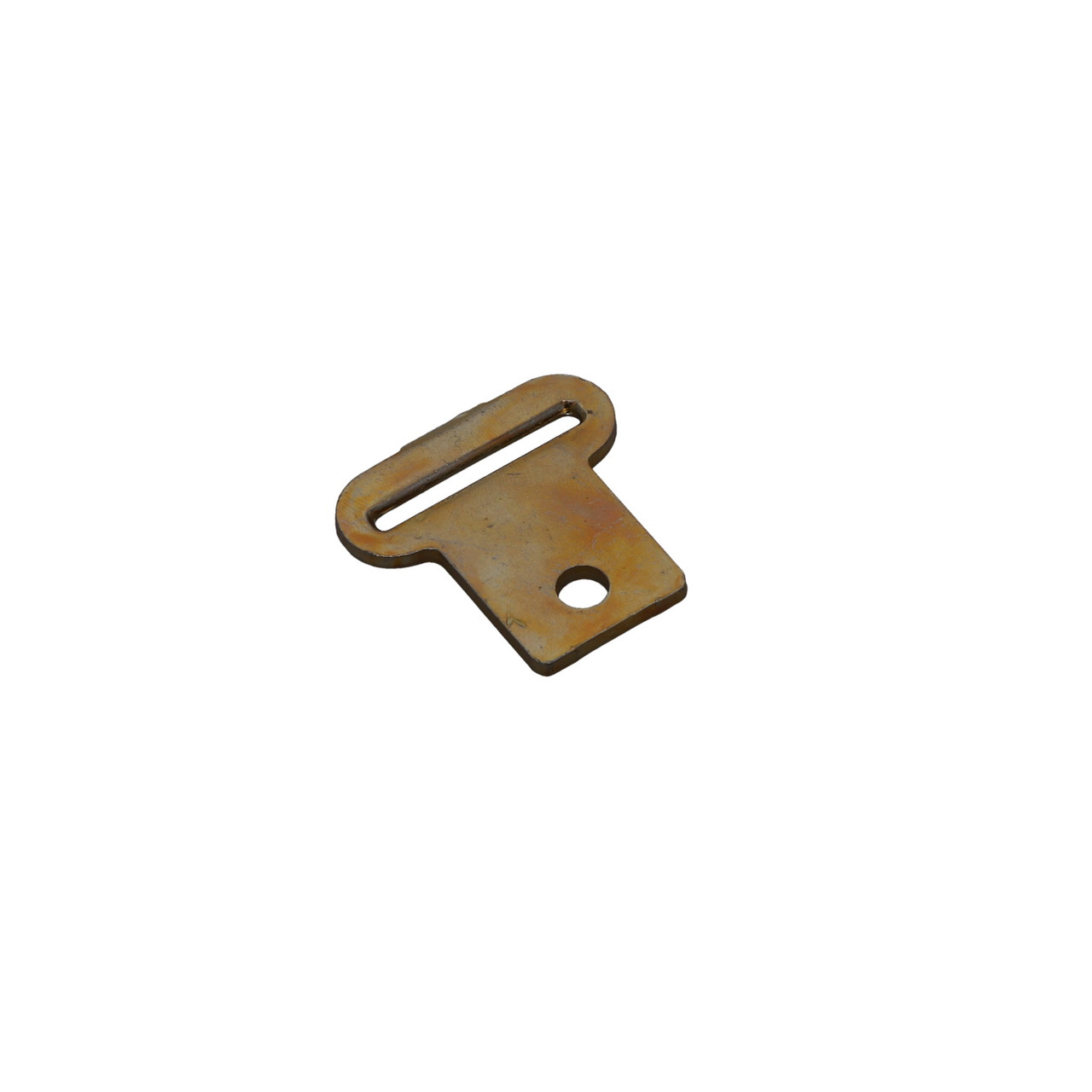

Kinedyne 1" Strap End Bolt Plate

1" Strap End Bolt Plate

Product Code:

34109-5

UPC Code:

52474002370

Have Questions?

Fill out the form below

Kinedyne is offering our 1" Strap End Bolt Plate for when you need a more permanent anchor point in your trailer, allowing you to keep your strap in place permanently.

1-Inch Strap End Bolt Plate

Secure our industrial strength 1-inch Strap End Bolt Plate to your trailer's surface to create a reliable anchor point for your heavy-duty tie down jobs within your trailer. Once bolted down, this Strap End Bolt Plate keeps your straps firmly in place for a more accurate cargo securement job. Engineered from heat-treated carbon steel for industrial strength and coated in a zinc plated finish for durability, this Strap End Bolt Plate can handle a working load limit of 335 Lbs. / 151.95 Kgs. 90 degrees.

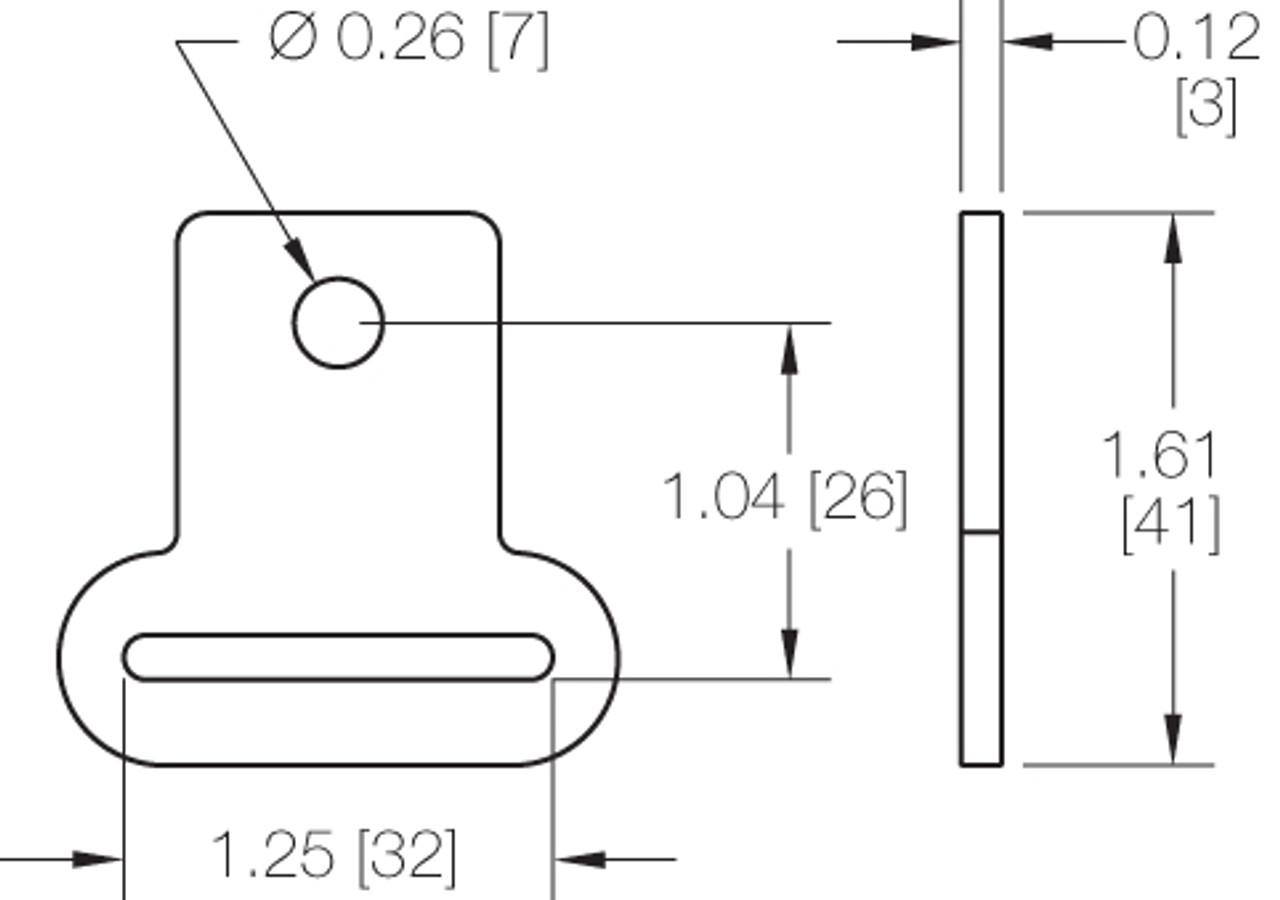

1" Strap End Bolt Plate – 34109-5 Quick Specs:

Working Load Limit: 335 Lbs. / 151.95 Kgs.
Width of Webbing Slot: 1.25 Inches
Overall Height: 0.12 Inch
Overall Width: 1.40 Inches
Overall Length: 1.61 Inches
Type of Hole: Standard Hole to Attach Plate
Dimension of Hole: 0.26 Inch
Weight: 0.27 Lbs. / 0.12 Kgs.

Specifications

Working Load Limit (kgs):	151.95 Kgs.
Working Load Limit (lbs):	335 Lbs.
Country of Origin:	China
Finish:	Zinc Plated
Hole Included:	True
Dimension of Hole:	0,26
Color:	Gold Chromate
PROPOSITION 65:	No
Material:	Heat Treated Carbon Steel
Ring Included:	False
Kinedyne Anchoring Kits used with:	15522, 15523
Kinedyne Track used with:	15544,15545, 15546, FE750-01-PD4, FE751-01-PD4, FE752-01-PD4
Overall Height (inches):	1
Overall Length (inches):	16
Overall Width (inches):	14
Series E or Series A Fitting:	False
Series L Fitting:	False
Specification Met:	WSTDA-T-1 (Web Sling Tie-Down Association-T-1)
Shipping Days:	3-5
Width of Webbing Slot (inches):	12
Note for Breaking Strength (added as a warning 1):	notes-all-securement-point-assembly-rating
Weight (kgs):	9
UPC Code:	52474002370
Weight (lbs):	2
Stud Bolt Included:	False
Stud Nut Included:	False

Packaging

Skid - GTIN:	20052474002374
Skid - Standard Pack Quantity:	30
Skid - Unit Quantity:	6000
Standard Pack - GTIN:	10052474002377
Standard Pack - Unit Quantity:	200
Unit Packaging:	Individual

Notices & Warnings

Warning English:	WARNING: Series E,A or F fittings are designed for use with Kinedyne Logistic Track. Load ratings may be reduced when used with other tracks or if the track fitting is not positively engaged. Your cargo control system is only as strong as its weakest link. All ratings for series E and A fittings are based on use with Kinedyne 11 gauge track. NOTE: Several types of Kinedyne track are not made with 11 gauge steel, contact Customer Service for specifications by part number.
Warning French:	AVERTISSEMENT: Les raccords de série E,A ou F sont conçus pour être utilisés avec les rails Logistique de Kinedyne. La capacité de charge peut être réduite lorsque ces raccords sont utilisés avec d’autres rails ou lorsque le raccord n’est complètement verrouillé. Votre système d’arrimage est aussi fort que son maillon le plus faible. Les cotes de classement des raccords de série E etA sont basées sur une utilisation avec les rails Kinedyne de calibre 11. NOTE: Plusieurs types de rail Kinedyne ne sont pas faits d’acier de calibre 11, communiquez avec le service à la clientèle pour les spécifications selon le numéro de pièce.
Warning Spanish:	ADVERTENCIA: Los accesorios de las series E, A y F, están diseñados para utilizarse específicamente con el riel logístico de Kinedyne. Los valores de carga pueden reducirse al utilizar otros rieles o bien, si los accesorios de los rieles no están correctamente enganchados. Su sistema de control de carga es tan fuerte solo como su eslabón más débil. Todos los valores de los accesorios de serie E y A, están basados en su uso con el riel de calibre 11 de Kinedyne. NOTA: Kinedyne cuenta con varios tipos de rieles que no están hechos de acero de calibre 11, por lo que es recomendable contactar a nuestro servicio al cliente para obtener las especificaciones en base al código del producto.
