Kinedyne 1 3/4" Stainless Steel Overcenter Buckle

1 3/4" Stainless Steel Overcenter Buckle

Product Code:

970

UPC Code:

52474003841

Have Questions?

Fill out the form below

Do you need to secure a trailer curtain system on a soft side trailer or truck body? Keep it securely in place with Kinedyne's 1 3/4" Stainless Steel Overcenter Buckle.

1 3/4-Inch Stainless Steel Overcenter Buckle

Prepare your Kin-Sider system with the strength of Kinedyne's 1 3/4" Stainless Steel Overcenter Buckle. This strong and durable tensioning device can make your tie down jobs much easier thanks to its stainless-steel finish that helps protect the buckle from rust. We've designed our Overcenter Buckle with a positive lock mechanism which ensure that the buckle will remain closed when under the load. The spring-loaded locking latch also provides easy tension release.

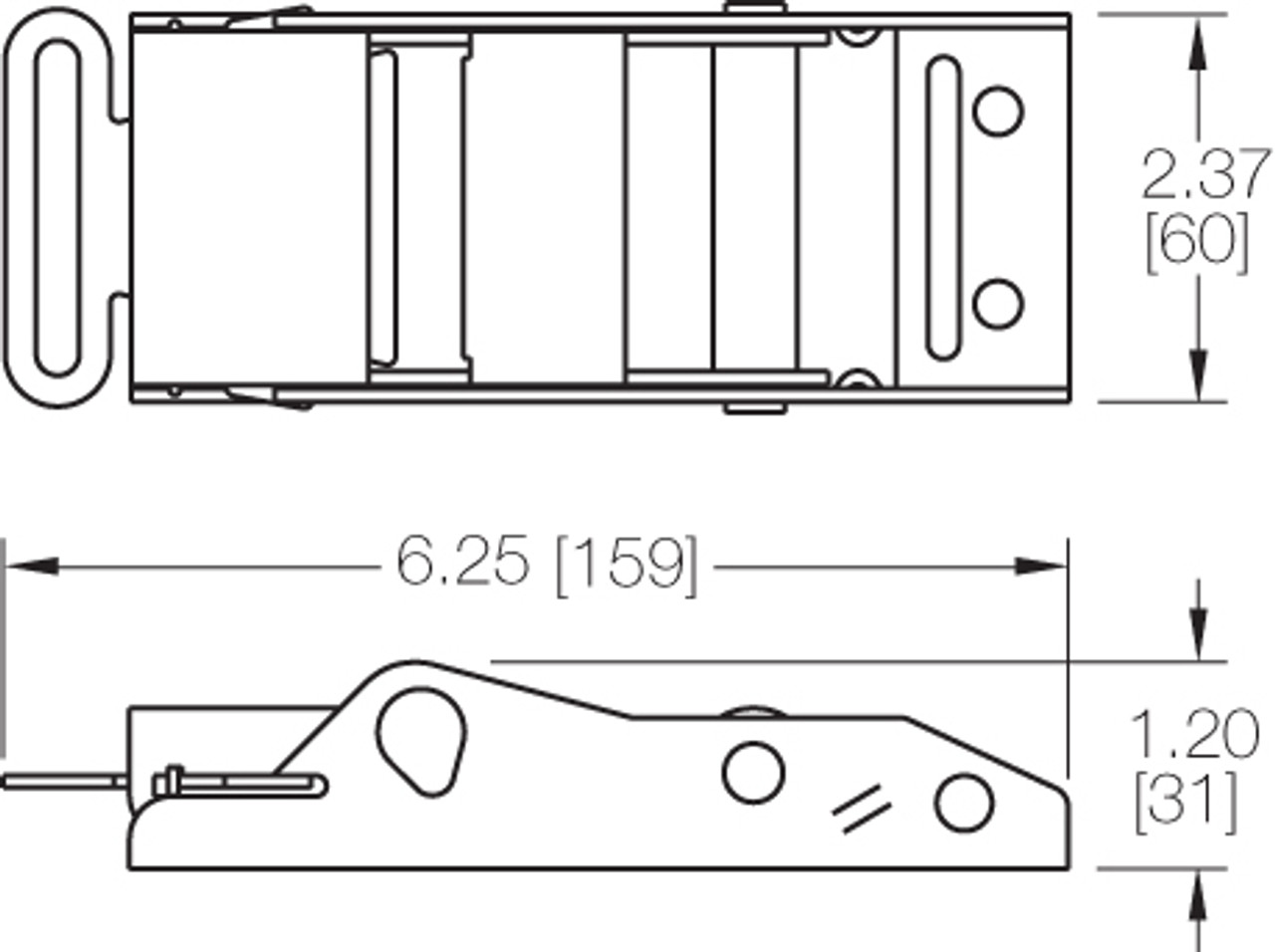

1 3/4" Stainless Steel Overcenter Buckle – 970 Quick Specs:

Working Load Limit: 1,000 Lbs. / 455 Kgs.
Size of Webbing: 1 3/4 Inches
Overall Width: 2.37 Inches
Overall Height: 1.2 Inches
Overall Length: 6.25 Inches
Weight: 0.76 Lbs. / 0.34 Kgs.

Specifications

Country of Origin:	China
Breaking Strength (kgs):	1361
Breaking Strength (lbs):	3000
Finish:	Stainless Steel
Color:	Silver
Positive Lock Mechanism:	Standard - Ensures Overcenter Buckle will remain closed when under load.
PROPOSITION 65:	No
Material:	Heat Treated Carbon Steel
Size of Webbing used with (inches):	1.7
Overall Height (inches):	1.2
Overall Length (inches):	6.2
Overall Width (inches):	2.3
Specification Met:	WSTDA-T-1 (Web Sling Tie-Down Association-T-1)
Shipping Days:	3-5
Note for Breaking Strength (added as a warning 1):	notes-all-overcernter-buckles-assembly-rating
Weight (kgs):	31
UPC Code:	52474003841
Weight (lbs):	0.7
Working Load Limit (kgs):	454
Working Load Limit (lbs):	1000
Used in Kinedyne Product:	15407, 15407-1

Packaging

Skid - GTIN:	20052474003845
Skid - Standard Pack Quantity:	10
Skid - Unit Quantity:	660
Standard Pack - GTIN:	10052474003848
Standard Pack - Unit Quantity:	66
Unit Packaging:	Individual

Notices & Warnings

Warning English:	TENSIONING OF CARGO CONTROL EQUIPMENT - To avoid over tensioning, always select and use Kinedyne specified equipment to tighten our products. Equipment compatibility is described in this catalog. This equipment has been designed to avoid over tensioning. Use of any unspecified leverage increasing device, such as a cheater bar, can generate enough force to break a piece of cargo control equipment during installation, release, or while in transit. The release of energy when a piece of cargo control equipment breaks can cause serious injury or death to you or bystanders. If you are having difficulty securing a load, make sure your cargo control equipment is in working order, or readjust or reposition your load.
Warning French:	LA TENSION DE L’ÉQUIPEMENT D’ARRIMAGE - Pour éviter d’appliquer une tension trop forte, utilisez toujours les outils spécifiés pour tendre nos produits. La compatibilité des équipements est décrite dans ce catalogue. Ces équipements ont été conçus pour éviter la surtension. L’utilisation de tout équipement pour accroitre l’effet de levier, comme une allonge, peut générer suffisamment de force pour briser une pièce d’équipement d’arrimage durant l'installation, le relâchement de cargaison ou même en route. L’énergie libérée par le bris d’une pièce d’équipement d’arrimage sous tension peut provoquer des blessures graves ou même la mort d’un passant ou de vous-même. Si vous éprouvez de la difficulté à arrimer une cargaison, assurez-vous que votre équipement d’arrimage est en bon état de fonctionnement, ou encore réajustez ou repositionnez votre cargaison.
Warning Spanish:	TENSIONANDO EL EQUIPO DE CONTROL DE CARGA - Para evitar la tensión excesiva, siempre seleccione y utilice equipos especificados por Kinedyne para ajustar nuestros productos. La compatibilidad de equipo esta descrita en este catálogo. Estos equipos fueron diseñados para evitar el exceso de tensión. El uso de cualquier dispositivo de apalancamiento no especificado, tal como una barra de extensión, puede generar la fuerza suficiente para romper alguna pieza del equipo de control de carga durante la instalación, liberación, omientras está en tránsito. La energía liberada cuando una pieza del equipo de control de carga se rompe, puede causar serias lesiones e incluso la muerte a usted o a cualquier persona alrededor. Si se presentan dificultades al momento de asegurar la carga, se debe verificar que el equipo de control de carga, esté funcionando correctamente, o bien, se debe reposicionar la carga.
