Kinedyne 1 3/4" Forged Snap Hook w/ PIA Number

Kinedyne 1 3/4" Forged Snap Hook w/ PIA Number PS22042-1

Product Code:

31417

UPC Code:

52474001991

Have Questions?

Fill out the form below

For the ideal tie down assembly, you'll want to equip your strap with our strong and durable 1 3/4" Forged Snap Hook with a working load limit of 1,670 Lbs. / 751 Kgs.

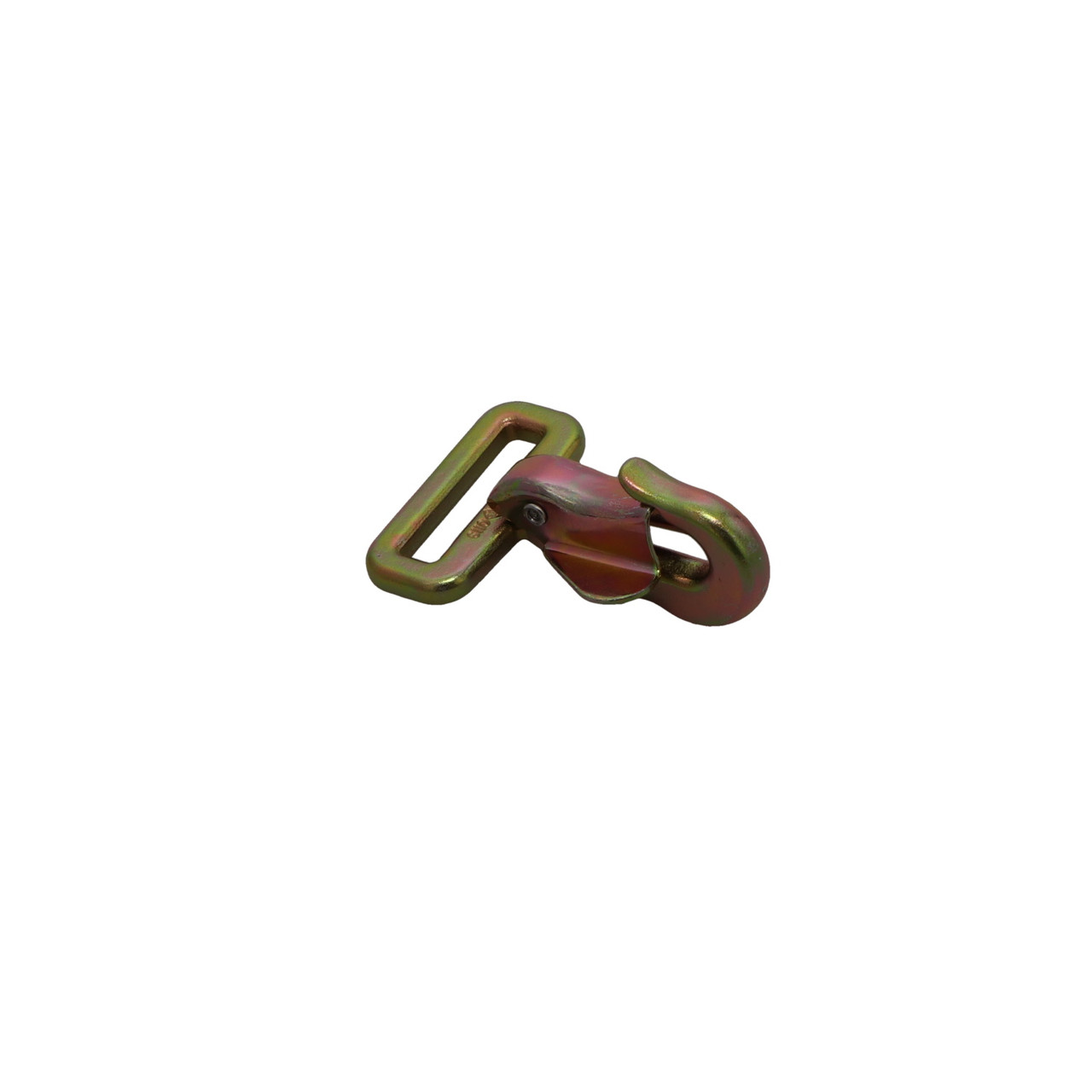

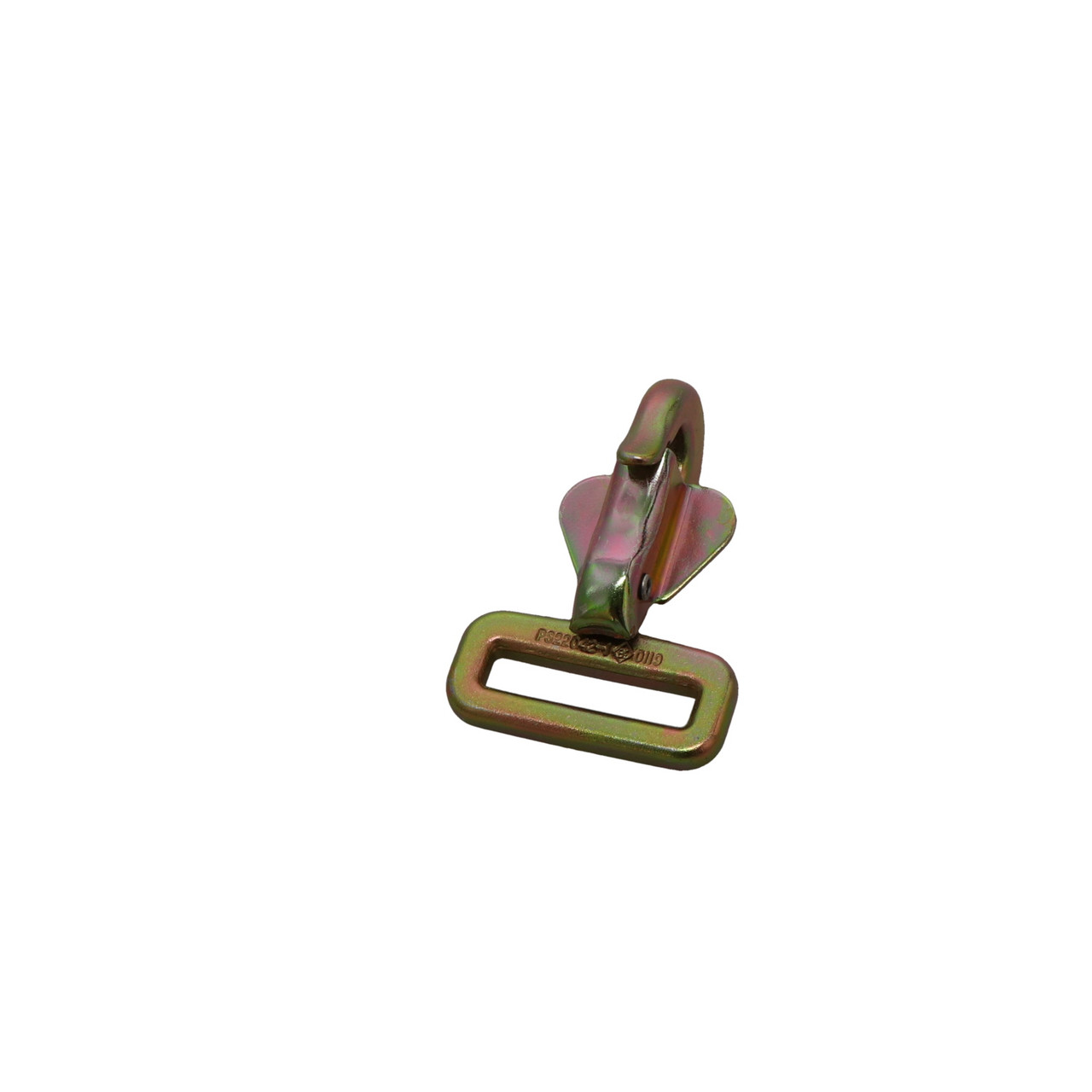

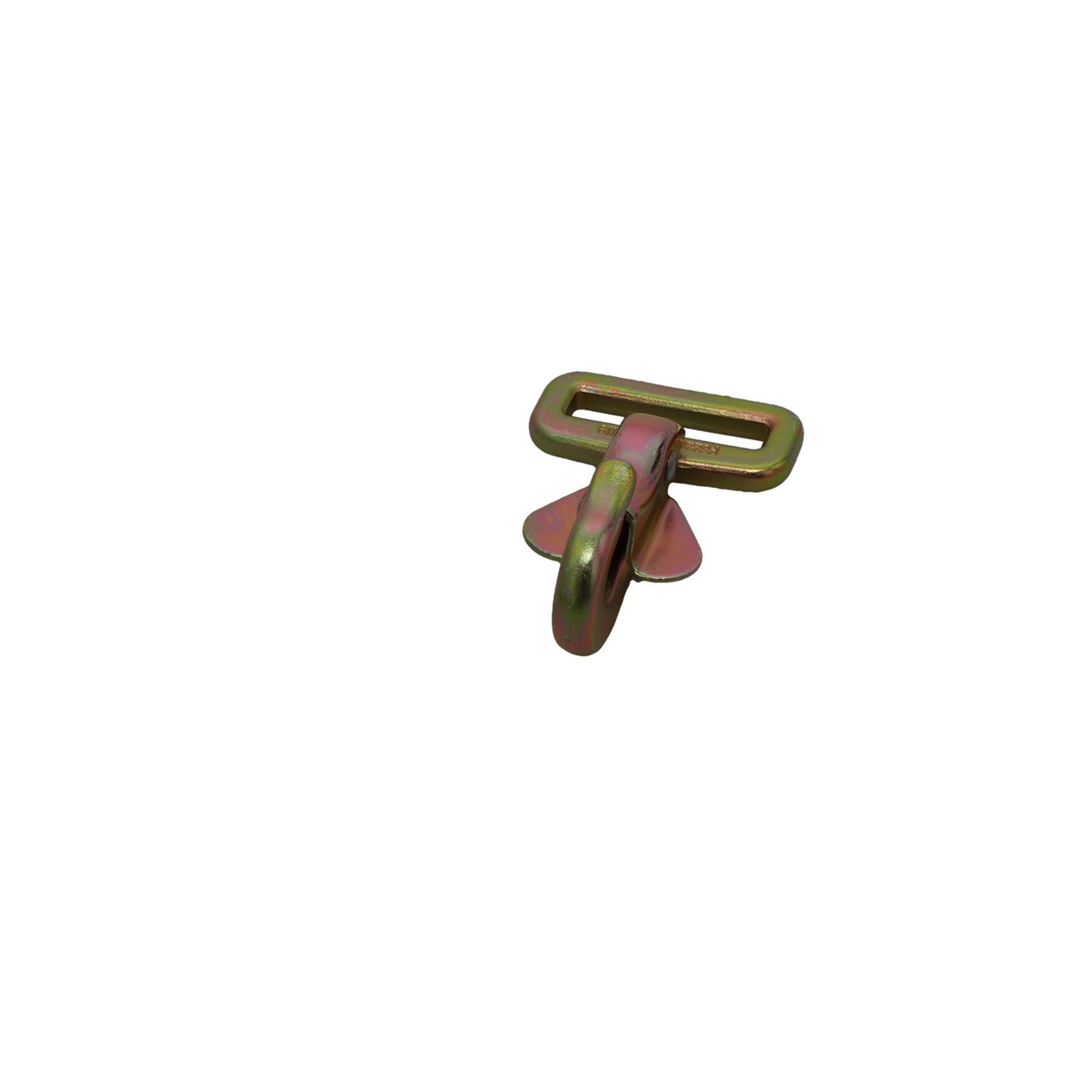

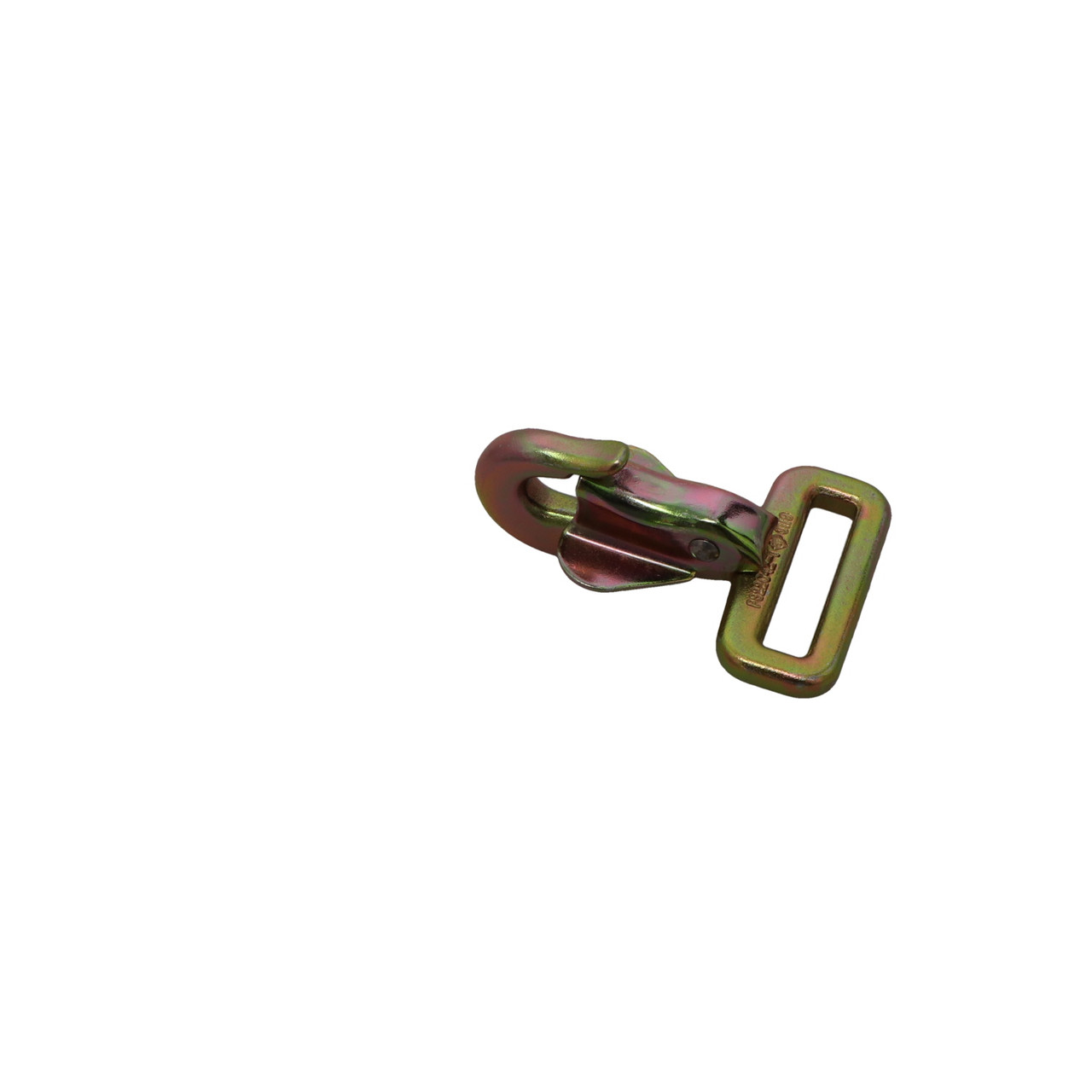

1 3/4-Inch Forged Snap Hook

When you are securing some important cargo, this thick 1 3/4-inch Forged Snap Hook is strong enough to keep a steady and sturdy grip on your project, making it the ideal addition to your tie down assembly. The Snap Hook is equipped with a reliable latch that makes connecting and disconnecting the hook from the anchor point much easier and quicker. Our Forged Snap Hook is constructed from heat-treated carbon steel for extra strength and coated in a zinc plated finish for extra durability. This Forged Snap Hook has a PIA (Parachute Industry Association) Number of PS22042-1.

1 3/4" Forged Snap Hook w/ PIA Number PS22042-1 – 31417 Quick Specs:

Working Load Limit: 1,670 Lbs. / 751 Kgs.
Size of Webbing: 1 3/4 Inches
Overall Width: 2.4 Inches
Overall Height: 1.6 Inches
Overall Length: 3.56 Inches
Thickness: 0.37 Inch
Type of Snap Hook: Forged Snap Hook
Width of Webbing Slot: 1.75 Inches
Width of Hook: 1.62 Inches
Hook Opening Width: 0.5 Inch
Weight: 0.36 Lbs. / 0.16 Kgs.

Specifications

Country of Origin:	China
Breaking Strength (kgs):	2268
Breaking Strength (lbs):	5000
Eye-Hole Snap Hook:	False
Finish:	Zinc Plated
Hook Opening Width (inches):	0.5
Flat Snap Hook:	False
Forged Snap Hook:	True
Color:	Gold Chromate
PROPOSITION 65:	No
Material:	Heat Treated Carbon Steel
Material Thickness (inches):	0.3
Size of Webbing used with (inches):	1.7
Overall Height (inches):	1.6
Overall Length (inches):	3.5
Overall Width (inches):	2.4
Specification Met:	WSTDA-T-1 (Web Sling Tie-Down Association-T-1)
PIA (Parachute Industry Association):	PIA-PS22042-1
Shipping Days:	3-5
Width of Hook (inches):	1.6
Width of Webbing Slot (inches):	1.7
Note for Breaking Strength (added as a warning 1):	notes-all-snap-hooks-assembly-rating
Weight (kgs):	13
UPC Code:	52474001991
Weight (lbs):	0.3
Working Load Limit (kgs):	757
Working Load Limit (lbs):	1670
Twisted Snap Hook:	False

Packaging

Skid - GTIN:	20052474001995
Skid - Standard Pack Quantity:	200
Skid - Unit Quantity:	200
Standard Pack - GTIN:	10052474001998
Standard Pack - Unit Quantity:	1
Unit Packaging:	Individual

Notices & Warnings

Warning English:	TENSIONING OF CARGO CONTROL EQUIPMENT - To avoid over tensioning, always select and use Kinedyne specified equipment to tighten our products. Equipment compatibility is described in this catalog. This equipment has been designed to avoid over tensioning. Use of any unspecified leverage increasing device, such as a cheater bar, can generate enough force to break a piece of cargo control equipment during installation, release, or while in transit. The release of energy when a piece of cargo control equipment breaks can cause serious injury or death to you or bystanders. If you are having difficulty securing a load, make sure your cargo control equipment is in working order, or readjust or reposition your load.
Warning French:	LA TENSION DE L’ÉQUIPEMENT D’ARRIMAGE - Pour éviter d’appliquer une tension trop forte, utilisez toujours les outils spécifiés pour tendre nos produits. La compatibilité des équipements est décrite dans ce catalogue. Ces équipements ont été conçus pour éviter la surtension. L’utilisation de tout équipement pour accroitre l’effet de levier, comme une allonge, peut générer suffisamment de force pour briser une pièce d’équipement d’arrimage durant l'installation, le relâchement de cargaison ou même en route. L’énergie libérée par le bris d’une pièce d’équipement d’arrimage sous tension peut provoquer des blessures graves ou même la mort d’un passant ou de vous-même. Si vous éprouvez de la difficulté à arrimer une cargaison, assurez-vous que votre équipement d’arrimage est en bon état de fonctionnement, ou encore réajustez ou repositionnez votre cargaison.
Warning Spanish:	TENSIONANDO EL EQUIPO DE CONTROL DE CARGA - Para evitar la tensión excesiva, siempre seleccione y utilice equipos especificados por Kinedyne para ajustar nuestros productos. La compatibilidad de equipo esta descrita en este catálogo. Estos equipos fueron diseñados para evitar el exceso de tensión. El uso de cualquier dispositivo de apalancamiento no especificado, tal como una barra de extensión, puede generar la fuerza suficiente para romper alguna pieza del equipo de control de carga durante la instalación, liberación, omientras está en tránsito. La energía liberada cuando una pieza del equipo de control de carga se rompe, puede causar serias lesiones e incluso la muerte a usted o a cualquier persona alrededor. Si se presentan dificultades al momento de asegurar la carga, se debe verificar que el equipo de control de carga, esté funcionando correctamente, o bien, se debe reposicionar la carga.
