Compare Colors

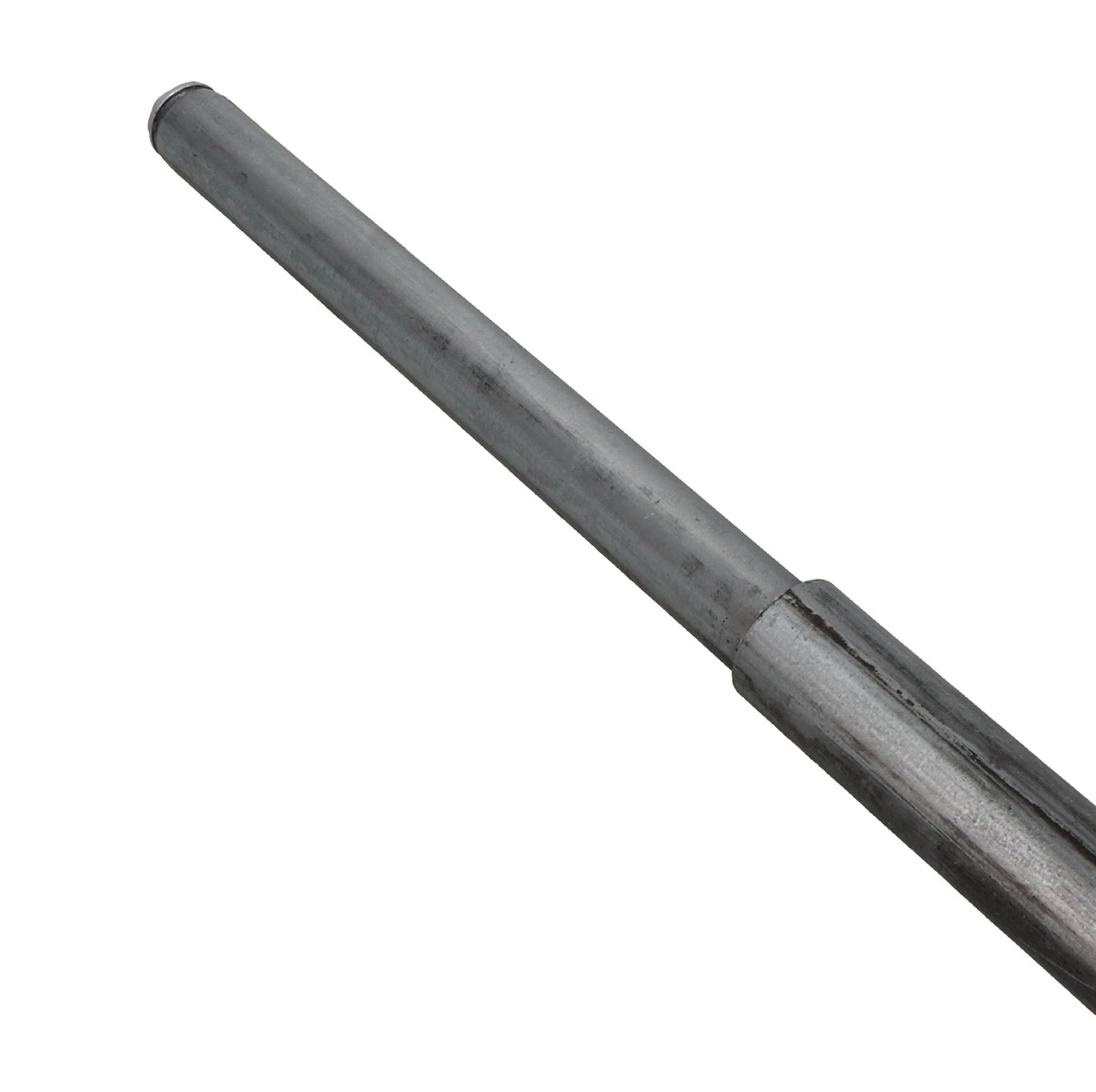

79" - 93" Series F 1" Round Shoring Bar

Product Code:
1816-1C
UPC Code:
52474004947

Have Questions?

Fill out the form below

If you need help organizing your trailer, Kinedyne is offering our Series F 1" Round Shoring Bar with Push Button mechanism that adjusts from 79" to 93" to help you divide up your loads.

79-Inch to 93-Inch Series F 1-Inch Round Shoring Bar

Do your boxes keep toppling over when you hit a bump? Do your pallets keep knocking into each other when you take a sharp turn? Do your cabinets keep opening up so that their contents can spill out when you hit the brakes? You can use our Series F 1-Inch Round Shoring Bar with Push Button mechanism that can adjust from 79" to 93" to prevent this all from happening.

All you need to do is insert the Bar into the Series F Track anywhere you need to securely hold your load in place. It's really that simple. This galvanized steel Bar can handle a Shoring and Vertical working load limit of 500 Lbs. / 230 Kgs., making it the sturdy, solid choice for securing your cargo.

For trailers carrying mixed loads, the Series F 1-Inch Round Shoring Bar with Push Button mechanism can be used to separate your different cargo into sections for easier recovery. Now you won't have to continuously shift through different packages or loads to find the one that needs to be unloaded.

79" - 93" Series F 1" Round Shoring Bar – 1816-1C Quick Specs:

  • Series Type: Series F Canada
  • Shoring Working Load Limit: 500 Lbs. / 230 Kgs.
  • Vertical Working Load Limit: 500 Lbs. / 230 Kgs.
  • Type of Bar End Fitting: Series F Round Pin 1 Inch (Canadian Applications)
  • Shape of Bar: Round
  • Tube Width: 1.66 Inches
  • Tube Height: 1.66 Inches
  • Minimum Length: 79 Inches
  • Maximum Length: 93 Inches
  • Weight: 16.08 Lbs. / 7.29 Kgs.
